| JETWAY® Mini ITX Boards |
| Model |
Features |

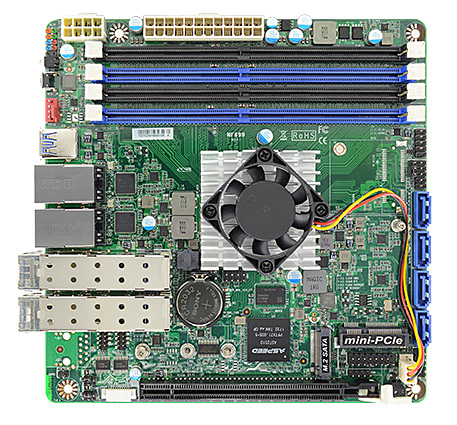

NF699-C3758 |
- Intel® Atom™ C3758 8-Core Denverton Processor
- Long-Life Embedded Class with Planned Lifecycle Through Q3'2032
- 2 * Intel Gigabit LAN + 4 * Intel 10GbE SFP+ Fiber Ports
- Supports Intel QuickAssist Technology
- 4 * 288-pin RDIMM REG/ECC up to 256GB or UDIMM up to 64GB
- ECO-design for EuP/ErP
More details >> |
|

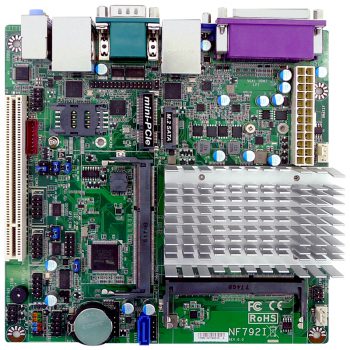

NF792I_3160 |
- Intel® Celeron N3160 SoC Processor (TDP 6W)
- 2 * 204-pin Dual-channel DDR3L 1600MHz SODIMM Up to 8 GB
- 2* 10/100/1000 Base-TX Ethernet Ports
- Support Intel AES NI and TPM (option) to secure customers’ data
- 4 * COM, 3 * USB3.0 & 5 * USB2.0, 1 * HDMI, 1 * VGA, 1 * M.2 (M-key, 2242/2280)
- 1 * PCI slot, 1* Mini PCIe slot (1* full size), 1 * SIM card holder
More details >> |
|

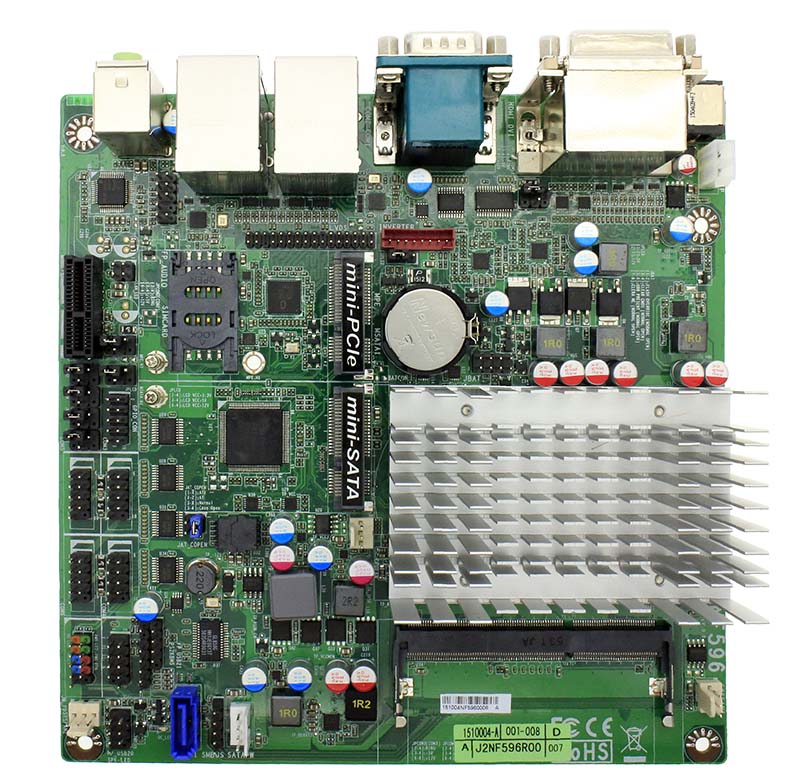

NF596-3160 |
- Intel® Braswell –N3160 Processor
- 1 * DDR3L 1600MHz SO-DIMM up to 8GB
- Support DVI-D, HDMI, LVDS 3 Independent Display
- Realtek RTL8111G PCIe GbE, 2 * RJ45 ports
- Support 1 * Serial ATAIII (6Gb/s),1 * Full size mSATA
- 1 * RS232/422/485(COM1), 5 * COM (RS232)
- 4 * External USB3.0 & 3 * Internal USB1.1/2.0
- 1 * PCIe x1 slot, 1 * Full size mPCIe
- 1 * SIM Card Holder
- Integrated Realtek ALC662VD Audio CODEC with 4-CH
- Mini-ITX Form Factor (170mm * 170mm)
More details >> |
|
NF9N-2930 |
- Intel® Baytrail-M/D/I Processor
- Supports Dual Channel DDR3L 1333/1066 MHz, 2 × SO-DIMM, up to 8GB system memory
- 1 × VGA, 1 × HDMI, 1 × LVDS
- 1 × USB 3.0, 7 × USB 2.0, 2 × SATAII
- 1 × mini-PCIe, 1 × PCIe × 1 slot, 1 × mSATA
- Gigabit LAN : 1 × LAN
- Support CPU Over-Temperature protection
- Support CPU Over-Current/Under Voltage protection
- Support DRAM Over-Current/Under Voltage protection
- Support CPU Smart Fan
- Support DC Fan
More details >> |
|
NF9HG
|
- Intel® Baytrail-M/D/I Processor
- Integrated Intel® Gen7 Intel® Graphics DX 11*, OGL3.0
- Supports Single Channel DDR3L 1333 MHz, 2 × SO-DIMM, up to 8GB system memory
- Gigabit LAN : 4 × Intel LAN
- TPM by option
- On board SIM card holder for supporting 3G/4G module
- 1 × internal VGA port
- 1 × USB 3.0, 1 × USB 2.0
- 1 × mini-PCIe, 1 × mSATA, 2 × PCIex1
- 3G module with SIM card slot
- Support CPU Over-Temperature protection
- Support CPU Over-Current/Under Voltage protection
- Support DRAM Over-Current/Under Voltage protection
More details >> |
|
NC9KDL-2550 |
- Intel® Cedar Trail-D Processor D2550 + NM10 Chipset
- Support 2 × DDR3 800/1067MHz Single CH up to 4GB
- Support DirectX 9 Graphics
- Support 2 × Serial ATAII (3Gb/s) Devices
- Integrated Realtek ALC662 HD Audio CODEC with 6-CH
- 1 × 24 bits Single Channel LVDS header
- Supports 2 × Realtek RT8111EVL Gigabit LAN
- Support Watch dog Technology
- Support CPU Smart FAN
- Compliance with ErP standard
More details >> |
|
NC9NDL-2550 |
- Intel® Cedar Trail-D Processor D2550 + NM10 Chipset
- Support 2 × DDR3 800/1067MHz Single CH up to 4GB
- Support DirectX 9 Graphics
- Support 2 × Serial ATAII (3Gb/s) Devices
- Integrated Realtek ALC662 HD Audio CODEC with 6-CH
- 1 × 24 bits Single Channel LVDS header
- Supports 2 × Realtek RT8111EVL Gigabit LAN
- Support 6 × COM ports (COM2 for RS232/422/485)
- Support Watch dog Technology
- Support CPU Smart FAN
- Compliance with ErP standard
More details >> |
|
NC9R-1037 |
- Intel® Celeron 1037U 1.8GHz Dual-Core Processor (17W)
- Intel® NM70 Express Chipset
- Intel® HD 2000 Graphics, DirectX 10.1
- Dual Independent Displays
- HDMI, DVI, VGA, LVDS Video Outputs
- Supports DDR3-1333 SODIMM up to 16GB
- 1 × SATA3 6Gb/s, 3 SATA2 3Gb/s Ports
- Gigabit LAN, 5.1 Channel HD Audio
- PCI Express 2.0 x16 Slot
- PCI Express Mini Card Slot (half-size)
- Compatible with Linux, Windows XP, 7, 8
More details >> |
|
NF99FL-525 |
- Intel® Atom Processor D525 + ICH9R Chipset
- Support Intel® Atom Processor D525 (Dual Core) CPU
- Support Single Channel DDR3 800
- Support CPU Smart FAN
- Integrated LVDS support 18-bit Single Channel
- Supports 2 x Intel Gigabit LAN
- Supports ACPI S3 Function
- Support Watch dog Technology
More details >> |
|
JNF9C-2800 |
- Processor N2600 / N2800 + NM10 Chipset
- 2 × DDR3 1066MHz Single CH SO-DIMM up to 4GB(N2800)
- Support DirectX 9 Graphics up to 640MHz
- Support 1 × Serial ATAII (3Gb/s) & 2 × Serial ATAIII (6Gb/s) Devices
- Integrated Realtek ALC662 HD Audio CODEC with 2-CH
- Integrated 18-bits Single CH & 24-bits Dual CH LVDS
- Supports 1 × Realtek RT8111EVL Gigabit LAN
- Supports ACPI S3 Function
- Support CPU Smart FAN
- Support Watch dog Technology
- Mini-ITX Form Factor(17cm x 17cm)
- Slim & Fanless design, within 2cm height
More details >> |
|
NF796-Q370 |
- 8th / 9th Gen Intel® Core i7 / i5 / i3 / Pentium Processor
- Long-Life Embedded Class with Planned Lifecycle Through Q2'2033
- Supports DDR4-2666 SODIMM up to 32GB Total
- 2 * Intel Gigabit LAN, 6 * COM, 12 * USB
- Supports 3 Displays DP, HDMI, VGA, LVDS
- ECO-design for EuP/ErP
More details >> |
|
NF693_H110 |
- Intel® LGA1151 Socket Core i3, i5, i7 & Pentium Processors (max. 65W)
- Intel® H110 Express Chipset
- Support Dual Channel DDR4 2133MHz, 2 * SO-DIMM slot, up to 32GB memory
- Realtek ALC662 6-Channel HD Audio
- 2 * Realtek Giga LAN
- Support 2 * SATA 3.0 (6Gb/s), 1 * mPCIe/mSATA and 1 * M.2 M key-2242, 2260
- Support HDMI/DP/eDP, dual displays
- 4 * External RS232 and 2 * internal COM (COM1 supports RS232/422/485)
- 4 * External USB3.0 & 4 * Internal USB1.1/2.0
- 1 * PCIe x16 slot
- 1 * SIM Card Holder
More details >> |
|
NF595_H110 |
- Intel® H110 Express Chipset
- Supports Intel LGA 1151 Socket Core™ i3, i5, i7
Pentium Processors
- 2 * Dual Channel DDR4 2133MHz up to 32GB
- Support Intel i219V GbE LAN
- Support PCIe x1 slot
- 2 * SATAIII (6.0Gb/s)
- HDMI/ DP/LVDS Video Outputs (eDP Options)
- Integrated Realtek ALC662VD Audio Codec
- Built-in Watchdog Timer Technology
- +19V DC-in PWR jack
- Thin Mini-ITX Form Factor (170mm * 170mm)
More details >> |
|

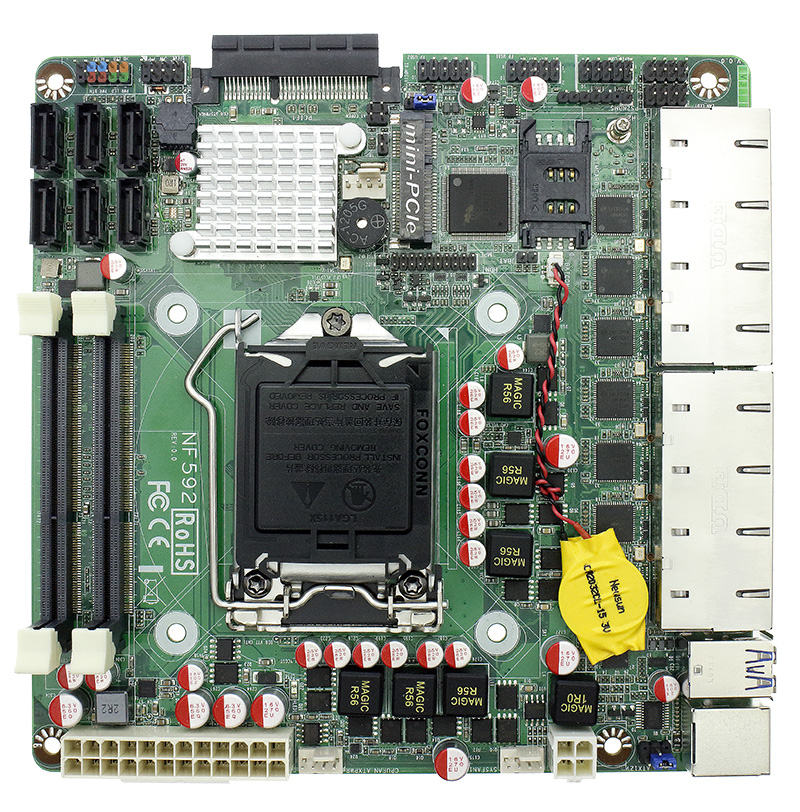

NF592_Q170 |
- Intel® Q170 Express Chipset
- Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors (max 65W)
- Supports Dual Channel DDR3L 1600 MHz, 2 x SO-DIMM, up to 16GB system memory
- 7 * Intel i211AT & 1 * i219LM Gigabit LAN
- Support Intel vPro, Active Management Technology ( iAMT 11.0)
- Side PCI Express x4 Slot
- 6-ports SATA III 6Gb/s support RAID 0, 1, 5, 10
- 3G module with SIM card slot
- 1 * internal HDMI port
- 2 * USB 3.0, 4 x USB 2.0
- 1 * mini-PCIe, 1 x PCIex4
- 1 * Onboard TPM (option)
More details >> |
|
NF594_Q170 |
- Intel® Q170 Express Chipset
- Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
- 2 * Dual Channel DDR4 2133MHz up to 32GB
- 2* GbE LAN (Intel i211AT & i219LM)
- Support Intel vPro, Active Management Technology (iAMT 11.0)
- Integrated Realtek ALC662VD Audio CODEC 6-CH
- Support 1*PCIe x16 slot
- Support 4 * SATAIII (6.0Gb/s), Support RAID 0,1,5,10
- HDMI/DP/DVI-D Video Outputs
- Built-in Watchdog Timer Technology
- Mini-ITX Form Factor (170mm * 170mm)
More details >> |
|

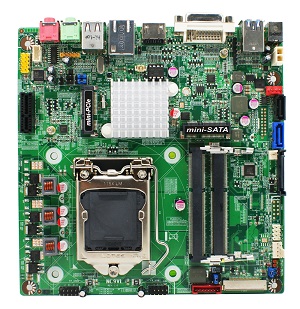

JNC9VL-H81 |
- Intel® H81 Chipset
- Supports Intel LGA 1150 Socket 4th Generation Core™ i3, i5, i7 & Pentium Processors
- 2 × Dual Channel SO-DIMM DDR3-1333/1600 up to 16GB
- 1 × HDMI output
- Support CPU Smart FAN
- Supports 1 × Gigabit LAN
- Supports ACPI S3 Function
- Support Watch dog Technology
- Thin Mini ITX form factor
More details >> |
|
NF9J-Q87 |
- Intel® Q87 Express Chipset
- Supports Intel LGA 1150 Socket Core™ i3, i5, i7 & Pentium Processors
- 2 × Dual Channel DDR3-1600/1333/1066 up to 16GB
- Intel i211AT & I217LM Gigabit LAN
- Intel Active Management Technology ( iAMT 9.0)
- PCI Express x16 Slot
- Integrated 24-bit Dual Channel LVDS
- 5-ports SATA III 6Gb/s with RAID 0, 1, 5, 10 Support
- HDMI, DVI-D and VGA Video Outputs
- Built-in Watchdog Timer Technology
- Mini-ITX Form Factor (170mm x 170mm)
More details >> |
|
| JETWAY® Micro ATX & ATX Boards |

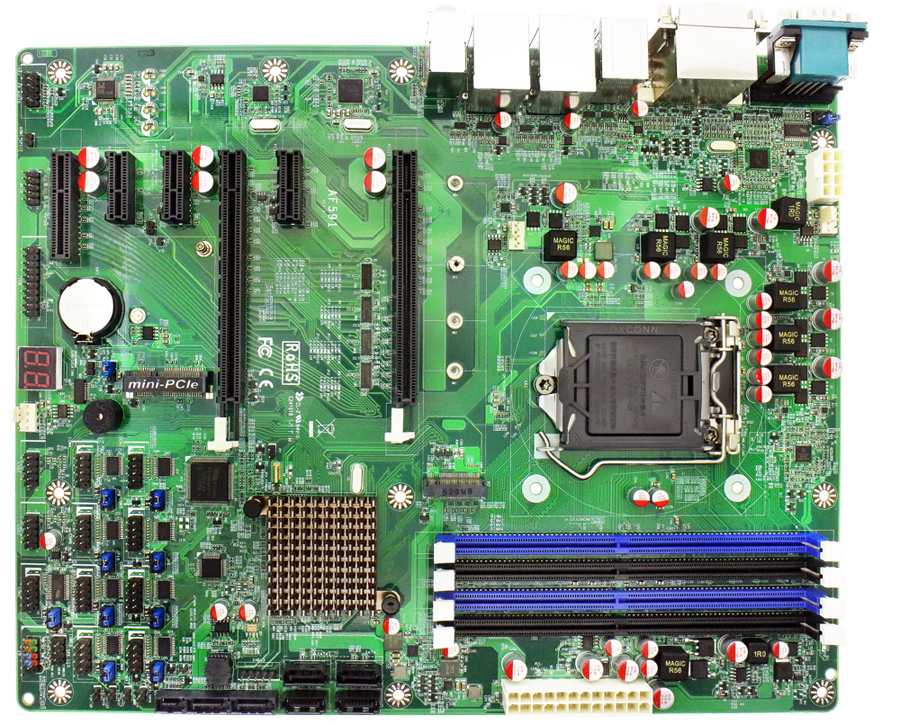

NAF591-Q170
|
- Intel® Q170 Express Chipset
- Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
- Support 4 * 288 pin 2133MHz Dual CH DDR4 SDRAM U-DIMM Max. up to 64GB
- Intel i219LM & i211AT Gigabit LAN
- Support Intel Active Management Technology ( iAMT 11.0)
- Support TPM 2.0 function
- Support CPU Smart FAN
- Supports ACPI S3 Function
- Support Watch dog Technology
- ATX form factor（305mm * 244mm）
More details >> |
|
NAF95-Q87
|
- Intel® Q87 Express Chipset
- Supports Intel LGA 1150 Socket Core™ i3, i5, i7 & Pentium Processors
- Support 4 × 240 pin 8GB 1600/1333/1066 Dual CH DDR3 SDRAM DIMM Max. up to 32GB
- Intel 82574L & I217LM Gigabit LAN
- Intel Active Management Technology ( iAMT 9.0)
- Support TPM 1.2 function
- Support CPU Smart FAN
- Supports ACPI S3 Function
- Support Watch dog Technology
- ATX form factor（305mm x 244mm）
More details >> |
|
NMF95-Q87
|
- Intel® Q87 Express Chipset
- Supports Intel LGA 1150 Socket Core™ i3, i5, i7 & Pentium Processors
- Support 4 × 240 pin 8GB 1600/1333/1066 Dual CH DDR3 SDRAM DIMM Max. up to 32GB
- Intel 82574L & I217LM Gigabit LAN
- Intel Active Management Technology ( iAMT 9.0)
- Support TPM 1.2 function
- Support CPU Smart FAN
- Supports ACPI S3 Function
- Support Watch dog Technology
- mATX form factor（244mm x 244mm）
More details >> |
| JETWAY® PICO ITX & 3.5' SBC |

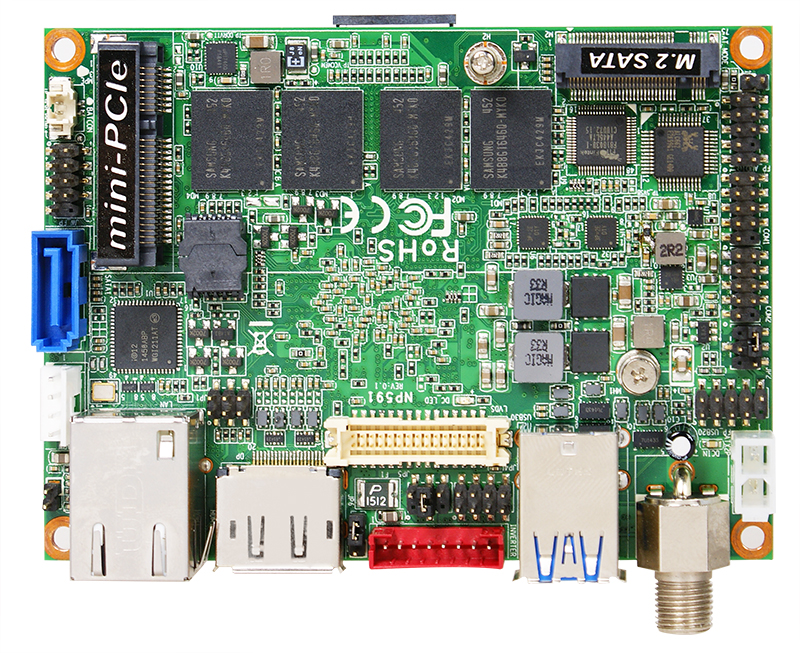

NF591 |
- Intel® Braswell - N3160 2.24GHz
- Support DDR3L 1600MHz Single Channel, Onboard 4GB System Memory (Option 2GB)
- 1 * SATAIII (6Gb/s), 1 * M.2
- Integrated Realtek ALC662VD HD Audio CODEC with 2-CH
- 1 * 24-bits Dual Channel LVDS header
- Support DP1.1 Output (Max. resolution 2560*1600@60Hz)
- Support 1 * Intel® i211AT GbE LAN
- 100 * 72 mm Pico Form Factor
More details >> |
|

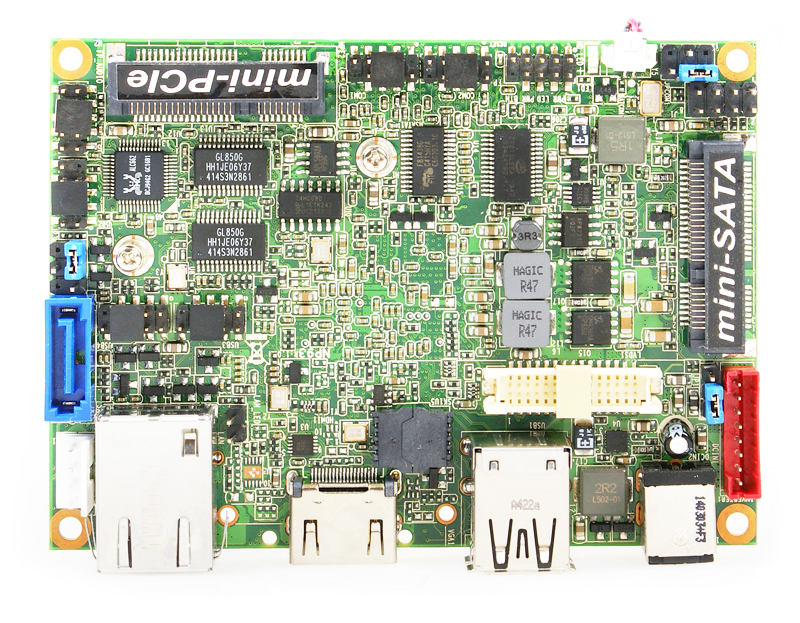

NP93
|
- Intel® Bay Trail N2930 (QC, 1.83G)
- Intel® Bay Trail N2807 (DC, 1.58G)
- Intel® Bay Trail E3827 (DC, 1.75G)
- Support DDR3L 1333MHz Single Channel, Onboard 2GB/4GB System Memory
- Support 1 * Serial ATAII (3Gb/s) Device
- Integrated Realtek ALC662 HD Audio CODEC with 4-CH
- 1 * 24-bits Dual Channel LVDS header
- Support HDMI (option VGA) Output
- Supports 1 * Realtek RT8111G Gigabit LAN
- 100 * 72 mm Pico Form Factor
More details >> |
|

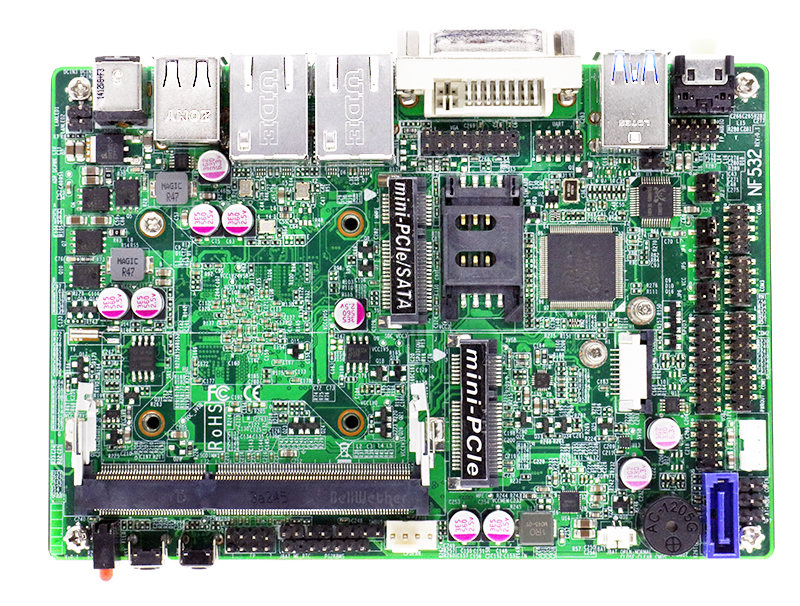

NF532
|
- Intel® Bay Trail D/M/I Processor
- Support 1 * DDR3L 1333/1066MHz Single/Dual CH up to 4GB/8GB
- Support 1 * Serial ATAII (3Gb/s) Device
- Integrated Realtek ALC662 HD Audio CODEC with 2-CH
- 1 * SIM card holder
- Support DVI-D Output
- Supports 2 * Realtek RT8111G PCIe Gigabit LAN
- Support CPU Smart FAN
- Support Watch Dog Timer 0~255 sec
- +9~24V DC-In PWR jack
- Dimension: 148 * 102mm
- 3.5” SBC Form Factor
More details >> |
|

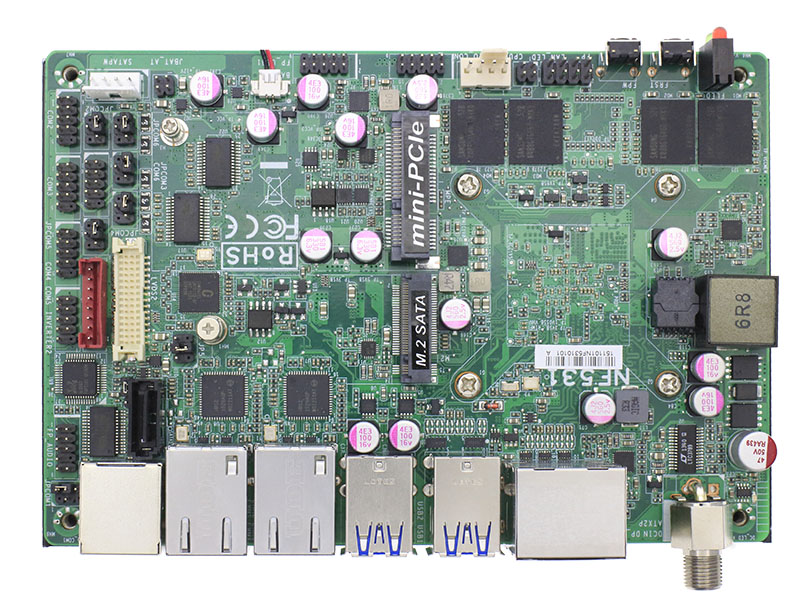

NF531
|
- Intel® Braswell Processor
- Onboard 2 / 4GB ( Default 4G )DDR3L 1600MHz
- Support HDMI, Display Port , LVDS Triple Independent Displays
- Intel i211AT Gigabit LAN, 2 * RJ45 ports
- Integrated Realtek ALC662VD Audio CODEC with 6-CH
- 1 * Serial ATAIII (6Gb/s)
- 1 * External RS232(RJ45 Type) & 5 * Internal COM (COM 2 support RS232/422/485)
- 4 * External USB3.0 & 2 * Internal USB1.1/2.0
- 1 * Full size Mini PCIe , 1 * M.2 ( M key-2242 )
- +9V~+36V Lockable DC-in Jack
- 3.5” SBC Form Factor (148mm * 102mm)
More details >> |
|
| |
|
