Model: NF9N-2930

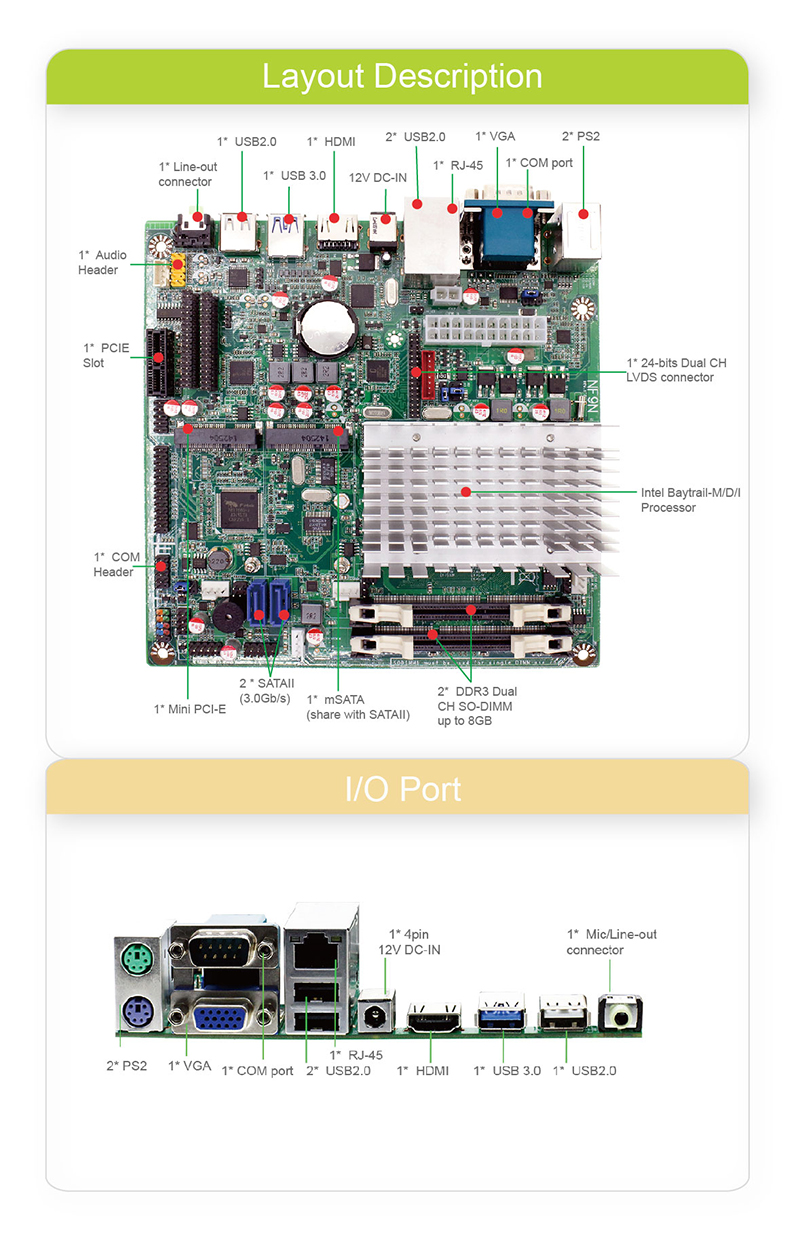

Click to see the enlarged view |
| Features |
- Intel® Baytrail-M/D/I Processor
- Supports Dual Channel DDR3L 1333/1066 MHz, 2 × SO-DIMM, up to 8GB system memory
- 1 × VGA, 1 × HDMI, 1 × LVDS
- 1 × USB 3.0, 7 × USB 2.0, 2 × SATAII
- 1 × mini-PCIe, 1 × PCIe × 1 slot, 1 × mSATA
- Gigabit LAN : 1 × LAN
- Support CPU Over-Temperature protection
- Support CPU Over-Current/Under Voltage protection
- Support DRAM Over-Current/Under Voltage protection
- Support CPU Smart Fan
- Support DC Fan
|
|
Overview
| Form Factor |
| Dimensions |
- Mini-ITX ( 170 × 170mm) |
| Processor System |
| CPU |
- Intel Baytrail-M/D/I Processor |
| Core Number |
- (By CPU) |
| Max Speed |
- (By CPU) |
| L2 Cache |
- (By CPU) |
| Chipset |
- N/A |
| BIOS |
- AMI 64Mb Flash ROM |
| Expansion Slot |
| PCI |
- 0 |
| Mini-PCIe |
- 1 |
| mSATA |
- 1 (share with SATA2) |
| PCIe |
- 1 x1 |
| CFast Card Socket |
- 0 |
| CF Card Socket |
- 0 |
| Memory |
| Technology |
- 2 × Dual Channel DDR3L 1333/1066 MHz |
| Max. |
- 8GB |
| Socket |
- 2 × DDR3 SO-DIMM |
| Graphics |
| Controller |
- Intel® HD Graphics |
| VRAM |
- Shared Memory |
| VGA |
- 1 |
| LVDS |
- 1 |
| HDMI |
- 1 |
| DVI |
- 0 |
| DisplayPort |
- 0 |
| MultiDisplay |
- Yes (Dual Display) |
| Ethernet |
| Ethernet |
- 10/100/1000 Mbps |
| Controller |
- GbE LAN: Intel I211AT |
| Connector |
- 1 × RJ 45 |
| SATA |
| Max Data Transfer Rate |
- 2 × SATAII (3.0Gb/s) |
| Rear I/O |
| VGA |
- 1 |
| DVI |
- 0 |
| HDMI |
- 1 |
| DisplayPort |
- 0 |
| Ethernet |
- 1 |
| USB |
- 4 (3 × USB 2.0 + 1 × USB3.0) |
| Audio |
- 1 (Line-out) |
| Serial |
- 1 |
| eSATA |
- 0 |
| PS2 |
- 2 |
| DC-input |
- 1 (12V DC-in JACK) |
| Internal Connector |
| USB |
- 4 ( 4 × USB 2.0 ) |
| PS2 |
- 0 |
| LVDS / inverter |
- 1 |
| VGA |
- 0 |
| Serial (COM) |
- 1 |
| SATA |
- 2 × SATAII (3.0Gb/s) |
| mPCIe |
- 1 |
| Parallel |
- 1 |
| mSATA |
- 1 (share with SATA2) |
| CIR |
- 0 |
| GPIO 8-bit |
- 4in / 4 out |
| Chassis intrusion |
- 1 (via 2pin header) |
| Audio Header |
- 1 |
| Watchdog Timer |
| Output |
- From Super I/O to drag RESETCON# |
| Interval |
- 256 segments, 0,1,2…255sec/min |
| Power Requirements |
| Input PWR |
- 12V DC-In |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready |
| Certifications |
| Certifications |
- CE, FCC, RoHS, REACH |
| Environment |
| Temperature |
- Operating: 0℃– 60℃ |
| - Storage: -20℃– 85℃ |
| Form Factor |
| Dimensions |
- Mini-ITX ( 170 × 170mm) |
| Processor System |
| CPU |
- Intel Baytrail-M/D/I Processor |
| Core Number |
- (By CPU) |
| Max Speed |
- (By CPU) |
| L2 Cache |
- (By CPU) |
| Chipset |
- N/A |
| BIOS |
- AMI 64Mb Flash ROM |
| Expansion Slot |
| PCI |
- 0 |
| Mini-PCIe |
- 1 |
| mSATA |
- 1 (share with SATA2) |
| PCIe |
- 1 x1 |
| CFast Card Socket |
- 0 |
| CF Card Socket |
- 0 |
| Memory |
| Technology |
- 2 × Dual Channel DDR3L 1333/1066 MHz |
| Max. |
- 8GB |
| Socket |
- 2 × DDR3 SO-DIMM |
| Graphics |
| Controller |
- Intel® HD Graphics |
| VRAM |
- Shared Memory |
| VGA |
- 1 |
| LVDS |
- 1 |
| HDMI |
- 1 |
| DVI |
- 0 |
| DisplayPort |
- 0 |
| MultiDisplay |
- Yes (Dual Display) |
| Ethernet |
| Ethernet |
- 10/100/1000 Mbps |
| Controller |
- GbE LAN: Intel I211AT |
| Connector |
- 1 × RJ 45 |
| SATA |
| Max Data Transfer Rate |
- 2 × SATAII (3.0Gb/s) |
| Rear I/O |
| VGA |
- 1 |
| DVI |
- 0 |
| HDMI |
- 1 |
| DisplayPort |
- 0 |
| Ethernet |
- 1 |
| USB |
- 4 (3 × USB 2.0 + 1 × USB3.0) |
| Audio |
- 1 (Line-out) |
| Serial |
- 1 |
| eSATA |
- 0 |
| PS2 |
- 2 |
| DC-input |
- 1 (12V DC-in JACK) |
| Internal Connector |
| USB |
- 4 ( 4 × USB 2.0 ) |
| PS2 |
- 0 |
| LVDS / inverter |
- 1 |
| VGA |
- 0 |
| Serial (COM) |
- 1 |
| SATA |
- 2 × SATAII (3.0Gb/s) |
| mPCIe |
- 1 |
| Parallel |
- 1 |
| mSATA |
- 1 (share with SATA2) |
| CIR |
- 0 |
| GPIO 8-bit |
- 4in / 4 out |
| Chassis intrusion |
- 1 (via 2pin header) |
| Audio Header |
- 1 |
| Watchdog Timer |
| Output |
- From Super I/O to drag RESETCON# |
| Interval |
- 256 segments, 0,1,2…255sec/min |
| Power Requirements |
| Input PWR |
- 12V DC-In |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready |
| Certifications |
| Certifications |
- CE, FCC, RoHS, REACH |
| Environment |
| Temperature |
- Operating: 0℃– 60℃ |
| - Storage: -20℃– 85℃ |
| Optional Cards |
| |
JADMPEIDLA Dual LAN connector for Mini PCI-E socket |
| JAD4INLANG Fast four LAN connector. |
|
|
