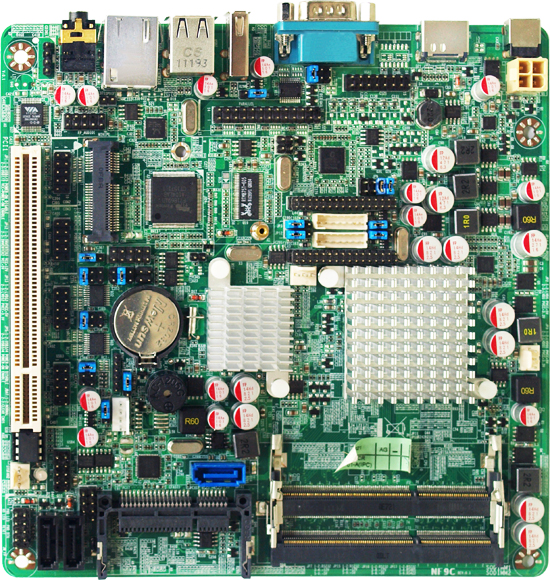

Click to see the enlarged view

Features
  • Processor N2600 / N2800 + NM10 Chipset
  • 2 × DDR3 1066MHz Single CH SO-DIMM up to 4GB(N2800)
  • Support DirectX 9 Graphics up to 640MHz
  • Support 1 × Serial ATAII (3Gb/s) & 2 × Serial ATAIII (6Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • Integrated 18-bits Single CH & 24-bits Dual CH LVDS
  • Supports 1 × Realtek RT8111EVL Gigabit LAN
  • Supports ACPI S3 Function
  • Support CPU Smart FAN
  • Support Watch dog Technology
  • Mini-ITX Form Factor(17cm x 17cm)
  • Slim & Fanless design, within 2cm height

Overview
Model JETWAY NF9C-2800
CPU INTEL® Cedar Trail-M Processor N2600(1.6GHz) / N2800 (1.86GHz)
Chipset INTEL® NM10 Express chipset
Memory 2 × DDR3 1066MHz Single CH SO-DIMM up to 4GB(N2800)
Expansion Slots 1 × PCI slot 1 × MINI PCI-E
Storage 1 × Serial ATAII (3Gb/s) & 2 × Serial ATAIII (6Gb/s) connectors
1 × CFast card socket
Audio Realtek ALC662 2-Channel HD Audio
Ethernet LAN 1 × RTL8111E PCI-EVL Gigabit LAN
LVDS 1 × 18-bits Single CH & 1 × 24-bits Dual CH LVDS connectors
USB Embedded 7 × USB 2.0/1.1
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O 3 × USB 2.0/1.1 ports
1 × RJ-45 port
1 × HDMI port
1 × COM port Line-out connector
1 × 12V DC in
Internal I / O 2 × USB 2.0/1.1 headers for 4 USB 2.0 ports
1 × KB/MS headers
1 × VGA header
NB / Chassis Fan connectors
2 × LVDS headers & 1 × GPIO header & 1 Parallel headers
3 × COM headers ( COM4 for RS232/422/485)
1 × AUDIO header
1 × chassis intrusion header
BIOS AMI 16MB DIP Flash ROM
Form Factor Mini ITX Form Factor (170mm x 170mm)
Functional ATM, Security, Digital Signage, POS, General Application, Transportation
Certificate CE, FCC, RoHS
Temperature Operating within 0~60 centigrade Storage within -20-85 centigrade
Optional Jeway dual LAN connector for Mini PCI-E socket (Model: JADMPEIDLA)
