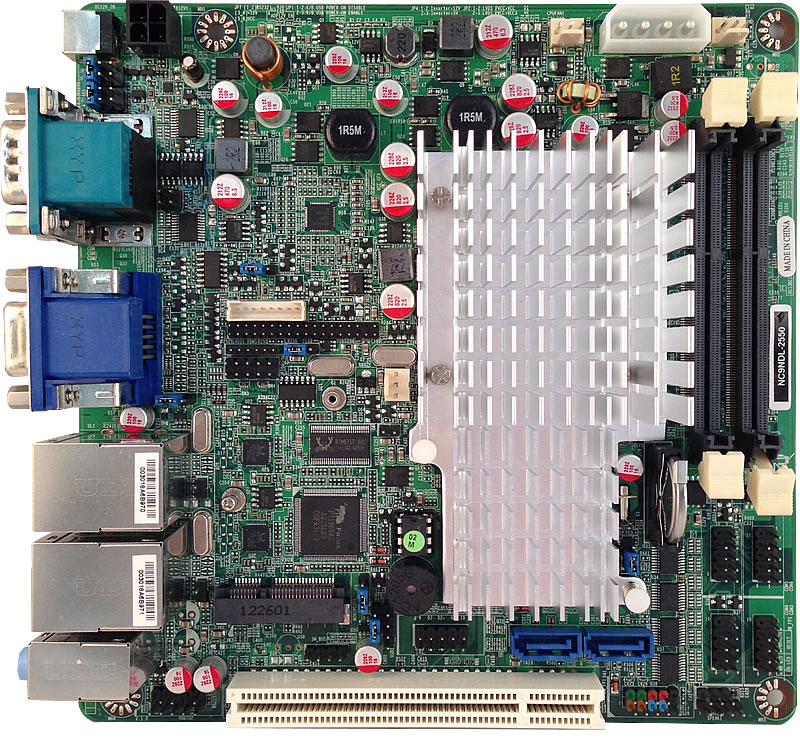

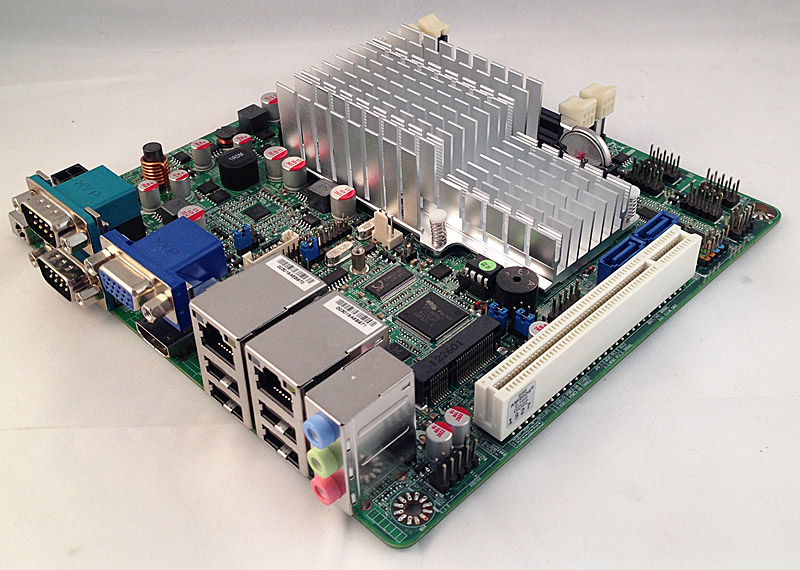

   * Click to see the enlarged view |
|
| Features | |
|
|
| Overview | |
| Model | JETWAY NC9NDL-2550 |
| CPU | Intel® Cedar Trail-D Processor D2550 CPU (1.86GHz) |
| Chipset | Intel® NM10 Express chipset |
| Memory | 2 × DDR3 1067MHz Single CH SO-DIMM up to 4GB |
| Expansion Slots | 1 × PCI slot 1 × Mini PCI-E socket |
| Storage | 2 × Serial ATA2 3Gb/s connectors |
| Audio | Realtek ALC662 6-Channel HD Audio |
| Ethernet LAN | 2 × RTL8111EVL PCI-E Gigabit LAN |
| LVDS | Onboard 24-bits single channel connector |
| USB | Embedded 7 × USB 2.0/1.1 |
| Special Features | Support ACPI S3 Support CPU Smart FAN Support Watch Dog |

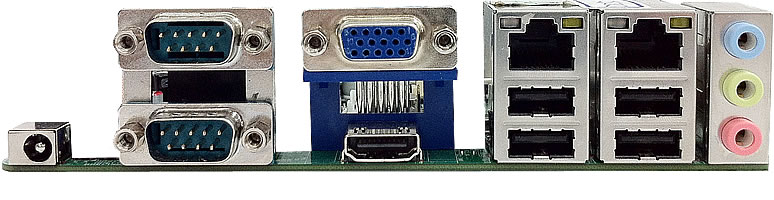

| Rear Panel I/O | 4 × USB 2.0/1.1 ports 2 × RJ-45 port 3 × Audio I/O ports ( Line-in, MIC and Line-out ) 1 × VGA port 1 × HDMI port 2 × COM ports (COM2 for RS232/422/485) 1 × +12V DC-in jack |
| Internal I/O | 2 × USB 2.0/1.1 headers for 3 USB 2.0 ports 1 × PS/2 Mouse & 1 × Keyboard header 2 × NB / Chassis Fan connectors; 1 × LVDS header/1 × Inverter header 1 × AUDIO header 4 × RS232 headers |
| BIOS | AMI 16MB UEFI DIP Flash ROM |
| Functional | ATM, Automation, Medical Equipment, Kiosk, Networking, POS, General Application, Transportation |
| Packing | Color Box Dimension：200(W) x 200(D) x 70(H)mm |
| Certificate | CE, FCC, RoHS |
| Temperature | Operating within 0~40 centigrade (Suggest to use system FAN) Storage within -20-85 centigrade |
| Form Factor | Mini ITX Form Factor(17cmx17cm) |
| Optional |  Jeway dual LAN connector for Mini PCI-E socket (Model: JADMPEIDLA) |
