Form Factor |
Dimensions |
- Mini-ITX (6.7-in * 6.7-in, 170 * 170mm) |
Processor System |
CPU |
- Intel LGA 1151 Socket Core i7 / i5 / i3 & Pentium Processors |
Core Number |
- (By CPU) |
Max Speed |
- (By CPU) |
L2 Cache |
- (By CPU) |
Chipset |
- Intel H110 Chipset |
BIOS |
- AMI 64Mb Flash ROM |
Expansion Slot |
Mini-PCIe |
- 1 (full size, co-lay with mSATA) |
mSATA |
- 1 (full size, co-lay with mini-PCIe) |
M.2 |
- 1 (M key-2242, 2260) |
PCIe |
- 1 * PCIe x16 |
SIM card holder |
- 1 |
Memory |
Technology |
- Dual Channel DDR4 2133MHz |
Max. |
- 32GB |
Socket |
- 2 * SO-DIMM |
Graphics |
Controller |
- Intel® Gen9 Graphics supports DX 11/12, OGL4.3 / 4.4 |
VRAM |
- Shared Memory |
VGA |
- 0 |
DVI-D |
- 0 |
HDMI |
- 1 (Max. Resolution : 3840*2160@24Hz) |
DP |
- 1 (Max. Resolution : 4096*2304@60Hz) |
eDP |
- 1 (Max. Resolution : 4096*2304@60Hz) |
MultiDisplay |
- Dual Display |
Ethernet |
Ethernet |
- 10/100/1000 Mbps |
Controller |
- PCIe GbE LAN : Realtek RTL8111G |
Connector |
- 2 * RJ 45 |
Audio |
CODEC |
- HD Audio : Realtek ALC662 |
Channel |
- 6 Channel |
SATA |
Max Data Transfer Rate |
- 2 * SATAIII (6.0Gb/s), 1 * mini-SATA III and 1 * M.2 |
RAID |
- No |

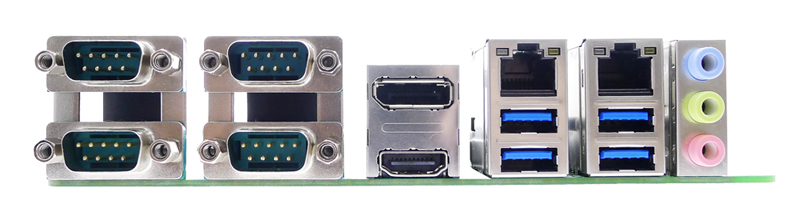

Rear I/O |
VGA |
- 0 |
DP |
- 1 |
HDMI |
- 1 |
Ethernet |
- 2 |
USB |
- 4 * USB 3.0 |
Audio |
- 3 (Line-In, Line-Out, MIC) |
Serial |
- 4 (COM1 support RS232/422/485 ) |
LED |
- 0 |
DC-input |
- 0 |
Internal Connector |
HDMI |
- 0 |
USB |
- 4 * USB 2.0 |
eDP |
- 1 |
Serial |
- 2 (COM5 is optional to support RS232/422/485) |
SATA |
- 2 |
mPCIe |
- 1 (full size, co-lay with mSATA) |
mSATA |
- 1 (full size, co-lay with mPCIe) |
M.2 |
- 1 (M key-2242, 2260) |
SIM card holder |
- 1 |
Chassis intrusion |
- 1 |
PS/2 |
- 1 |
GPIO |
- 1 (8 bit programmable inputs/outputs) |
SMBUS/ I2C |
- 1 |
Audio Header |
- 1 |
TPM |
- 1 (onboard option) |
AT mode |
- 1 |
Watchdog Timer |
Output |
- From Super I/O to drag RESETCON# |
Interval |
- 256 segments (10sec ~ 255min) |
Power Requirements |
Input PWR |
- 24 pin/4 pin ATX PWR Connector |
Power On |
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready |
Certifications |
Certifications |
- CE, FCC, RoHS, REACH |
Environment |
Temperature |
- Operating: 0°C – 60°C |
- Storage: -20°C – 85°C |
