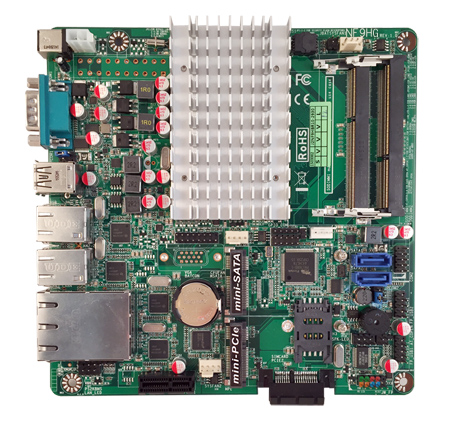

Model: NF9HG
Click to see the enlarged view
|
| Features |
- Intel® Baytrail-M/D/I Processor
- Integrated Intel® Gen7 Intel® Graphics DX 11*, OGL3.0
- Supports Single Channel DDR3L 1333 MHz, 2 × SO-DIMM, up to 8GB system memory
- Gigabit LAN : 4 × Intel LAN
- TPM by option
- On board SIM card holder for supporting 3G/4G module
- 1 × internal VGA port
- 1 × USB 3.0, 1 × USB 2.0
- 1 × mini-PCIe, 1 × mSATA, 2 × PCIex1
- 3G module with SIM card slot
- Support CPU Over-Temperature protection
- Support CPU Over-Current/Under Voltage protection
- Support DRAM Over-Current/Under Voltage protection
|
|
Overview
| Form Factor |
| Dimensions |
- Mini-ITX (6.7-in × 6.7-in, 170 × 170mm) |
| Processor System |
| CPU |
- Intel® Baytrail-M/D/I Processor
- Supports Hyper-Threading Technology |
| Core Number |
- (By CPU) |
| Max Speed |
- (By CPU) |
| L2 Cache |
- (By CPU) |
| Chipset |
- N/A |
| BIOS |
- AMI 64Mb Flash ROM |
| Expansion Slot |
| Mini-PCIe |
- 1 (full size) |
| mSATA |
- 1 share with SATA2 (full size) |
| PCIe |
- 2 (x1) |
| SIM |
- 1 |
| Memory |
| Technology |
- Single Channel DDR3L 1333 MHz SDRAM (By CPU) |
| Max. |
- 8GB |
| Socket |
- 2 × SO-DIMM |
| Graphics |
| Controller |
- Intel® Gen7 Intel® Graphics DX 11*, OGL3.0 |
| VRAM |
- Shared Memory |
| VGA |
- 1 ( Internal ) |
| LVDS |
- 0 |
| HDMI |
- 0 |
| MultiDisplay |
- No |
| Ethernet |
| Ethernet |
- 10/100/1000 Mbps |
| Controller |
- GbE LAN: Intel I211AT |
| Connector |
- 4 × RJ 45 |
| SATA |
| Max Data Transfer Rate |
- 2 × SATAII (3.0Gb/s) (1 share with mSATA) |

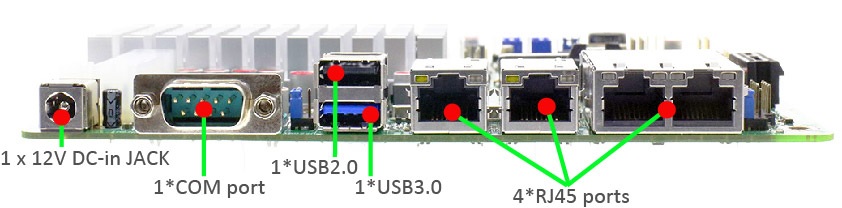

| Rear I/O |
| VGA |
- 0 |
| HDMI |
- 0 |
| Ethernet |
- 4 |
| USB |
- 2 (1 × USB 3.0, 1 × USB 2.0) |
| Audio |
- 0 |
| Serial |
- 1 × RS-232 |
| PS2 |
- 0 |
| DC-input |
- 1 × 12V DC-in JACK |
| Internal Connector |
| USB |
- 4 (4 × USB 2.0) |
| LVDS / inverter |
- 0 |
| Serial |
- 2 (2 × RS-232 with 5V/12V selectable header) |
| SATA |
- 2 |
| mPCIe |
- 1 |
| mSATA |
- 1 |
| Chassis intrusion |
- 1 (via 12pin header) |
| PS2 |
- 1 |
| Audio Header |
- 0 |
| Watchdog Timer |
| Output |
- From Super I/O to drag RESETCON# |
| Interval |
- 256 segments, 0,1,2…255sec/min |
| Power Requirements |
| Input PWR |
- 12V DC-In (2-pin PWR Con) |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready |
| Certifications |
| Certifications |
- CE, FCC, RoHS, REACH |
| Environment |
| Temperature |
- Operating: 0℃– 60℃ |
| - Storage: -20℃– 85℃ |
| Optional Cards |
| |
JADMPEIDLA Dual LAN connector for Mini PCI-E socket. |
|
|
