| Features | |
|
|
| Overview | |

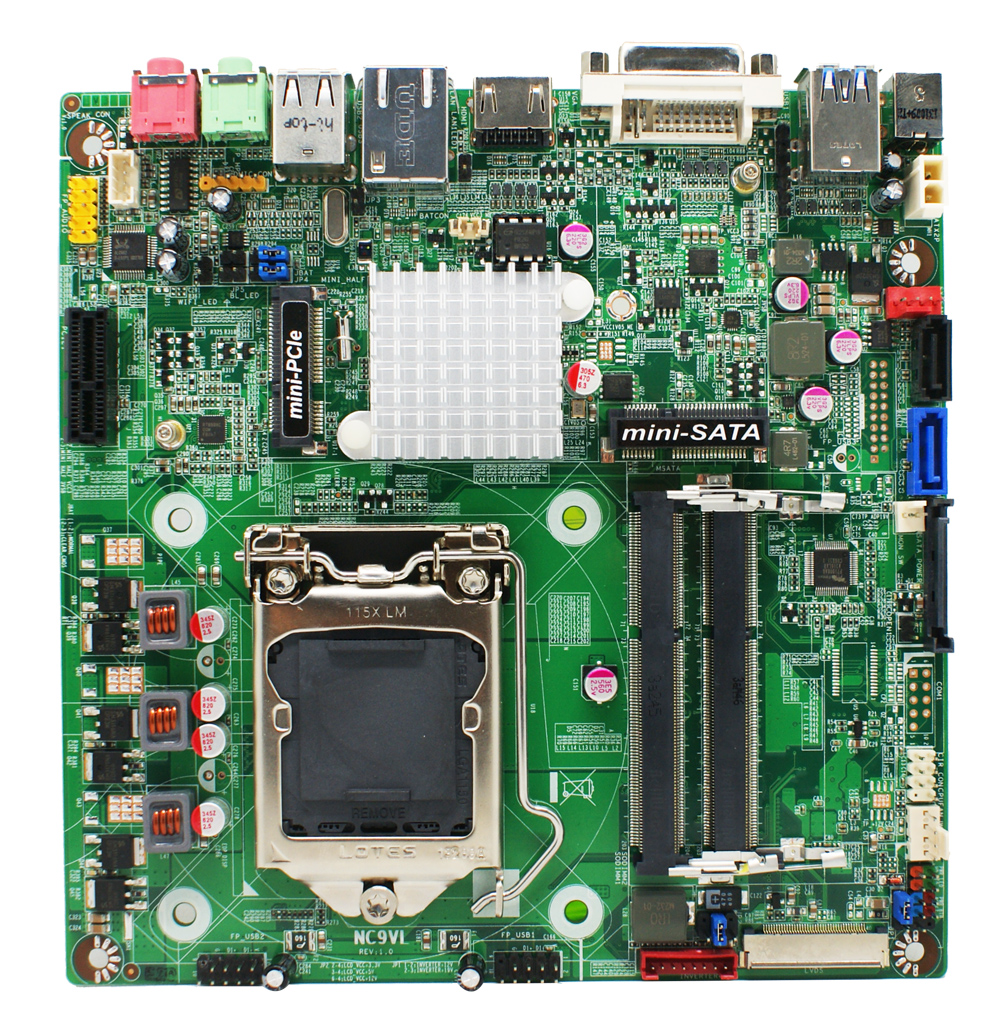

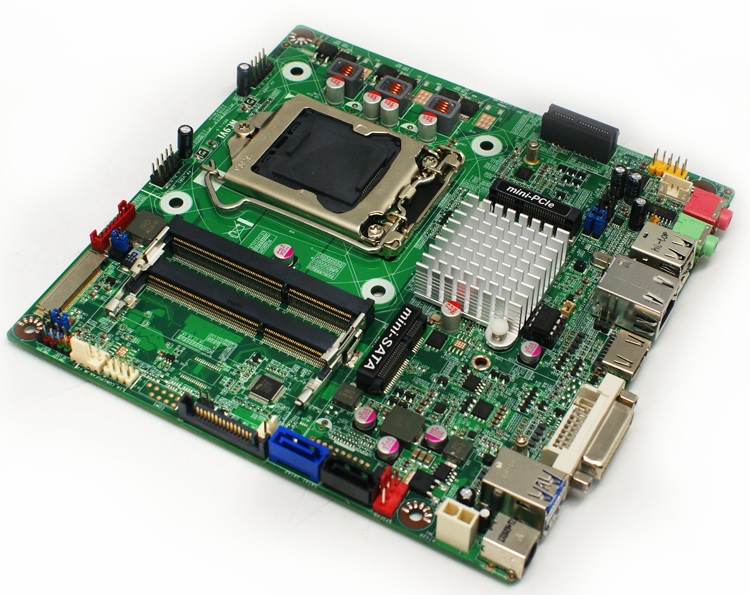

| Model | JETWAY NC9VL-H81 |
| CPU | INTEL® LGA 1150 Socket 4th generation Core i7/i5/i3/Pentium Processor |
| Chipset | INTEL® H81 Chipset |
| Memory | 2 × SO-DIMM Sockets Dual Channel DDR3 1600/1333 SDRAM up to 16 GB |
| Expansion Slots | 1 × PCIe x 1 1 × half size Mini PCI-E socket |
| Storage | 1 × Serial ATA2 3Gb/s & 1 × Serial ATA3 6Gb/s connectors 1 × full size mSATA socket (only mSATA) |
| Audio | Realtek ALC662 6-Channel HD Audio CODEC |
| Ethernet LAN | Intel i217LM Gigabit Ethernet LAN *1 |
| USB | 6 × USB 2.0/1.1 & 2 × USB3.0 |
| Special Features | Support ACPI S3 Support CPU Smart FAN Support Watch Dog |

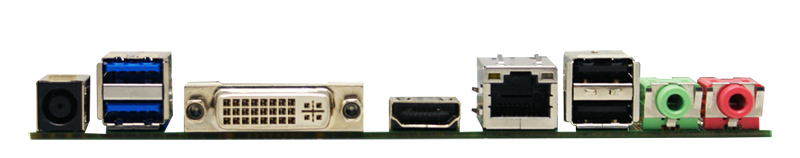

| Rear Panel I / O | 2 × USB 2.0/1.1 & 2 × USB 3.0 ports 1 × HDMI 1 × DVI-I port 1 × 19V DC-in jack 1 × RJ-45 port 1 × MIC-in & 1 × Line-out jacks |
| Internal I / O | 2 × USB 2.0/1.1 headers CPU /System Fan connectors; 1 × PS/2 header 1 × 24-bits Dual CH LVDS & 1 × Inverter connector 1 × CIR header 1 × AUDIO header 1 × Speaker header 1 × DMIC header 1 × Front panel header 1 × FPD Brightness connector 1 × 2-pin ATX Power header 1 × 2-pin open case header |
| BIOS | AMI 64Mb DIP Flash ROM |
| Form Factor | Thin Mini ITX Form Factor (170mm x 170mm) |
| Functional | ATM, POS, AIO, Panel PC, Digital Signage |
| Certificate | CE, FCC, RoHS |
| Temperature | Operating within 0~60 centigrade Storage within -20-85 centigrade |
