Image for display purposes only, click to see the enlarged view.

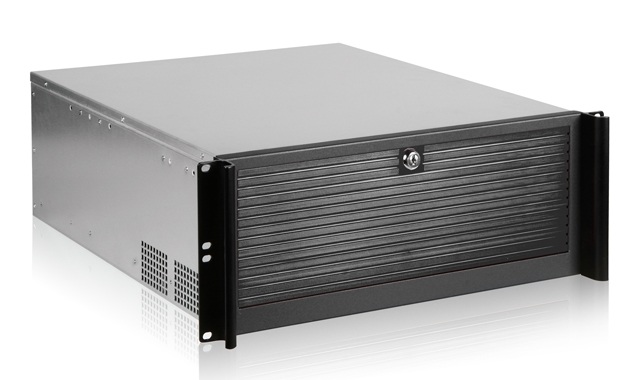

Model: IPC-RK-D416 4U Chassis

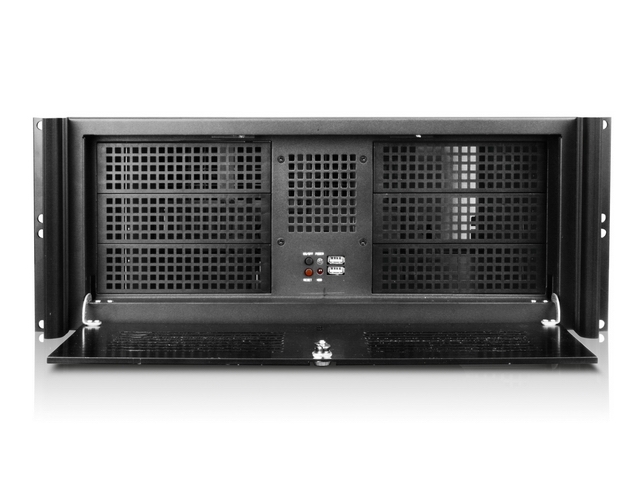

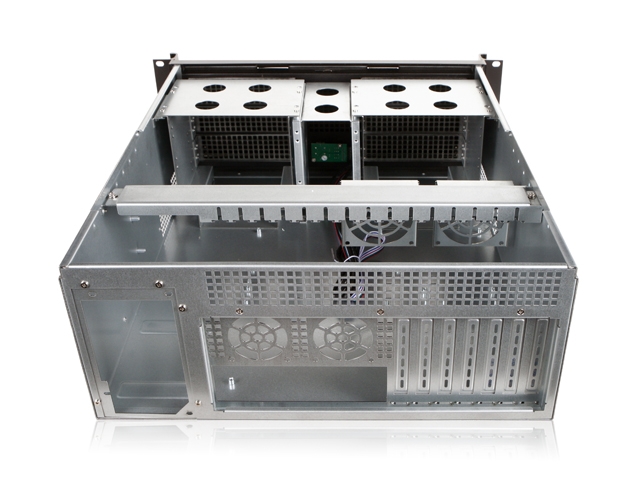

IPC-RK-D416 is a reliable and stable 4U-high server chassis. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is 21" deep and has optional three 80mm cooling fans in the center and two 60mm fans at rear for air ventilation. In addition, D-416 supports a standard ATX PS2 power supply to meet regular server system applications.

    • Supports Front Access USB2.0 × 2
    • Power and HDD LED
    • Power and Reset Switch
    • Support ATX PS2 Power Supply


Model: IPC-RK-D416
Industry Standard: EIA-RS310D
Materials: Heavy-duty preplated SPGC cold-rolled steel
Finish: Front Panel : Texture-coated
(W × D × H)
mm: 483 × 521 × 178
inches: 19.00 × 20.50 × 7.00
Power Supply: 500W~700W ATX/EPS single or redundant power supplies
Rear Window Standard
Security Keylock
Front I/O 2 × USB2.0
Color of bezel Black
Front Bezel Aluminum
Body SECC 1.2mm
Handle Aluminum
Expansion: 7 × PCI slots
Controls: Power on/off, Reset
Indicators: Power on/off, HDD
Cooling: 2 × 80mm (Optional), 2 × 60mm (Optional)
System Board: Up to 12”(W) × 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bay: External 5.25" 6
Internal 3.5" HDD 3
Mounting Options: CLM-882054B: 20" Sliding Rails + Brackets
CLM-882054B-26: 26" Sliding Rails + Brackets
Backplane Module Options SNT-1041SS: 4×2.5" SAS & SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-1060SATA: 6×2.5" SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-2131SS: 3×2.5/3.5" SAS & SATA HDD/SSD in 2×5.25" Bay, hot swappable.
SNT-3141SS: 4×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable.
SNT-3051SS: 5×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable.
