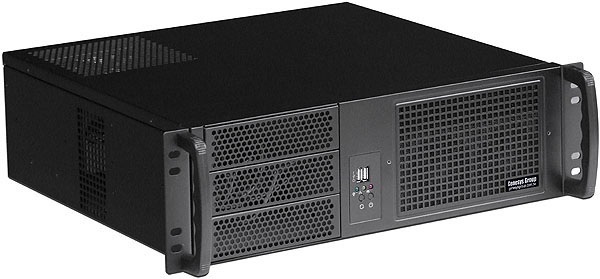

Image for display purposes only
Model: IPC RK338 3U Chassis


Overview

The era of ATX and MicroATX constructed Dual-core and Quad-Core CPU platforms have been the mainstream nowadays, the fast and stable server system is also presented by this model of design, the major feature of this brand new design is the depth of this chassis has 380mm only, it supports the most cost effective and stable quality, combines with two intake 80mm fans at front side as standard and two exhaust 60mm fans at rear panel as option, comes with totally 6 drive bay with the chassis configuration, fits all standard 12" × 9.6" Intel ATX MB form factor and standard PS2 power supply, meets regular server system application.


Specifications
Model: IPC RK338
Dimensions (W × D × H) 19" × 380mm × 3U (14.96" deep)
Cooling: 2 × Sunon 80mmx25mm 2ball fans behind front bezel
Power Supply: Support PS2 power supply
Expansion:
  • If front fixed with 3.5" HDD, 4 slot full high plugin cards (max. depth at 170mm)
  • If front fixed w/o 3.5" HDD & bracket, 4 slot full high plugin cards (max. depth at 330mm)
  • Controls: Power on/off, system reset and 2 × USB ports
    System Board: ATX 12" × 9.6" and 9.6" × 9.6" MicroATX and 6.7"x6.7" Mini-ITX MB
    Drive Bay: 7~9 Drive Capacity:
  • 2 × 5.25" ODD, 5 × 3.5" HDD bay (if 12" × 9.6" ATX MB installed)
  • or 3 × 5.25" ODD, 5 × 3.5" HDD bay (if 9.6" × 9.6" MicroATX MB installed)
  • or 2 × 5.25" ODD, 6 × 3.5" HDD bay (if 9.6" × 9.6" MicroATX MB installed)
  • or 2 × 5.25" ODD, 5 × 3.5" HDD, 2 × 2.5" HDD bay (if 9.6" × 9.6" MicroATX MB installed)
  • Package: NW 6 KGM, GW 8 KGM, 2.22 CUFT (56x51x22cm, single box packed)
    Mounting Options: CLM-882054B: 20" Slinding Rails + Bracket
    CLM-882054B-26: 26" Slinding Rails + Bracket
    GNS-1234RMK: 1234U rear mounting kit, 300mm depth
    Backplane Module Options SNT-1041SS: 4×2.5" SAS & SATA HDD/SSD in 1×5.25" Bay, hot swappable.
    SNT-1060SATA: 6×2.5" SATA HDD/SSD in 1×5.25" Bay, hot swappable.
    SNT-2131SS: 3×2.5/3.5" SAS & SATA HDD/SSD in 2×5.25" Bay, hot swappable.
    SNT-3141SS: 4×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable.
    SNT-3051SS: 5×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable.
    Other Information:
  • If 140mm deep PS2 psu installed, 5.25" ODD device by 210mm deep also compatible
  • If 180mm deep PS2 psu installed, 5.25" ODD device by 170mm deep also compatible
  •
