| Specifications |
|||||
| Model: | IPC-C3N | ||||
| Industry Standard: | EIA-RS310D | ||||
| Materials: | Heavy-duty preplated SPGC cold-rolled steel | ||||
| Color: | Front Panel : Black | ||||
| Dimensions: (W × D × H) |
mm: 482.6 × 533.4 × 133.4 | ||||
| inches: 19 × 21 × 5.25 | |||||
| Cooling: | Rear |
2 × 60 × 25mm fans(Optional) | |||
| Power Supply: | 400W single PSU 510W single PSU 700W single PSU 500W 1+1 hot-swap redundant PFC 600W 1+1 hot-swap redundant PFC |
||||
| Expansion: | 7 × PCI slots (full height) | ||||
| Controls: | Power on/off, system reset and 2 × USB ports | ||||
| Indicators: | Power and HDD LEDs | ||||
| System Board: | Up to 12”(W) × 10.5”(D) ATX/SSI CEB compliant MB | ||||
| Drive Bay: | External | 5.25" | 6 | ||
| 3.5" | 1 | ||||
| Internal | 3.5" HDD | 1 | |||
| Temperature: | 0°C (32°F)~50°C (122°F) | ||||
| Humidity: | 5%~95% non-condensing | ||||
| Gross Weight: | 18kgs / 39.6lbs (w/o PSU & Rail) | ||||
| Package Dimension: | (W × D × H): mm: 580 × 710 × 300 | ||||
| Mounting Options: | CLM-882054B: 20" Sliding Rails + Brackets CLM-882054B-26: 26" Sliding Rails + Brackets |
||||

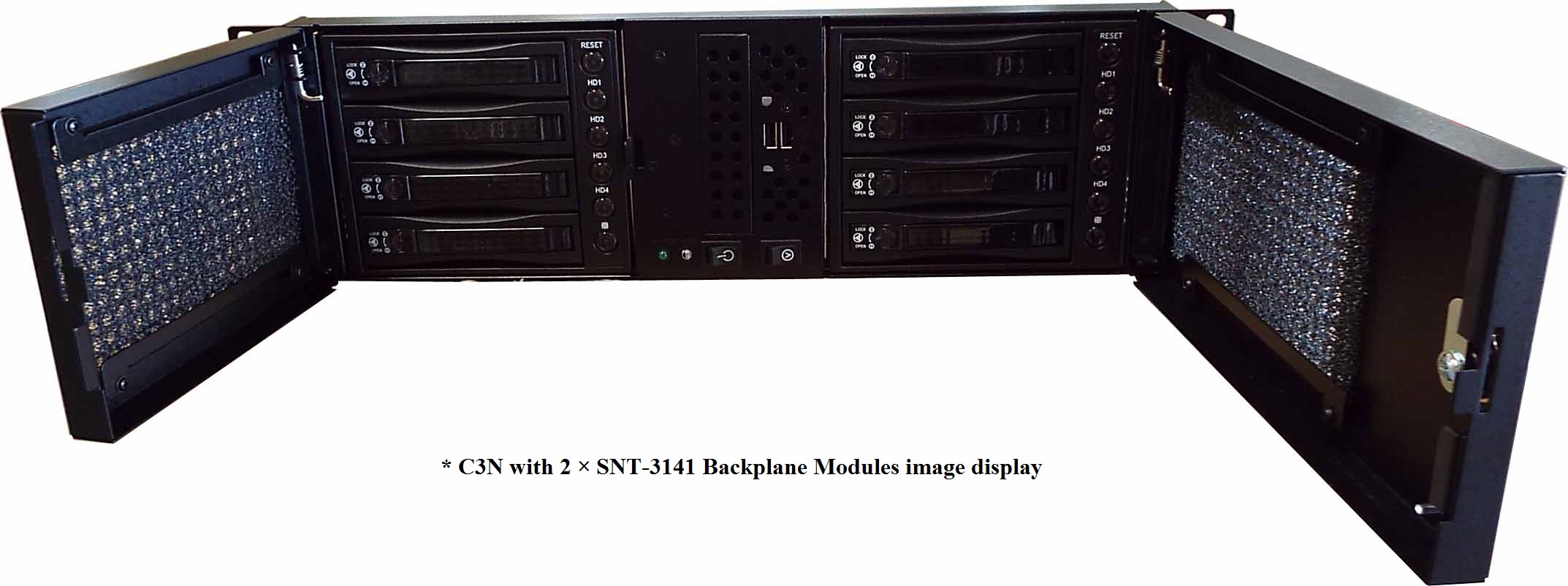

| Backplane Module Options | SNT-1041SS: 4×2.5" SAS & SATA HDD/SSD in 1×5.25" Bay, hot swappable. SNT-1060SATA: 6×2.5" SATA HDD/SSD in 1×5.25" Bay, hot swappable. SNT-2131SS: 3×2.5/3.5" SAS & SATA HDD/SSD in 2×5.25" Bay, hot swappable. SNT-3141SS: 4×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable. SNT-3051SS: 5×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable. |
||||
