Specifications
|
| Model: |
IPC-C3L |
| Industry Standard: |
EIA-RS310D |
| Materials: |
Heavy-duty preplated SPGC cold-rolled steel |
| Finish: |

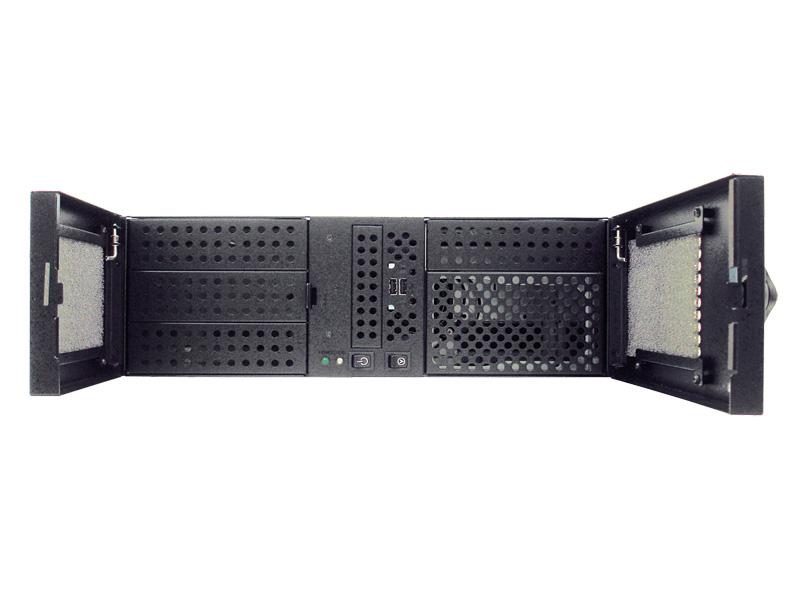

Front Panel : Texture-coated |
Dimensions:
(W × D × H) |
mm: 482.6 × 670 × 133.4 |
| inches: 19 × 26.4 × 5.25 |
| Cooling: |
Middle : 2 × 80 × 25mm fans (+ optional 2 × 80 × 25mm fans for upgrade) |

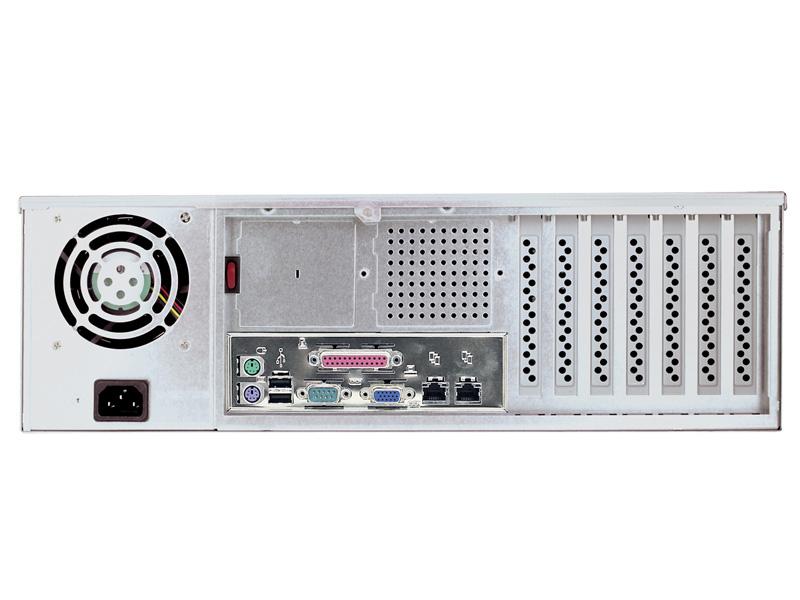

| Rear : 1 × 80 × 25mm fan, 2 × 60 × 25mm fans |
| Power Supply: |
400W single PSU
510W single PSU
700W single PSU |
| Expansion: |
7 × PCI slots (full height) |
| Controls: |
Power on/off, system reset and 2 × USB ports |
| Indicators: |
Power, LAN and HDD LEDs |
| System Board: |

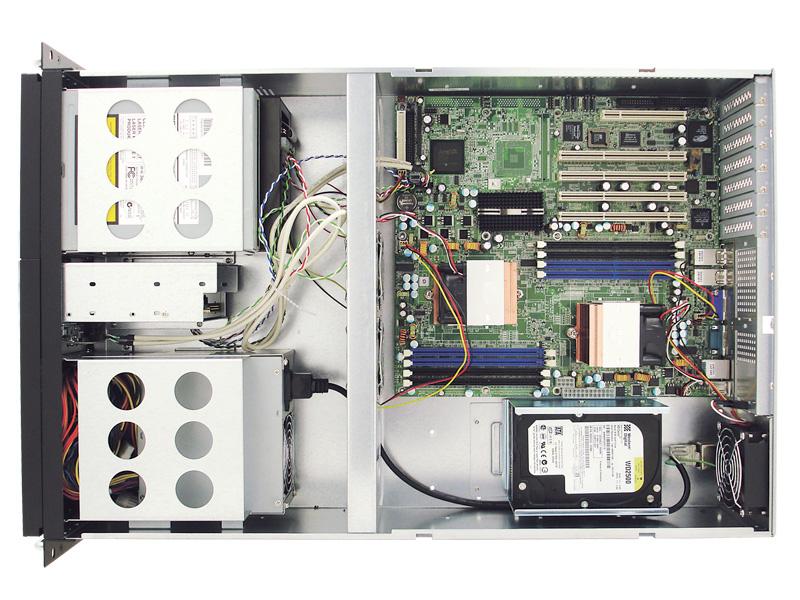

Up to 12”(W) × 13”(D) E-ATX/SSI EEB 3.6 compliant MB |
| Drive Bay: |
External |
5.25" |
4 |
| 3.5" |
1 |
| Internal |
3.5" HDD |
4 |
| 2.5" HDD |
0 |
| Temperature: |
0°C (32°F)~50°C (122°F) |
| Humidity: |
5%~95% non-condensing |
| Gross Weight: |
18kgs / 39.6lbs (w/o PSU & Rail) |
| Package Dimension: |
(W × D × H): mm: 585 × 860 × 312 |
| Mounting Options: |
CLM-882054B-26: 26" Sliding Rails + Brackets |
| Backplane Module Options |
SNT-1041SS: 4×2.5" SAS & SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-1060SATA: 6×2.5" SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-2131SS: 3×2.5/3.5" SAS & SATA HDD/SSD in 2×5.25" Bay, hot swappable.
SNT-3141SS: 4×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable.
SNT-3051SS: 5×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable. |
