Overview
|
|

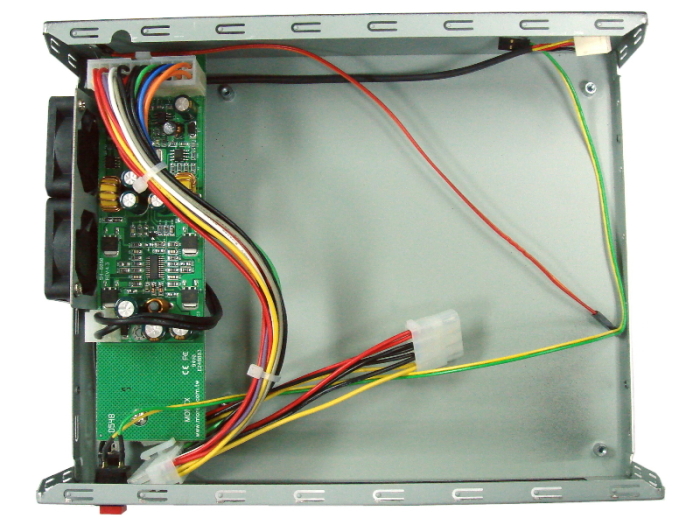

| Internal DC-DC Power Converter : |
| Dimensions: (mm) |
160 (L) × 45 (W) |
| Input Voltage Required(V) : |
11.4 ~ 12.60 Voltage |
| Input : |
DC 12V in (From External AC Adapter) |
| Maximum Output(W) : |
Output Voltage(V) |
Output Current(A) |
Power Output(W) |
Ripple & Noise |
|
5VSB |
1.50 |
7.50 |
50mV |
|
+3.3V |
5.00 |
16.50 |
50mV |
|
+5V |
5.00 |
25.00 |
50mV |
|
+12V |
2.50 |
30.00 |
120mV |
|
-12V |
0.10 |
1.20 |
120mV |
| Total : |
80.20W |
| External Power Supply (60W AC Adapter, optional:80W) : |
| Input : |
AC 100~240 V |
| Output : |
DC 12V, 5.00A |
|
|
