*Image for display purposes only. Click to see the enlarged view.

Model: XC-34D1

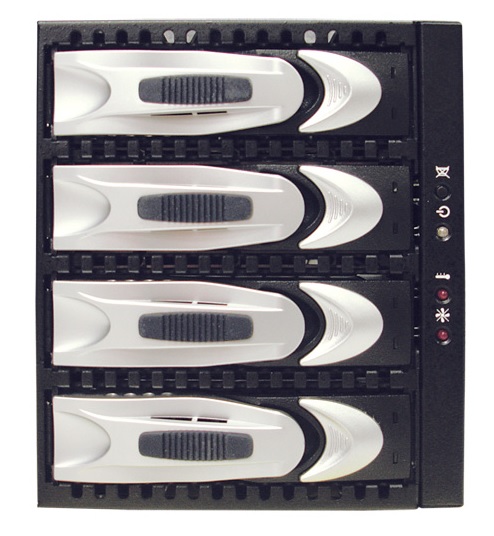

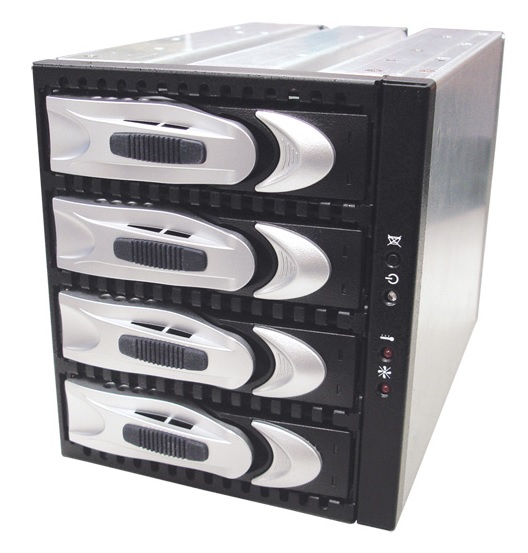

XC-34D1 is designed to support four 3.5-inch SAS/SATA II drives in three ODD drive bay spaces on tower and rack-mount form factors.

Specifications

Materials	Heavy-duty preplated SPGC cold-rolled steel
Finish	Front Panel: Texture-coated
Dimensions (W x D x H)	mm : 147.32 x 223.52 x 127 inches : 5.8 x 8.8 x 5

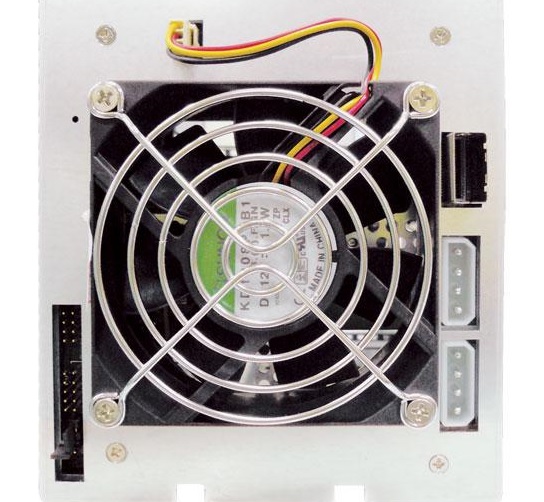

Cooling	Rear: 1 x 80x25mm fan
Controls	System mute
Indicators	Power, temperature, fan and HDD LEDs
Drive Bay	4 x 3.5" hot-swap
Temperature	0°C(32°F) ~ 50°C(122°F)
Humidity	5%~95% non-condensing
