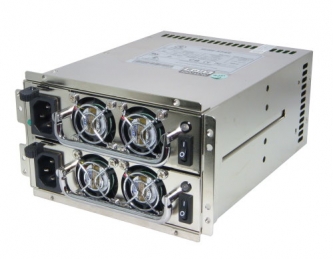

* Image for display purpose only
Part No. : PIST1050-EPSH-80
Model No. : R4B-500G1V2
Dimensions: (D × W × H) 199 ×150 × 86mm
Dual AC IN Auto-Selecting 500W+500W
115/230 auto selectable 50Hz/60Hz |
|
Overview
-
Temperature control
-
4cm ball bearing cooling fan × 4 , with low noise design & high reliability
-
On/Off rocker switch, a warning buzzer
-
PS/2 Size design
-
Hot-Swappable & Power Sharing capability
-
Meet EN61000-3-2 Class D(Active PFC)
-
Safty Requirements: IEC 60950-1, TUV EN60950-1, UL or CUL, BSMI, CCC
|
 |
| Manufacturer |
Sure Star |
| Product |
Power Supply |
| Model |
PIST1050-EPSH-80 |
| Single Module |
PIST1050S1-80 (M1E-500H1) |
| Description |
|
>AC Input:
-Voltage:100-240V,(115/230 Auto)
-Frequency:50/60Hz
-Input Current:8A/4A for 115 / 230VAC
-Inrush Current:60A/80A Max for 115/230
>DC Output
| Output Voltage |
+5VDC |
+12VDC |
+3.3VDC |
-12VDC |
+5VSB |
| Output Current(Max) |
25A |
41A |
25A |
0.8A |
3.5A |
| Output Current(Min) |
1A |
3A |
1A |
0A |
0.1A |
| Ripple/Noise Max.(P-P) |
50mv |
70mv |
50mv |
70mv |
50mv |
| Line Regulation |
1% |
1% |
1% |
1% |
1% |
| Load Regulation |
5% |
5% |
5% |
5% |
5% |
|
| Redundancy, hot-swappable, buzzer warning, hot pluggable, Low noise and temperature controller. |
| Package |
Box |
|
| Connector Configuration |
| Connector |
20 plus 4 pin ATX main power cable |
8 pin EPS plus 12 volt power cable |
4 pin ATX plus 12 volt power cable |
6 pin PCI Express power cable |
SATA power cable |
4 pin peripheral power cable |
| Quantity |
1 |
1 |
1 |
1 |
4 |
9 |
|
