| Model: |

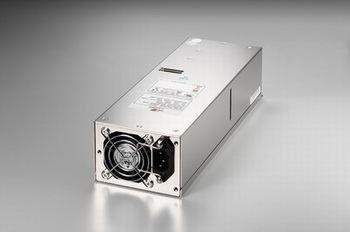

P2M-5700V |
| Output Wattage: |
700W |
| Dimension: |
(D × W × H) 280 × 100 × 70mm |
|
|
| AC Input Spec. |
VOLTAGE: 100 ~ 240 VAC FULL RANGE(WITH ±10% TOLERANCE)
FREQUENCY : 47 ~ 63 HZ
INPUT CURRENT: 11.0 A ( RMS ) FOR 115VAC
5.0 A ( RMS ) FOR 230VAC
INRUSH CURRENT: 35A MAX. FOR 115 VAC
70A MAX. FOR 230 VAC
PFC: UP TO THE TARGET OF 95% @230V, FULL LOAD |
| DC Output Spec. |
| Output VoltageTD |
Output Current Min. |
Output Current Max. |
Regulation Load |
Regulation Line |
Output Ripple & Noise Max.[P-P] |
| +5V |
0.5 |
25 |
±5% |
±1% |
60mV |
| +12V |
2 |
50 |
±5% |
±1% |
120mV |
| -12V |
0 |
0.8 |
±10% |
±1% |
120mV |
| +3.3V |
0.5 |
25 |
±5% |
±1% |
60mV |
| +5VSB |
0 |
3 |
±5% |
±1% |
60mV |
|
|
| Features |
- TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE -20℃ ~ 80℃
- HUMIDITY:OPERATING:20%-80%, NON-OPERATING:10%-90%
- EFFICIENCY: TYPICAL 80-84% AT 115V FULL LOAD
- OVER POWER PROTECTOIN: 110~160%
- OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V
- OVER CURRENT PROTECTION: +3.3V→27.5~37.5V, +5V→33~45V, +12V→55~75V
- SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
- SAFETY: TO MEET UL, CSA, TUV, CCC
- REMOTE ON/OFF CONTROL
- COOLING: ONE 60 mm DC FAN
- LEAKAGE CURRENT: 3.5mA. MAX. AT NOMINAL VOLTAGE 264VAC
|
| Connector Configuration |
| Connector |
20 plus 4 pin ATX main power cable |
8 pin EPS plus 12 volt power cable |
4 pin peripheral power cable |
SATA power cable |
6 pin PCI Express power cable |
Floppy drive power cable |
| Quantity |
1 |
2 |
6 |
6 |
1 |
1 |
|
|
