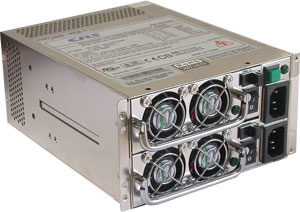

Model: I-STAR 400W redundant
Dimensions (W × L × H): 150 × 200 × 86mm
Dual AC IN Auto-Selecting 400W+400W EPS 12V
115/230 auto selectable 50Hz/60Hz |
|
| |
Overview
|
-
400W EPS12V power supply
-
Auto temperature control
-
4 × 4cm ball bearing cooling fans with low noise design & high reliability
-
On/Off rocker switch, a warning buzzer
-
Voltage (115V/230V)
|
|
Specifications
|
| Manufacturer |
ISTAR |
| Product |
Power Supply |
| Model |
ISTAR 400W |
| |
EPS 12V |
| Output |
| VOLTAGE |
+5V |
+12V |
+3.3V |
-12V |
-5V |
+5Vsb |
| MAX. LOAD |
35A |
18A |
24A |
0.8A |
0.5A |
2A |
| REGULATION |
+-5% |
+-5% |
+-0% |
+-0% |
+-5% |
+-5% |
| RIPPLE(mV) |
50 |
120 |
50 |
120 |
50 |
50 |
|
| Description |
Redundancy, hot-swappable, buzzer warning, hot pluggable, Low noise and temperature controller |
| Package |
Box |
| |
|
