Optional: JAD3INLANG (3 Gigabit Ethernet LAN, INTEL NIC).

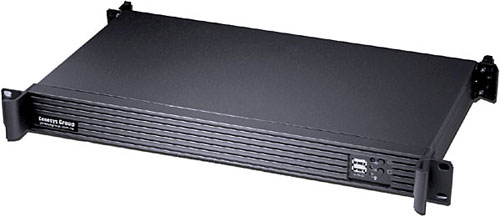

Model: RK-125B
The era of Mini-ITX constructed Dual-core and Quad-Core CPU platform has been the mainstream nowadays, the fast and stable server system is also presented by this model of design, the major feature of this brand new design is the depth of this chassis has 250mm only, it supports the most cost effective and stable quality, combines with two 40 x 20 intake fans for CPU cooling, comes with totally 2 drive bay with the chassis configuration, fits all standard Mini-ITX 170mm x 170mm motherboard form factor and standard 1U FlexATX power supply, meets regular server system application.
- * Totally 2 drive bay: 2 x 2.5" HDD bay (or 1 x 3.5" HDD)
* drive bay equipped with anti-vibration function
* two USB 2.0 ports at front bezel
* aluminum extrusion front bezel with invisible intake air vent holes
* I/O front-access mounting assembly included as standard
* two 40mm x 20mm intake fans behind the front bezel
* all in one fan wire PCB to keep fast system maintenance
* support 6.7"x6.7" standard Mini-ITX MB (170mm x 170mm)
* with standard 1U FlexATX 250W psu
* support 1 slot full high expansion card (max. 185mm long)
* standard paint: black
* chassis dimension: 19" x 1U x 250mm (9.84" deep)
* package: NW 3.5 KG, GW 4.5 KG, 1.06 CUFT (56x38x14cm, single box packed)
* note: if 3.5" HDD installed, the expansion card function is not available
- MB: NF99FL-525 (Fanless with 1.8G dual core atom D525 CPU, w/2 x Intel 82574L PCI-E Gigabit Ethernet LAN, 1 Com port on IO, 1 com header)
- 3 more Gigabit LAN ports with above optional Intel NIC
|
