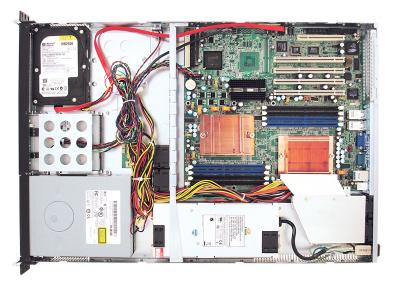

45" View | Front View | Top View | Rear View

Model: IPC C1L XP 1U Chassis

RMC1L chassis is designed for entry-level File Server or Web Server where a basic two-HDD configuration is required for RAID 0 or 1. This chassis will support a full range of PIII to dual Xeon based ATX size motherboards


Model: RMC-1L
Industry Standard: EIA-RS310D
Materials: Heavy-duty preplated SPGC cold-rolled steel
Color: Front Panel : Black
(W x D x H)
mm: 482.6 x 650 x 44.4
inches: 19 x 25.6 x 1.75
Cooling: Middle : 2 x 40x28mm easy-swap fans
(+ optional 3 x 40x28mm or 40x56mm fans for upgrade)
Rear : 2 x 40x28mm fans
Power Supply: Single 1U PSU
Expansion: 1 x PCI slot via riser card (full height, full length)
(up to 2 x slots for certain MB)
Controls: Power on/off, system reset and 1 x USB port
Indicators: Power, LAN and HDD LEDs
System Board Up to 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bay: External 5.25'' 1
3.5'' 1
Internal 3.5'' HDD 2
Temperature: 0°C (32°F)~50°C (122°F)
Humidity: 5%~95% non-condensing
Gross Weight: 14kgs / 30.8lbs (w/ PSU; w/o Rail)
Package Dimension:  (W x D x H):   mm: 593 x 815 x 191
Riser Card Options Riser Cards
CPU Cooler Options 1U CPU Coolers
Mounting Options CLM-882052B-26: 26" Sliding Rails + Brackets
GNS-1234RMK: Rear Mounting Kit 300mm Depth
