Model: IPC C1DH 1U Chassis only

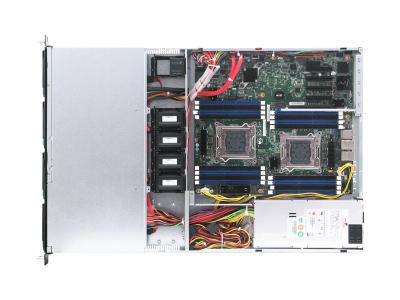

C1DH is a H-series 1U 4-bay SAS/SATA storage server chassis. This environmentally friendly solution features high-efficiency power supply, SPGC pre-plated steel with minimal paint, tool-less ball-bearing mounting rail, and easy-swap PWM fans, offering a cost-effective solution ideally suited for a broad range of applications.


Model: IPC C1DH
Industry Standard: EIA-RS310D
Materials: Heavy-duty preplated SPGC cold-rolled steel
Finish Front Panel : Texture-coated
(W x D x H)
mm: 482.6 x 660 x 44.4
inches: 19 x 26 x 1.75
Cooling: Middle: 5 x 40x56mm or 4 x 40x56mm +
1 x 40x28mm or 5x 4028mm easy-swap fans
Power Supply: 500W EPS
Expansion: 1 x PCI slot via riser card (full height, full length)
Controls: Power on/off, system reset and 1 x USB port
Indicators: Power, LAN and HDD LEDs
System Board 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bay: External 3.5" hot-swap 4
Internal 2.5" HDD 2
Slim CD-Rom/DVD-Rom 1
Temperature: 0°C (32°F)~50°C (122°F)
Humidity: 5%~95% non-condensing
Gross Weight: 19.5kgs / 42.9lbs (w/ PSU & Rail)
Package Dimension:  (W x D x H):   mm: 548 x 574 x 173
Riser Card Options Riser Cards
CPU Cooler Options 1U CPU Coolers
Mounting Options 28” inner rail, 26” outer rail, tool-less (compx)
