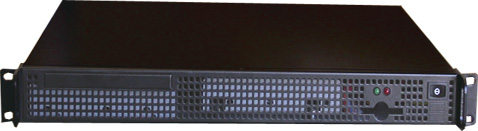

Model: IPC 7677 1U Chassis

7877 is an entry-level 1U appliance chassis with 400mm depth for space-sensitive applications, such as Network & Security appliance, firewall, VPN, Telephony and military applications.


Model: IPC 7677
Dimensions mm: 484(W) x 400(D) x 45(H)
Cooling: 2 x 4cm cooling fan
Power Supply: 200W ATX PFC
Expansion: 2 x PCI slot via riser card
Controls: Power on/off
Indicators: Power and HDD LEDs
System Board Up to 170mm(W) x170mm(D) motherboard
Drive Bay: 1 x slim CD/DVD external + 1 x 3.5" HDD internal
Temperature: 0°C (32°F)~50°C (122°F)
Humidity: 5%~95% non-condensing
Riser Card Options Riser Cards
CPU Cooler Options 1U CPU Coolers
Mounting Options CLM-882052B: 20" Sliding Rail + Brackets
GNS-1234RMK: Rear Mounting Kit 300mm Depth
