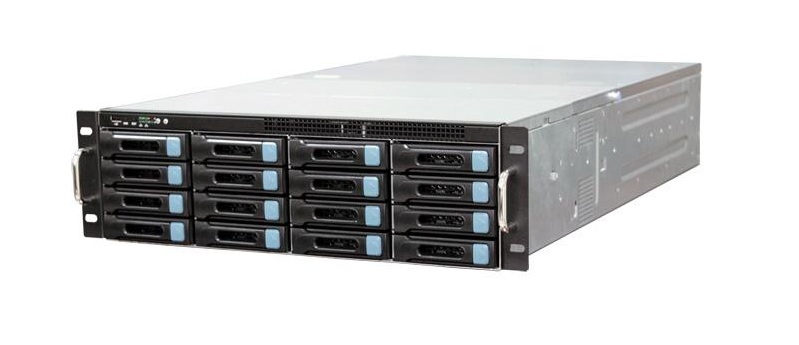

| Model |
C3EH-STB |
Dimensions
(W × D × H) |
mm : 482.6 × 700 × 130.3
inches : 19 × 27.5 × 5 |

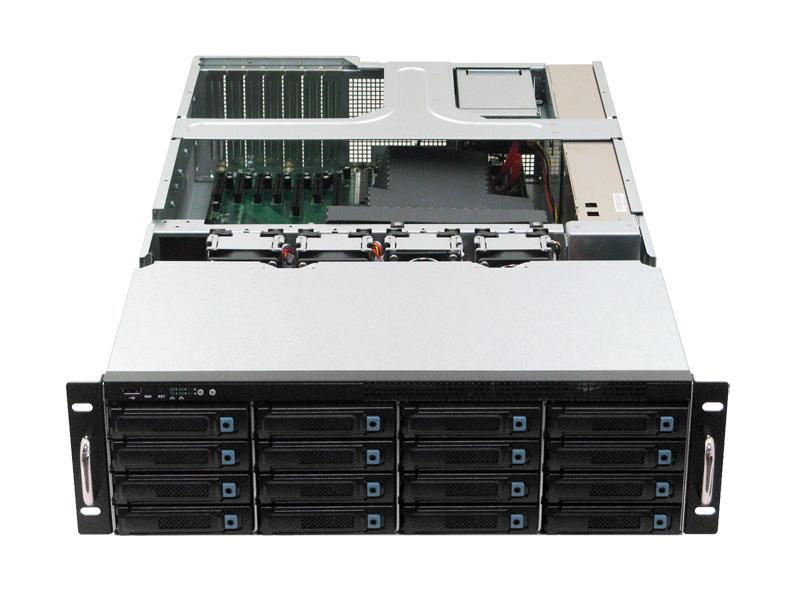

| Cooling |
Middle : 3 × 120 × 38mm easy-swap fans
Rear : 2 × 60 × 38mm or 2 × 60 × 25mm fans (optional) |
| Power Supply |
800W 1+1 hot-swap redundant 80+ (Gold) |
| Expansion |
7 × PCI slots (full height, full length) |
| Controls |
Power on/off, system reset, 1 × USB and serial port |
| Indicators |
Power, 3 × fan, 2 × LAN and HDD LEDs |
| Drive Bay |
External |
3.5" hot-swap |
16 |
| External |
2.5'' hot-swap |
2 × 2.5” hot-swap,
1 × 3.5” internal, or
2 × 2.5” internal |
| Internal |
3.5" HDD |
| 2.5" HDD |
| Peripheral Drives |
Slim DVD-ROM |
1 |
| Processor Support |
• Support for two Intel® Xeon® E5-2600/E5-2600 v2 Processors
• LGA 2011 Socket
• Thermal Design Power up to 135-W |
| Chipset Support |
Intel® C602 series chipset |
| System Memory |
• 16 × memory slots (2 slots per channel)
• Support for 800/1066/1333/1600 MHz/s Registered DDR3
Memory (RDIMM), Unbuffered ECC DDR3 memory (UDIMM)
and Load Reduced DDR3 memory (LRDIMM)
• Maximum memory size of 512 GB |
| Buttons |
• Power on/off
• System reset |
| Indicators |
• Power
• 3 × fan
• 2 × LAN and HDD LEDs |
| Connectors |
• 1 × Type A USB 2.0 port
• 1 × DB 9 serial port |
| Drive Bays |
• Front : 16 × 3.5” hot-swap drive bays + 1 × slim DVD-ROM
• Rear : 2 × 2.5” hot-swap drive bays |
| Expansion Slots |
Supports up to 6 × PCIe Gen3 expansion slots |
| SATA/SAS BP |
▪ 16 × 3.5” G/H-Tray SAS 6G B/P SGPIO single 28P-EXP on board
From S2600CP2 C600 3Gbps SAS ports |
| RAID Support |
▪ Intel® RSTe SW RAID 0/1/10/5
▪ LSI® SW RAID 0/1/10 |
| Internal I/O Connectors/Headers |
▪ 1 × 2x5 pin connector providing front panel support for 2 × USB ports
▪ 1 × internal Type-A USB2.0 port
▪ 1 × internal USB port to support low profile eUSB SSD
▪ 1 × DH-10 serial Port B connector
▪ 1 × 1x7pin header for optional Intel® Local Control Panel support |
| Video Support |
Integrated Matrox G200 2D Graphics controller |
| LAN |
4 × Gigabit network through Intel® I350 10/100/1000 Mb integrated MAC and PHY controller |
| Server Management |
▪ Onboard Server Engines* LLC Pilot III* Controller
▪ Support for Intel® Remote Management Module 4 solutions
▪ Intel® Light-Guided Diagnostics on field replaceable units
▪ Support for Intel® System Management Software
Support for Intel® Intelligent Power Node Manager
(Need PMBus - compliant power supply) |
| BIOS Flash |
Winbond W25Q64BV |
| I/O |
• 1 × DB-15 VGA output
• 1 × DB9 serial port
• 2 × RJ-45 10/100/1000Mb ethernet ports
• 4 × USB2.0 ports |
| Indicators |
• Diagnostics LED
• ID LED
• System Status LED |
| Power Supply |
800W AC 1+1 hot-swap redundant (Gold-Level) PSU |
| System Cooling |
Middle : 3 × 120 × 38mm easy-swap fans |
| Environmental Specifications |
Temperature :
-10ºC(14ºF) ~ 60ºC(140ºF) for storage,
0ºC(32ºF) ~ 35ºC(95ºF) for operating
Humidity: 5%~95% non-condensing |
| Gross Weight |
32 kgs / 70.4 lbs (w/ PSU & Rail) |
| Packaging Dimension |
(W × D × H) mm : 606 × 939 × 333 |
