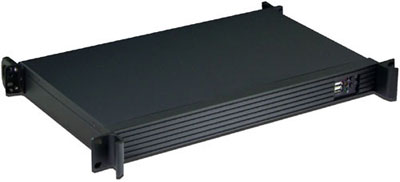

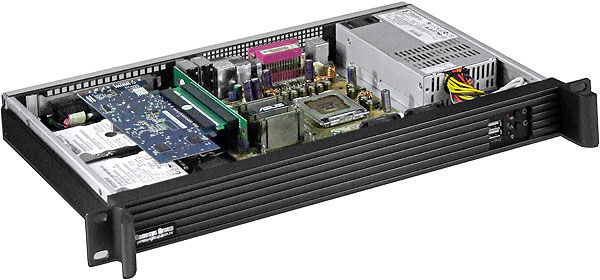

* Image for display purpose only.


Case Specifications:
  • Totally 2 drive bay: 2 × 2.5" HDD bay (or 1 × 3.5" HDD)
  • Two USB 2.0 ports at front bezel
  • I/O front-access mounting assembly included as standard
  • Two 40mm × 20mm intake fans behind the front bezel
  • Support 6.7" × 6.7" standard Mini-ITX MB (170mm × 170mm)
  • With standard 1U FlexATX 250W psu
  • Standard paint: black
  • Chassis dimension: 19" × 1U × 250mm (9.84" deep)
  • Target market: Small Business/1st Server

Note: If 3.5" HDD installed, the expansion card function is not available.


Optional motherboards:
SUPERMICRO X10SLV-Q Server Motherboard - Socket LGA-1150 - Mini ITX - 1 × Processor Support - 16 GB DDR3 SDRAM Maximum RAM - On-board Video Chipset - 1 × PCIe x16 Slot - 1 × Mini-PCIe w/ mSATA support
JETWAY NF9J-Q87 Server Motherboard - Socket LGA-1150 - Mini ITX - 1 × Processor Support - 16 GB DDR3 SDRAM Maximum RAM - On-board Video Chipset - 1 × PCIe x16 Slot - 1 × Mini-PCIe (Selectable w/ mSATA)
