*Click to see the enlarged view

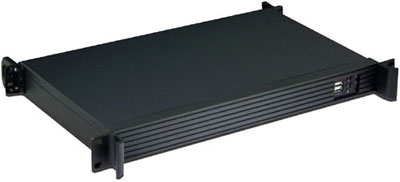

RK125B-2NB Network Applied Barebone System with MITAC® two LAN Intel® Atom D2500 (Dual Core) CPU Mini-ITX Motherboard, support up to 4GB DDR3 SODIMM Memory. Features two high speed Gigabit Ethernet connection. Support 2 × 3GB/s SATA, 1 × PCI and PCI Express Full-Mini Card slot with Half-Mini Card support.

Model RK125B-2NB
Dimension 19" × 1U × 250mm (9.84" deep)
Power Supply 1U 250W PSU
Drive Bay 2 × HDD Device 2.5''
Processor Chipset Passively-cooled, soldered-down dual-core Intel® Atom D2500 processor with integrated graphics and memory controller
Main Memory
  • Two 204-pin Double Data Rate 3 (DDR3) Small Outline Dual Inline Memory Module (SO-DIMM) sockets with gold-plated contacts
  • Support for DDR3 1066/1333/1600 MHz SO-DIMMs (DDR3 1333 MHz and DDR3 1600 MHz SO-DIMMs operate at 1066 MHz only)
  • Support for up to 4 GB of system memory
  • Chipset Intel® NM10 Express
    Integrated Graphics Intel® Graphics Media Accelerator 3600 (Intel® GMA 3600) integrated graphics subsystem with support for digital video (DVI-I), VGA, and flat panel displays via an LVDS display interface
    External Graphics External graphics support provided through the PCI bus connector
    Audio RealTek® ALC662 audio codec for 5.1 (6-channel) High Definition Audio (HD Audio) and AC ’97 Audio. Included are:
  • Back panel audio connectors
  • Onboard S/PDIF digital audio header
  • Front panel microphone/headphone header with support for HD Audio or AC ’97 Audio
  • Legacy I/O Legacy I/O Controller (Nuvoton* W83677HG-I) that provides:
  • Four serial ports: two via onboard headers and two via back panel connectors
  • One parallel port via an onboard header
  • Hardware management support
  • Expansion Capabilities One PCI* bus add-in card connector
    One PCI Express* Full-Mini Card slot with Half-Mini Card support
    Peripheral Interfaces Seven USB 2.0 ports:
    • Four back panel ports
    • Three front panel ports (via two internal headers; a single-port header supports an Intel® Z-U130 USB Solid-State Drive or compatible device
    Two Serial ATA (SATA) 3.0 Gb/s interfaces
    Hardware Monitor Subsystem Hardware monitoring through the Nuvoton* W83627DH-P legacy I/O controller, including:
  • Remote thermal sensor
  • One 3-pin system fan header with speed control
  • LAN Support Intel® 82574L Gigabit (10/100/1000 Mb/s) Ethernet LAN controller
    BIOS Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    Instantly Available PC Technology
  • Support for Advanced Configuration and Power Interface (ACPI)
  • Wake on USB, PCI, PCI Express, LAN, serial, PS/2, and front panel
  • Environment
  • Operating Temperature: 0 °C to +60 °C
  • Storage Temperature: -20°C to +70°C
  • Safety CE, FCC, UL
    Optional Parts 1U Riser Card
