| Model |
557-NB |
| Dimension |
62(H) × 190(W) × 196(D) mm |
| Power Supply |

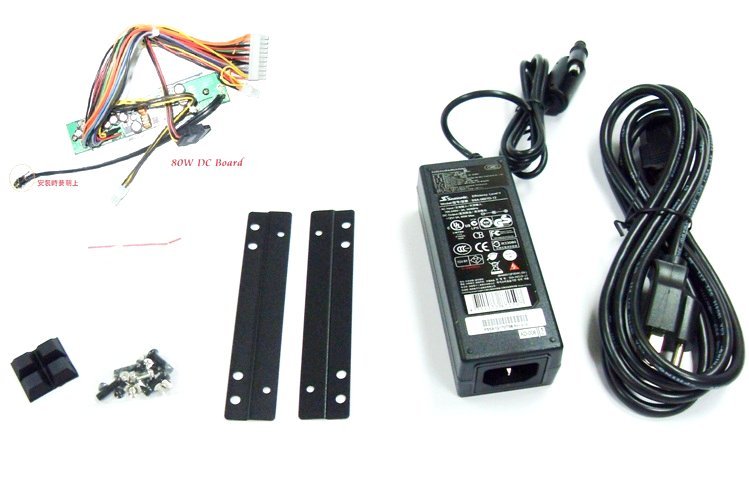

80W 12V DC-IN power supply |
| Drive Bay |
2 × HDD Device 2.5" |
| Expansion |
PCI Slots: N/A |
| Processor |
Intel® Atom Dual Core 1.86GHz |
| Chipset |
Intel® NM10 |
| System Memory |
2 × 204-pin DDR3-800/1066 SO-DIMM slot up to 4 GB |
| Video |
PowerVR SGX 545 (GMA 3650@640MHz) Integrated Graphics |
| LAN |
2 × Realtek RTL8111EVL PCI-E Gigabit Ethernet |
| Audio |
Realtek ALC662 5.1 Channel Audio |
| Storage |
2 × SATA2 3Gb/s Port |
| Features |
- Supports Dual Independent Displays
- Dual Gigabit LAN with Enhanced Surge Protection (NC9KDL-2700 & NC9KDL-2550)
- HDMI/VGA and 24-bit LVDS Video Outputs
- Watchdog Timer System Reset, 1-255 min/sec
- ECO-design for EuP Standard |
