Products

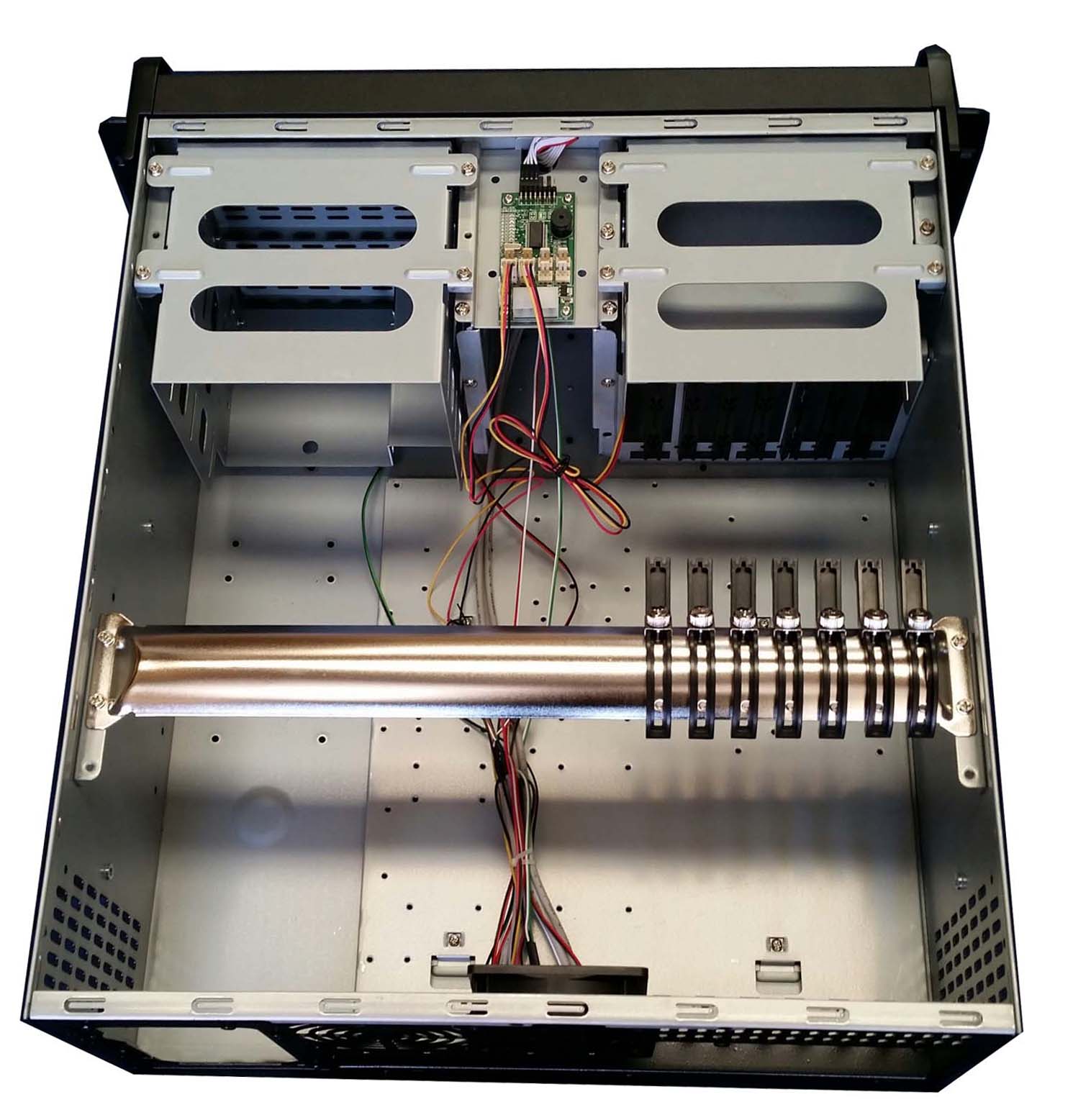

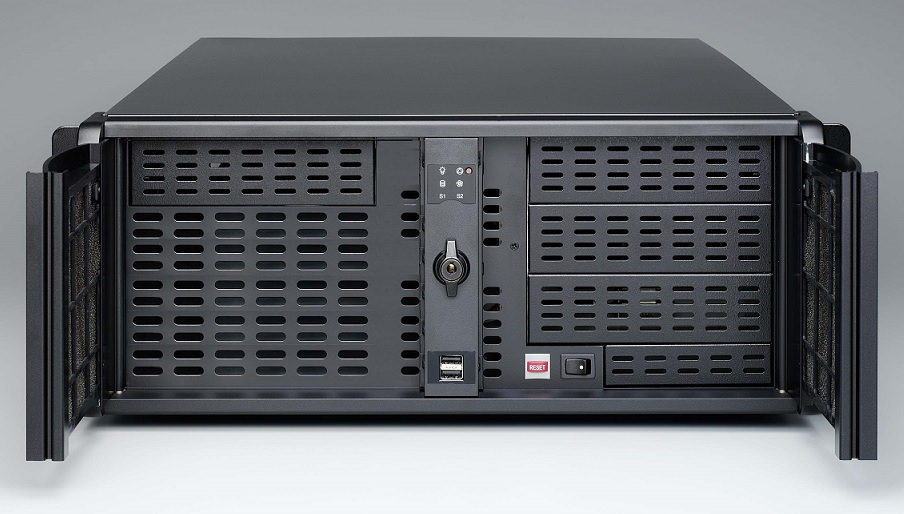

* Image for display purposes only. Click to see the enlarged view.

Model: EYE 4800 4U Chassis

EYE 4800 chassis is designed for File Server, Video/audio Streaming, NAS and Data Warehousing application for small to medium size business.
Dimension : 19" (W) × 20" (D) × 7"(H)
Specifications

Model: EYE 4800
Material: Heavy-duty cold-rolled steel.
Inside: zice-plated with bright chormate, Outside: texture-coated
Dimensions
(W × D × H)
mm: 482.6 × 528.3 × 177.8
inches: 19 × 20.8 × 7
Cooling: Front: 1 × 120mm ball-bearing fan
Rear: 1 × 80mm ball-bearing fan (extra 1 × 80mm fan as optional)
Power Supply: PS2 ATX / EPS, single or redundant power supply
Expansion: 7 × PCI slots
Controls: Power ON/OFF, System & Alarm Reset
Air Filter: Removable & Washable
Indicators: LEDs for Power ON/OFF, HDD, Fan & Alarm
System Board: 12" × 13" mother board
Drive Bay: External 5.25" 4
3.5" 1
Internal 3.5" HDD 2
Mounting Options: CLM-882054B: 20" Sliding Rails + Brackets
CLM-882054B-26: 26" Sliding Rails + Brackets
Backplane Module Options SNT-1041SS: 4×2.5" SAS & SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-1060SATA: 6×2.5" SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-2131SS: 3×2.5/3.5" SAS & SATA HDD/SSD in 2×5.25" Bay, hot swappable.
SNT-3141SS: 4×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable.
SNT-3051SS: 5×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable.
