Products
Cabinets
CLM21xx Series

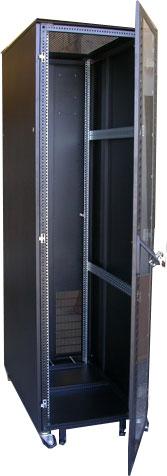

* Click to see the enlarged view

Feature:

  • Material: Cabinet frame of extrude aluminium sections.Front and rear door, side panels, top, bottom plates and plinth of sheet steel.
  • Standard Accessories:
    • Front Door:Glazed & vented sheet steel door
    • Rear panel: Vented sheet steel door
    • Side panel: Side panels with quick-release fastener
    • Roof: Flat roof plate with cutout & 3 cable entries
    • Mounting Angle: S-shaped mounting angles (attach to frame)
  • Unique 100mm thicklness extrude aluminum section #6063 for over 1000kgs loading capacity in staling.
  • Flexible 100mm modular to be such as as a tailer-made SPECS.
  • Expandable 11positions punched for fixing extra cooling fans.
  • Versatile mounting angles to fit IBM, HP, INTEL and etc brand servers.
  • Durable structure fixed heavy-duty castors can ensure all component are safe not to overturn while moving on a rugged floor.
  • 19" EIA RS-310-D / ANSI /E, TSI, DN-19, ROHS compliant.
  • Brushed cable entries(patent pended) built-in top & bottom panel to isolate dusty&protect cable unhurted.
  • A swing-handle security lock built-in front door as protection. (patent pended) .
  • Color: Black
  • Plinth : Castors; Leveling feet
  • Optional Accessories:
    • Fan panel : Fan panel with 3 fans, up to 8 fans

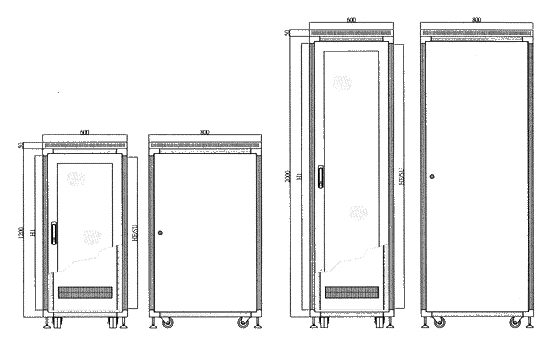

Dimensions:
Model U* SU Width (mm) Height (mm) Depth (mm) Clear Height(mm)
CLM-2168-11 11 19 600 600 800 501
CLM-2168-15 15 26 600 800 800 701
CLM-2168-20 20 35 600 1000 800 901
CLM-2168-24 24 42 600 1200 800 1101
CLM-2168-29 29 51 600 1400 800 1301
CLM-2168-33 33 58 600 1600 800 1501
CLM-2168-38 38 67 600 1800 800 1701
CLM-2168-42 42 74 600 2000 800 1901
CLM-2168-47 47 83 600 2200 800 2101
CLM-2169-20 20 35 600 1000 900 901
CLM-2169-42 42 74 600 2000 900 1901

* Inner height. 1U = 44.45mm

CLM24xx Series

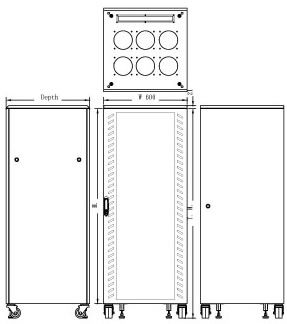

* Click to see the enlarged view

Feature:

  • Innovative cabinet constructed square-pipe main frame.
  • Removable partial for a limited direction in an office.
  • "D.I.Y." Flat package for saving freight & warehouse cost or completely assemble service (optional).
  • Loading Capacity up to 750 kg.
  • A swing-handle security lock (patent pended) for protecting componets in safty.
  • Versatile Fornt/Rear door & top/bottom panel for a modern company.
  • Cable entry via roof & bottom panel.
  • Special spring-load hinge set for removing door easily.
  • Adjustable depth stay punched in 25 pitch pattern to combine any brand's component.
  • Castors & leveling feet included.
  • 19" EIA RS-310-D / ANSI /E,TSI,DN-19 , RoHS compliant.
  • Color: Black.
Dimensions:
Model U* Width (mm) Height (mm) Depth (mm)
CLM-24680-12B 12 600 665 800
CLM-24680-16B 16 600 895 800
CLM-24690-25B 25 600 1300 900
CLM-24690-43B 43 600 2100 900
CLM-246100-12B 12 600 665 1000

* Inner height. 1U = 44.45mm
