3U Index
Model Image Oveview
RK3380G
Mechanical Dimension: 19" × 3U × 380mm (14.96 inch deep)
Supported MB: ATX (12" × 9.6"), MicroATX (9.6" × 9.6"), Mini-ITX (6.7" × 6.7")
Supported PSU: PS2 power supply

RK338B Mechanical Dimension: 19" × 3U × 380mm (14.96 inch deep)
Supported MB: ATX(12" × 9.6"), MicroATX(9.6" × 9.6"), Mini-ITX(6.7" × 6.7")
Supported PSU: PS2  power supply (max. psu depth at 140mm~180mm)

RK330B Mechanical Dimension: 19" × 3U × 300mm (11.81 inch deep)
Supported MB: ATX(12" × 9.6"), MicroATX(9.6" × 9.6"), Mini-ITX(6.7" × 6.7")
Supported PSU: PS2  power supply (max. psu depth at 140mm~180mm)

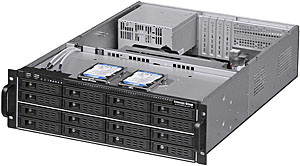

RK316B Mechanical Dimension: 19" × 3U × 583mm (22.96 inch deep)
Supported MB: CEB (12"×10.5"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
Power Supply:  Standard PS2 PSU compatible (max. depth at 280mm)

C3EH Mechanical Dimension: 19" × 3U × 700mm (27.5 inch deep)
Supported MB: Up to 12”(W) × 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Power Supply:  800W high efficiency 1+1 hot-swap redundant PFC

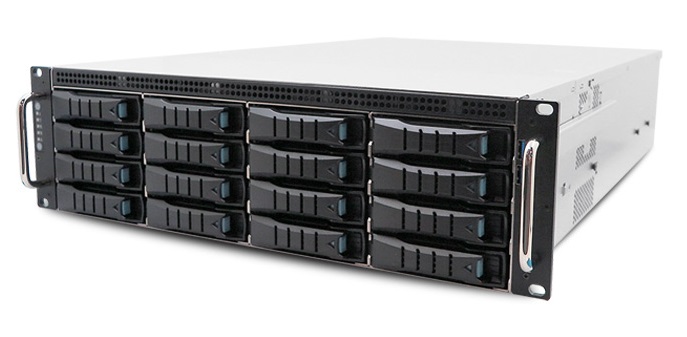

C3ET Mechanical Dimension: 19" × 3U × 680mm (26.8 inch deep)
Supported MB: 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Power Supply:  800W 1+1 redundant PSU PMBus 1.2 80+ Gold

C3K Mechanical Dimension: 19" × 3U × 685.8mm (27 inch deep)
Supported MB: Up to 12"(W) × 13 "(D) E-ATX/SSI EEB 3.5 compliant MB
Power Supply:  650W high efficiency 2+1 hot-swap redundant PFC

C3A Mechanical Dimension: 19" × 3U × 431.8mm (17 inch deep)
Supported MB: Up to 12”(W) × 9.6”(D) ATX compliant MB
Power Supply:  350W/400W single PSU

C3F Mechanical Dimension: 19" × 3U × 670mm (26.4 inch deep)
Supported MB: Up to 12”(W) × 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Power Supply:  400W single PSU or 460W / 500W 1+1 redundant PFC

C3L Mechanical Dimension: 19" × 3U × 670mm (26.4 inch deep)
Supported MB: Up to 12”(W) × 9.6”(D) ATX compliant MB
Power Supply:  400~700W single PSU or 500W / 600W 1+1 redundant PFC

C3S Mechanical Dimension: 19" × 3U × 533.4mm (21 inch deep)
Supported MB: Up to 12”(W) × 9.6”(D) ATX compliant MB
Power Supply:  PS2  power supply

C3N Mechanical Dimension: 19" × 3U × 533.4mm (21 inch deep)
Supported MB: Up to 12”(W) × 9.6”(D) ATX compliant MB
Power Supply:  400~700W single PSU or 500W / 600W 1+1 redundant PFC
