Products

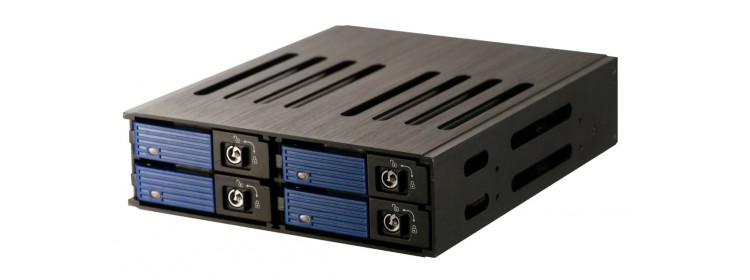

*Image for display purpose only, click to see the enlarged view.
Features
  • FRONT PANEL LED DESIGN
    1) Support super high speed of transfer rate up to 6Gbps which support both of SAS I, II(primary port only) and SATA I, II, III, and connect with HDD by cable less design.
    2) The LED indicators shown both power and HDD access.
  • SUPPORT 25" HDDISSD X 4
    Support 4 SATA/SAS HDD and SSD with thickness limit from 7~15mm"
  • SPECIALLY DESIGNED INNER FRAME
    1) Aluminum material with unique anti-vibration design, and the device can be more steady with the top plastic cover locked The top plastic cover can be removed in accordance to the thickness of cover locked. The top stainless cover can be removed in accordance to the different thickness of HOD.
    2) The mechanical triangle lock design makes the HDD more firmly fixed.
  • SAFIETY MIETAL KEYLOCK
    1) All aluminum frame design- more effective of heat transfer.
    2) The thermal conductivity ratio of metal k(W/(m.K)) is as : Gold(317) > aluminum(237) > iron(80)
  • DUAL HEAT DISSIPATION FAN
    Unique dual fans design, with powerful 4Omm in the rear side of device, will enhance the ventilation, keeping HDD in cool condition.
  • SUPPORT HOT SWAPPABLE
    Support Hot Swappable and Plug & Play.
    Support RAID 0, 1, 5 mode (Additional purchase of Raid card is required).
Specification
Model ST-1041SS
Color Black
HDD Support 4 × 2.5" SAS&SATA HDD
Support 2.5" SSD thickness from 9mm ~15mm
Application 5.25" form factor drive space
Interface Support SATA I,II,III & SAS I, II
Transfer Connector 7-pin SATA port connector
Transfer Rate 6Gbps
Material Aluminum
LED Display Power & HDD accessing status
Anti-vibration Yes
Switch Design Triangle-shaped lock design on tray
Power 15-pin Power
Dimension 183(L) × 146(W) × 42(H)mm
Weight 0.8 kg
Dimension 202(L) × 146(W) × 86(H) mm
Weight 1.3kg
