Products
TYAN Server Boards
Model Features

S7100GM2NR

  • 12" x 13" SSI EEB Form Factor
  • Dual socket Xeon Scalable Processor Family
  • (12) DIMM slots supporting up to 1.5TB DDR4 RAM
  • (4) PCIe x16 slots with support for 4 GPU cards
  • (3) PCIe x8 slots
  • (14) SATA ports
  • (2) NVMe M.2 ports
  • Optional 7.1 Channel HD Audio
  • Optional AST2500 BMC with IPMI 2.0 and Redfish

More details>>


S5630GMR

  • 12" x 10.9" SSI CEB form factor
  • 12 DIMM slots
  • 14 SATA 6G + 4 NVMe Ports
  • 1 PCIex16 slot
  • x16 OCP v2.0 LAN mezzanine slot
  • AST2500 BMC with Redfish support

More details>>

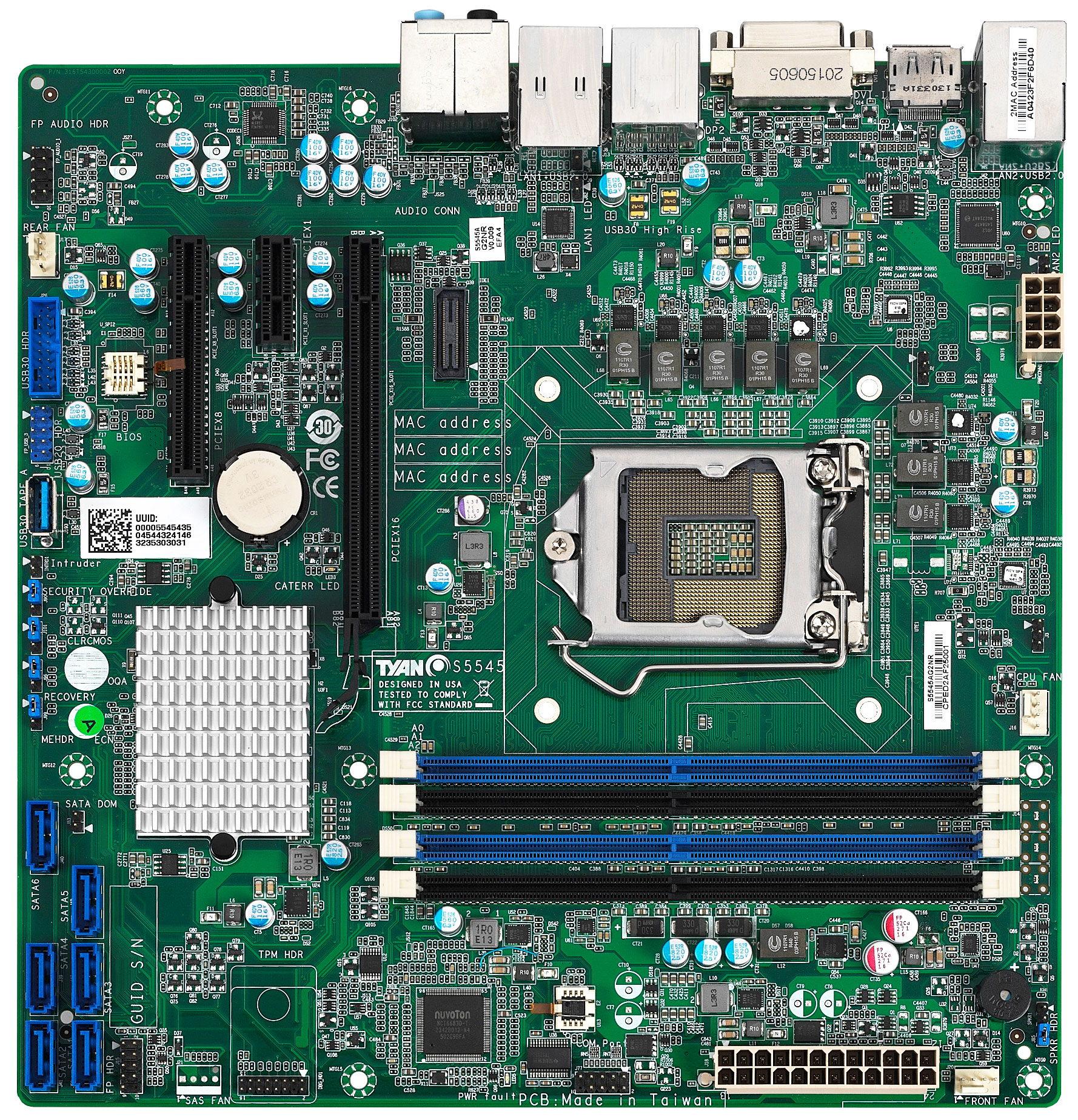

S5545-HE

  • Xeon E3-1200 v5/v6 & 6th/7th Generation Core i3 Workstation Motherboard
  • 9.6" x 9.6" µATX Form Factor
  • 4 U-DDR4 DIMM Slots
  • C236 PCH
  • 2 onboard GbE LAN
  • 3 Video outs - 2 Display Port, 1 DVI-D
  • 7.1 Channel High Definition Audio
  • Intel AMT 11.0 Manageability

More details>>

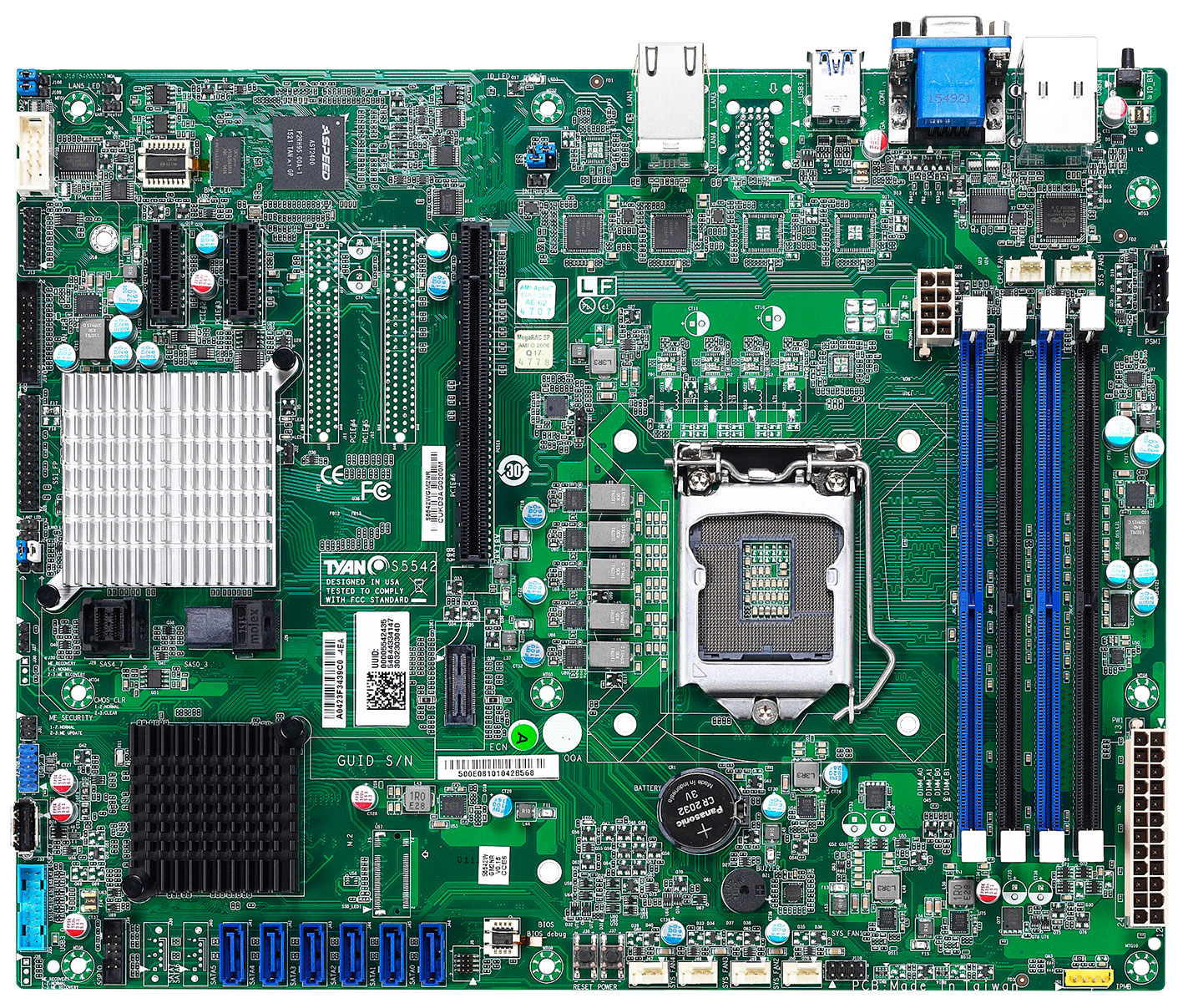

S5542GM4NR

  • 12" x 9.6" ATX form factor
  • 4 U-DDR4 DIMM Slots
  • C232 PCH
  • 4 onboard GbE LAN
  • 3 PCIe Gen3 Slots
  • 6 SATA 6Gb/s and 8 SAS 12Gb/s Ports
  • IPMI 2.0 with Dedicated Management Port

More details>>


S5542GM2NR

  • 12" x 9.6" ATX Form Factor
  • 4 U-DDR4 DIMM Slots
  • C232 PCH
  • 2 onboard GbE LAN
  • 3 PCIe Gen3 Slots
  • 6 SATA 6Gb/s and 8 SAS 12Gb/s Ports
  • IPMI 2.0 with Dedicated Management Port

More details>>


S5542G2NR-UHE

  • 12" x 9.6" ATX Form Factor
  • 4 U-DDR4 DIMM Slots
  • C236 PCH
  • 2 onboard GbE LAN
  • 5 PCIe Gen3 Slots
  • 8 SATA 6Gb/s Ports
  • Support Intel Processor Graphics for Desktop Virtualization

More details>>

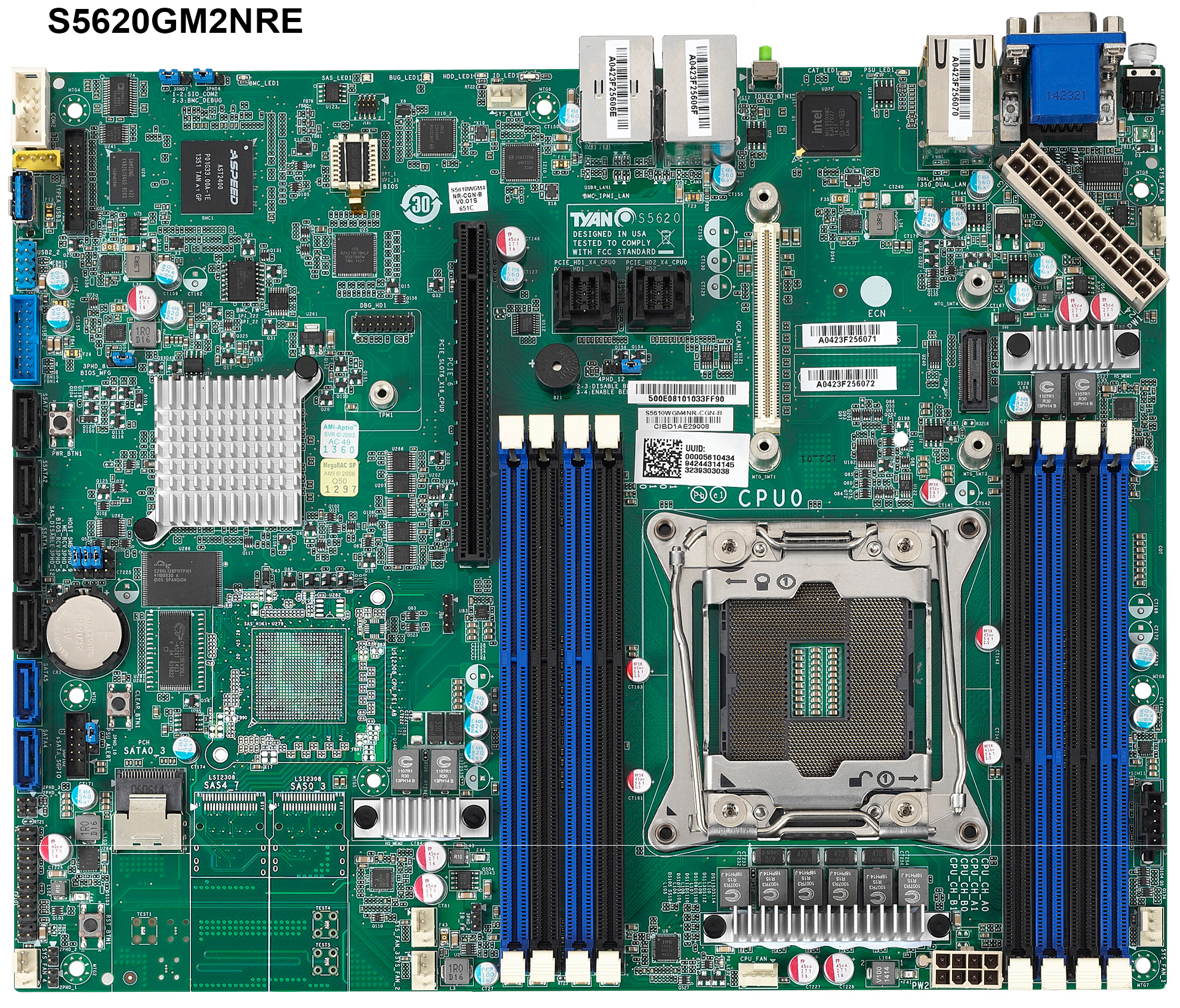

S5620GM2NRE

  • 12" x 9.6" ATX Form Factor
  • 8 R-DDR4 DIMM Slots
  • 2 onboard GbE LAN
  • 1 PCIe Gen3 x16 Slot
  • 1 OCP LAN Mezzanine Slot for Ethernet up to 10Gb/s
  • 10 SATA 6Gb/s Ports
  • 2 SFF-8643 NVMe Ports
  • IPMI 2.0 with Shared Management Port

More details >>

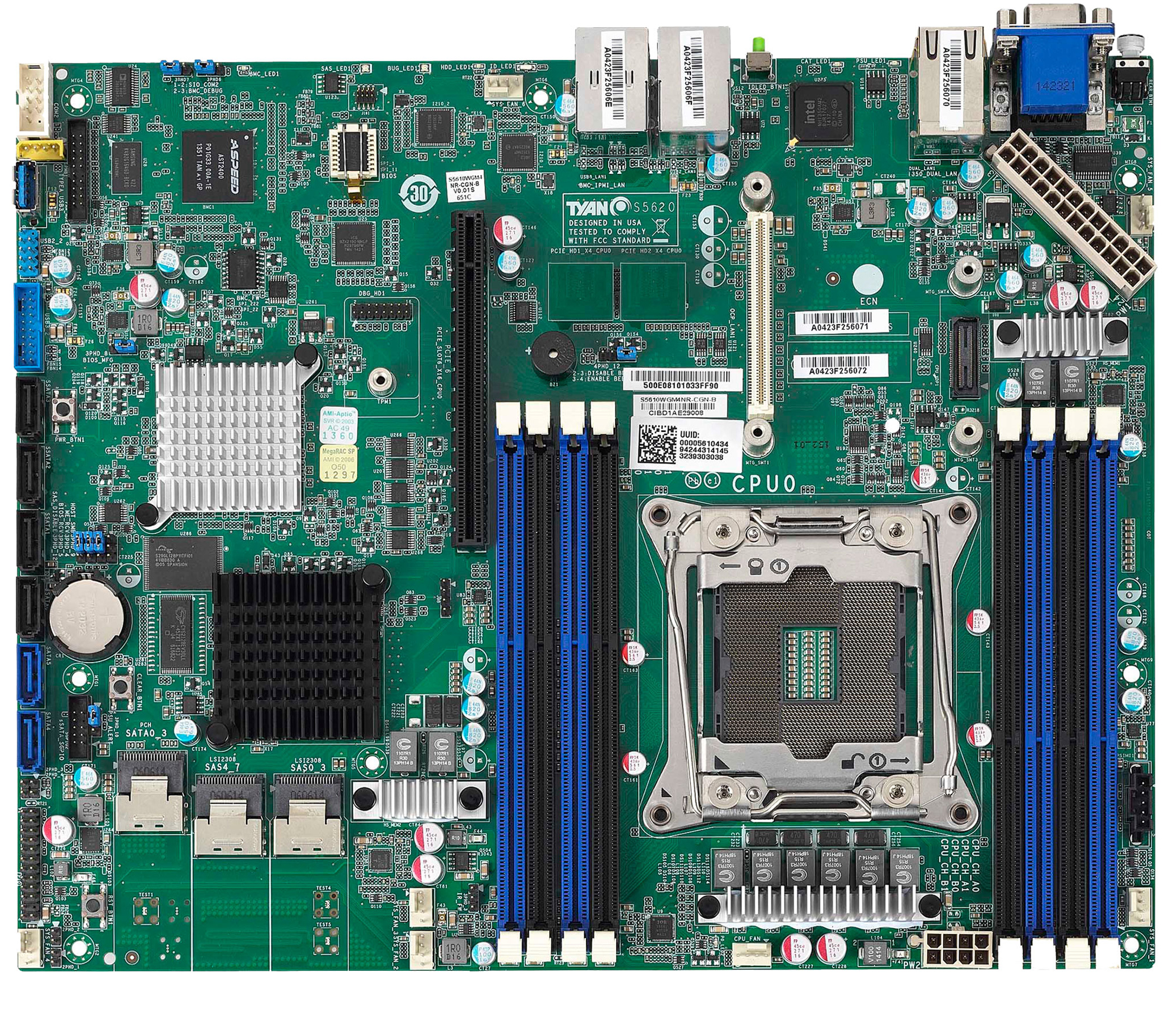

S5620GM2NR
  • 12" x 9.6" ATX Form Factor
  • 8 R-DDR4 DIMM Slots
  • 2 onboard GbE LAN
  • 1 PCIe Gen3 x16 Slot
  • 1 OCP LAN Mezzanine Slot for Ethernet up to 10Gb/s
  • 10 SATA 6Gb/s Ports
  • IPMI 2.0 with Shared Management Port

More details>>
