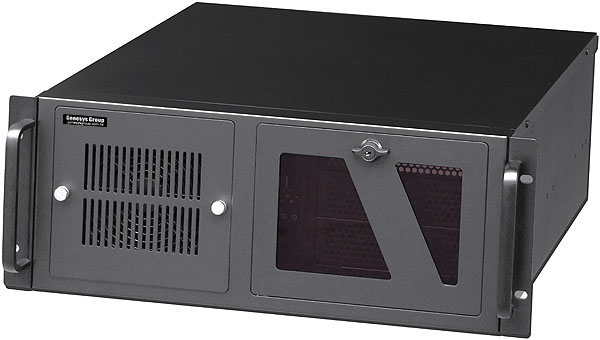

Model: IPC-RK-480E 4U Chassis

C480E is designed and made by precise tooling as the newest and rugged 4U chassis product, it features the main construction build by 1.2mm~2.0mm sheet metal thickness, and ensures the production process made no cutting corners as well as the burrs, the handles are also made of high-strength aluminum alloy die-casting, the whole overall body strength by the durable mechanism and all electronic components including fans also supported.
Specifications

Model: IPC-RK-480E
Materials: The main sheet metal constructed by 1.2mm ~ 2.0mm SGCC mechanism
Color: Black
Security: Equipped with aluminum alloy butterfly keylock & advanced door with acrylic window
Dimensions (W × H × D) 19" × 4U × 480mm (18.89" deep)

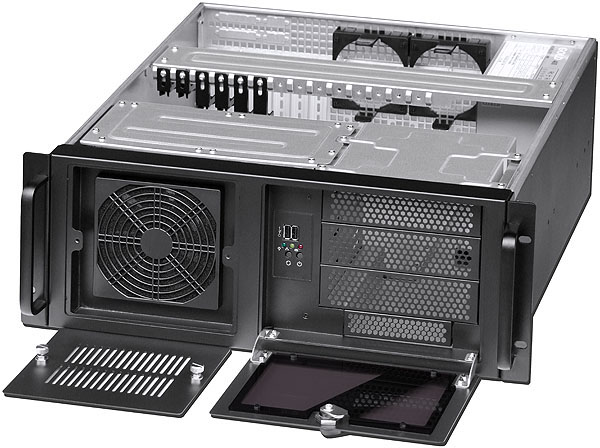

Cooling: Front 12cm dust filter with captive hand screws without opening the front door
1 × 120mm × 25mm cooling fan behind the dust filter
2 × ABS screwless easy assembly 80mm × 25mm fan frames at rear panel
Power Supply:

Support 8cm or 12cm~14cm fan version standard PS2 PSU compatible (max. depth at 220mm)

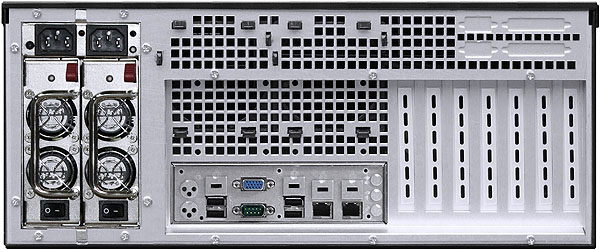

Support PS2 Mini Redundant power supply

Expansion: 7 × full height expansion cards up to max. 230mm deep (if HDD installed)
7 × full height expansion cards up to max. 282mm deep (if no HDD installed)
Controls: Power on/off, system reset and 2 × USB ports
Indicators: LAN/HDD/Power LED lights
System Board: CEB (12" × 10.5"), ATX (12" × 9.6"), MicroATX (9.6" × 9.6"), Mini-ITX (6.7" × 6.7")
Drive Bay: 5.25" ODD 3
3.5" HDD 9 (one of 3.5" allows FDD)
Package:  NW 12.00 KG, GW 14.00 KG, 3.19 CUFT (61.5 × 56.5 × 26cm, durable box packed)
Mounting Options: CLM-882054B: 20" Slinding Rails + Bracket
CLM-882054B-26: 26" Slinding Rails + Bracket
Backplane Module Options SNT-1041SS: 4×2.5" SAS & SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-1060SATA: 6×2.5" SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-2131SS: 3×2.5/3.5" SAS & SATA HDD/SSD in 2×5.25" Bay, hot swappable.
SNT-3141SS: 4×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable.
SNT-3051SS: 5×2.5/3.5" SAS & SATA HDD/SSD in 3×5.25" Bay, hot swappable.
Other Information: High strength aluminum alloy die casting handles ensure stability during rackmounting.
Equipped with vibration reduction for all HDD and ODD, extend storage appliance life.
Forward & backward adjustable hold-down card clamp with 6 height adjustable clamps.
