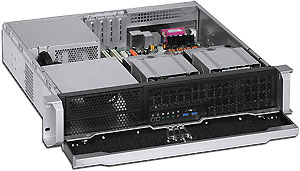

Model: RK-E239B 2U Chassis



Specifications

* Totally 6 drive bays: 2 x 5.25" ODD, 2 x 3.5" HDD, 2 x 2.5" HDD (max. height at 9.5mm)
* Drive bay equipped with anti-vibration function, extend storage appliance life

Removable front keylock security door with dustproof filter
* Two USB 3.0 ports behind the front keylock security door (USB 2.0 also compatible)

* Main structure of SGCC sheet metal thickness at 1.2mm with protective sheet on surface
* Two 60mmx25mm intake 2ball fans with dustproof filter at front (fan part# DF6025HB1)

* Room noise without fan activated is 45dBA, tested by 10cm distance to the running fan is

   55dBA (including room noise)
* MB: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Support PS2 8cm or 12cm~14cm fan version psu (max. psu depth at 140mm~180mm)

* If 140mm deep PS2 psu installed, 5.25" ODD device by 220mm deep also compatible

* If 180mm deep PS2 psu installed, 5.25" ODD device by 170mm deep also compatible

* If front fixed with 3.5" HDD, 4 slot low profile plugin cards (max. depth 170mm)

* If front fixed w/o 3.5" HDD & bracket, 4 slot low profile plugin cards (max. depth 330mm)
* Standard paint: black at front
* Chassis dimension: 19" x 2U x 385mm (15.16" deep)

Accessory pack: M3 truss head screw x 8cs, #6 round head screw x 20pcs, metal stand-off

   x 10pcs, key x 2pcs
* Package: NW 6.5 KGM, GW 8 KGM, 1.63 CUFT (54.5x54.5x15.5cm, durable carton packed)
