Specifications
Dimension 19" × 2U × 550mm (21.65 inch deep)

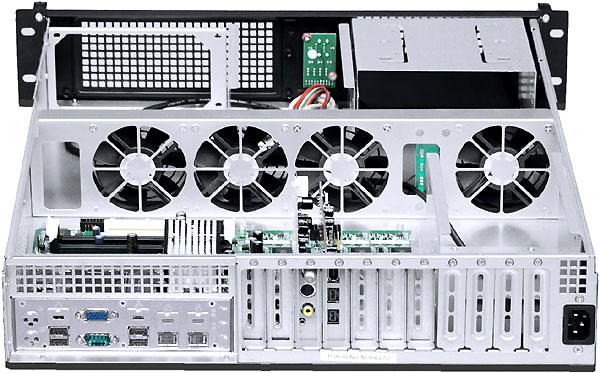

Cooling 4×Sunon EE80251B1-000C-G99 80mm×25mm intake fans in the middle fan wall
Power Supply Support PS2  psu (max. psu depth at 160mm)
Expansion 3 × full high risers or 7 × Low Profile cards
Controls Power on/off, system reset and 2 × USB ports
System Board ATX(12"×9.6"), MicroATX(9.6"×9.6"), Mini-ITX(6.7"×6.7")
Drive Bay 2 × 5.25" DVD bay and 6 × 3.5" HDD bay
Package NW 8 KGM, GW 10 KGM, 2.29 CUFT (68x56x17cm, single box packed)
Riser Card Options Riser Cards
Mounting Options CLM-882054B-26: 26" Slinding Rails + Bracket
GNS-1234RMK: 1234U rear mounting kit, 300mm depth
Backplane Module Options SNT-1041SS: 4×2.5" SAS & SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-1060SATA: 6×2.5" SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-2131SS: 3×2.5/3.5" SAS & SATA HDD/SSD in 2×5.25" Bay, hot swappable.
