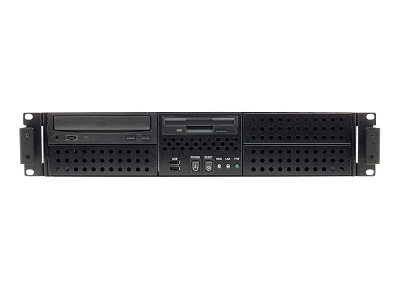

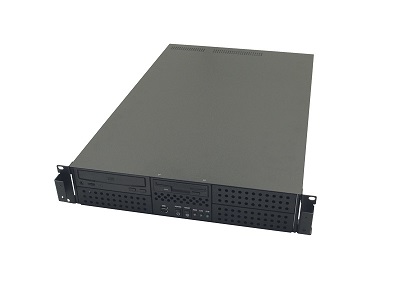

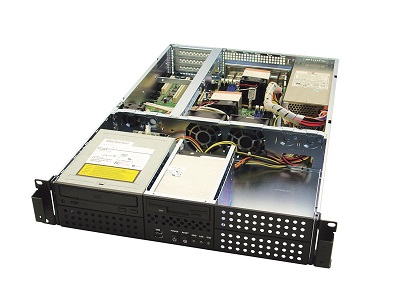

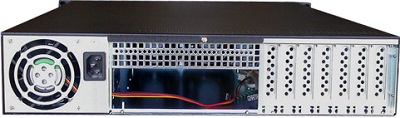

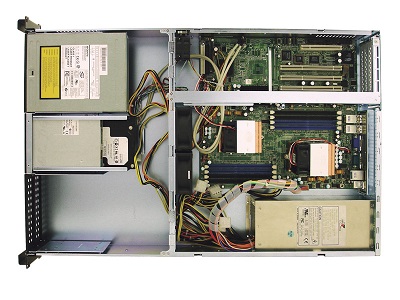

45" View | Front View | Open View | Top View | Rear View


Enlarge image

Model: IPC C2F-XP 2U Chassis

C2F-xp chassis is designed for entry-level File Server, Data Center and Network Attached Storage applications. A Hot-Swap redundant power supply is available for support.
Specifications

Model: IPC C2F-XP
Materials: Heavy-duty cold-rolled steel
Color: Outside / Front Panel : Black
Dimensions
(W × D × H)
mm: 482.6 × 685.8 × 88.8
inches: 19 × 27 × 3.5
Cooling: Middle : 2 × 80x32mm + 1 × 40 × 28mm easy-swap fans
(+ optional 3 × 40x28mmfans for upgrade)
Power Supply: 400W single PSU
510W single PSU
500W 1+1 hot-swap redundant PFC
600W 1+1 hot-swap redundant PFC
Expansion: 3 × PCI slots via riser card (full height, full length) or
7 × low profile PCI slots
Controls: Power on/off, system reset and 2 × USB ports
Indicators: Power, LAN and HDD LEDs
System Board: Up to 12”(W) × 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bay: External 5.25" 4
3.5" 1
Internal 3.5" HDD 1
Temperature: 0°C (32°F)~50°C (122°F)
Humidity: 5%~95% non-condensing
Gross Weight: 15kgs / 33lbs (w/o PSU & Rail)
Package Dimension:   (W × D × H) mm: 588 × 852 × 259
Mounting Options: CLM-882054B: 20" Sliding Rails + Brackets
CLM-882054B-26: 26" Sliding Rails + Brackets
Backplane Module Options SNT-1041SS: 4×2.5" SAS & SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-1060SATA: 6×2.5" SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-2131SS: 3×2.5/3.5" SAS & SATA HDD/SSD in 2×5.25" Bay, hot swappable.
