Products



* Image for display purpose only, click to see the enlarged view.

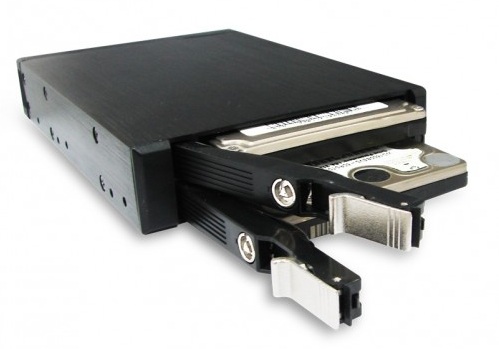

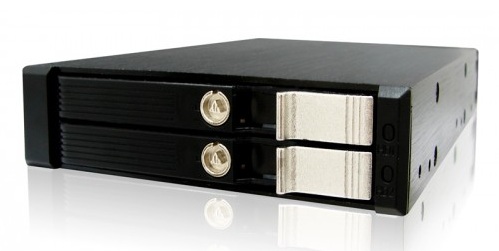

Model: SNT-2223 SATA

Features
  • FRONT PANEL LED DESIGN
    1) Support SATA I, II and transfer rate up to 6Gbps.
    2) Aluminum frame design- more effective of heat transfer.
    3) The thermal conductivity ratio of metal k(W/(m.K)) is as : Gold(317)>aluminum(237)>iron(80)
    4) The LED indicators shown both power and HDD access.
  • SUPPORT 2.5" HDD/SSD X 2
    Support 2 2.5" HDD(SSD) with HDD thickness limit from: 7mm~9.5mm. Making data transmission more convenient.
  • SAFETY METAL KEYLOCK
    Unique Triangular anti-thief lock design in Front panels will ensure the safety usage of HDD.When in unlock stage gently just open the Front panels the HDD will be pull out easily by the cochineal role. When in lock stage it will helps to stabilize the HDD.
  • INSERTED DIRECTLY INTO THE 5.25" TRAY
    1) Support SATA HDD/SSD with HDD thickness limit from 7~9.5mm
    2) User can have inference to install this 3.5" device into our another 5.25" device, ST-10155, so can fully utilized the 2.5" HDD.
  • SUPPORT HOT SWAPPABLE
    1) Support Hot Swappable and Plug & Play
    2) Support 2 X SATA ports & 15 pin SATA power connector.
Specification
Model ST-2223SATA
Color Black
HDD Support 2 x2.5" SATA HDD (SSD)
(HDD height limit:9mm~9.5mm)
Application 3.5" form factor drive space
Interface Support SATA I,II, III
Transfer Connector 7-pin SATA port connector
Transfer Rate 6Gbps
Material Aluminum Frame,Plastic handle design
Lock Design Metal lock design with triangular loc.
LED Display Power & HDD accessing status
Switch Design Special handle design --- HDD Auto ejecting design
Power 15-pin power
Dimension 146(L) x 101(W) x 25 (H)mm
Weight 0.23 kg
Dimension 202(L) x 146(W) x 86(H) mm
Weight 1.3kg
