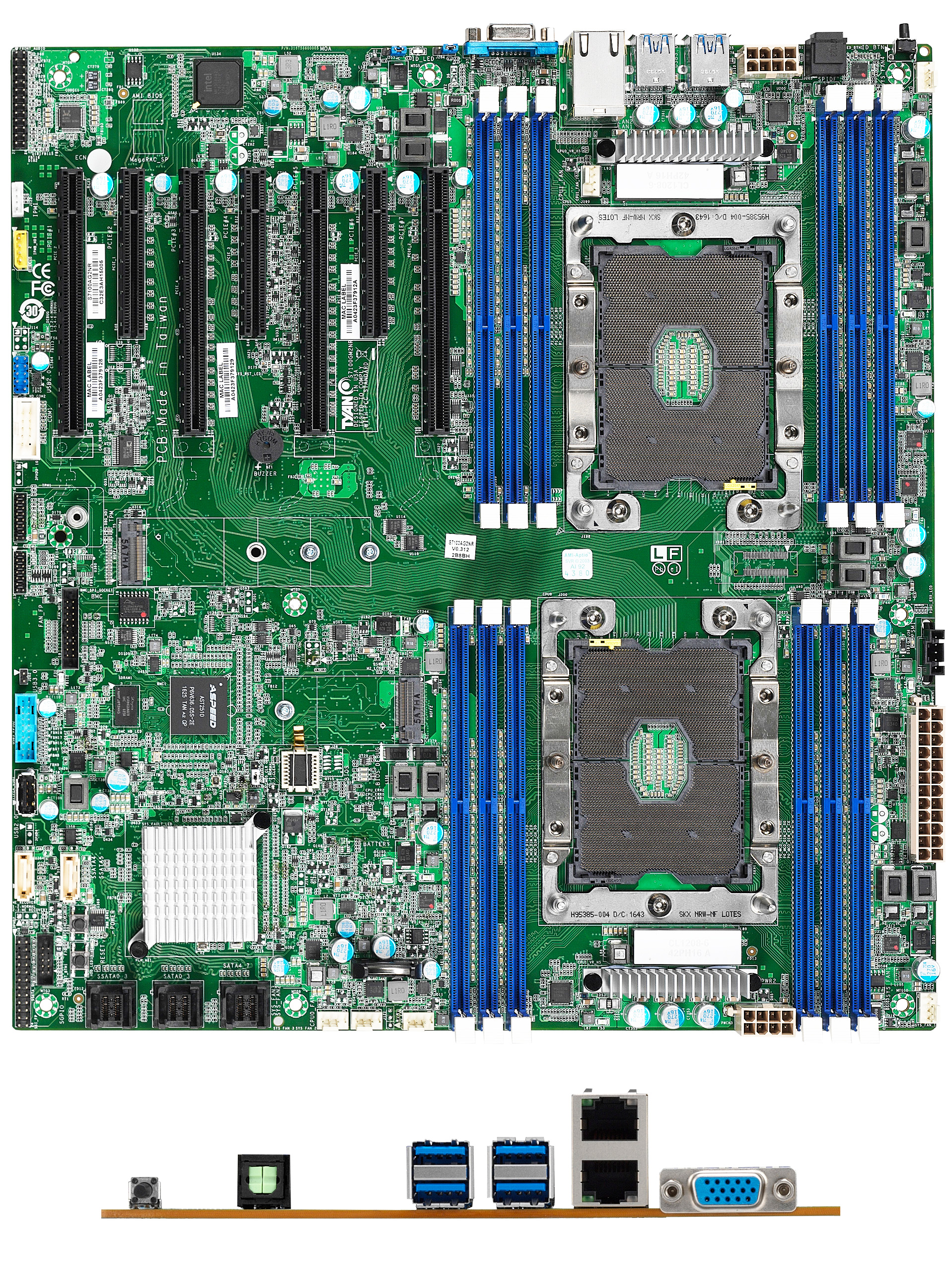

TYAN Tempest HX S7100 Dual-socket server/workstation motherboard

The Tempest HX S7100 motherboard is designed to be an ideal platform for both GPU workstations and general purpose server applications.

As a workstation motherboard, the S7100 features onboard audio and allows the use of 4 GPU cards. This enables maximum performance in technical computing workloads such as Engineering Analysis, 3D Design, Photorealistic Rendering, Image Manipulation, Media & Entertainment Creation, and Energy Exploration. With much of modern high performance workstation applications featuring support for VGA offloading and all four PCIe x16 slots being a full electrical x16 link, Tyan's Tempest HX S7100 is one of the most powerful workstation motherboards on the market today.

The Tempest HX S7100 is also a versatile platform for many server applications. With a total of 7 PCIe slots, it lends itself well to many high I/O applications such as Video Walls, Large Scale Video Capture, Surveillance, Industrial Automation, and general purpose server workloads. The board design also lends itself to offering support for true full length 12.3" PCIe cards.



Features
  • 12" x 13" SSI EEB Form Factor
  • Dual socket Xeon Scalable Processor Family
  • (12) DIMM slots supporting up to 1.5TB DDR4 RAM
  • (4) PCIe x16 slots with support for 4 GPU cards
  • (3) PCIe x8 slots
  • (14) SATA ports
  • (2) NVMe M.2 ports
  • Optional 7.1 Channel HD Audio
  • Optional AST2500 BMC with IPMI 2.0 and Redfish

Overview

Tyan Tempest HX S7100

SKU Graphics Audio IPMI UPC code
S7100GM2NR (Server) Yes - Yes 635872043239
S7100AG2NR (Workstation) Yes Yes - 635872043246
Tyan Tempest HX S7100 (S7100GM2NR) Specifications
Processor Q'ty / Socket Type (2) LGA3647
Supported CPU Series Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage Max up to 205W
System Bus Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support
Chipset PCH Intel C621
Memory Supported DIMM Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
Capacity Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel 6 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E (4) PCI-E Gen3 x16 slots / (3) PCI-E Gen3 x8 slots
LAN Q'ty / Port (2) GbE ports (1 port shared with IPMI)
Controller Intel I350-AM2
Storage SATA Connector (2) Mini-SAS HD (8-ports)
Controller Intel C621
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
sSATA Connector (2) SATA-DOM / (1) Mini-SAS HD (4-ports)
Controller Intel C621
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
NVMe Connector (M.2) (1) 2242 (by PCI-E interface) / (1) 2280/2260/2242 (by PCI-E interface)
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
Input /Output Others (1) ID button
USB (3) USB 2.0 ports (2 via cable, 1 Type-A) / (6) USB3.0 ports (4 at rear, 2 via cable)
COM (1) header
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (2) GbE ports
Front Panel (1) 2 x 5 header
SATA (2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors
Power SSI 24-pin + 8-pin + 8-pin power connectors
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2500
Fan Total (6) 4-pin headers
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1
Physical Dimension Form Factor SSI EEB
Board Dimension 12"x13" (305x330mm)
Regulation FCC (DoC) Class B
CE (DoC) Class B
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S7100 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
I/O Shield (1) I/O Shield
Cable SATA (2) SATA signal cables
