| Processor |
|
Q'ty / Socket Type |
(1) LGA3647 |
|
Supported CPU Series |
Intel Xeon Scalable Processor |
|
Thermal Design Power (TDP) Wattage |
Max up to 205W |
| Chipset |
|
PCH |
Intel C621 |
| Memory |
|
Supported DIMM Qty |
(12) DIMM slots |
|
DIMM Type / Speed |
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 |
|
Capacity |
Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR |
|
Memory channel |
6 Channels |
|
Memory voltage |
1.2V |
| Expansion Slots |
|
PCI-E |
(1) PCI-E Gen3 x16 slot |
|
Others: |
(1) PCI-E Gen3 x8 OCP 2.0 slots (conn.A+conn.B) |
| LAN |
|
Q'ty / Port |
(1) PHY |
|
PHY |
Realtek RTL8211E |
| Storage |
SATA |
Connector |
(2) Mini-SAS HD (8-ports) |
| Controller |
Intel C621 |
| Speed |
6.0 Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| sSATA |
Connector |
(2) SATA-DOM / (1) Mini-SAS HD (4-ports) |
| Controller |
Intel C621 |
| Speed |
6.0 Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| Graphic |
|
Connector type |
D-Sub 15-pin |
|
Resolution |
Up to 1920x1200 |
|
Chipset |
Aspeed AST2500 |
| Input /Output |
|
Others |
(1) ID button |
|
USB |
(5) USB3.0 ports (2 at rear, 2 via cable, Type-A) |
|
COM |
(1) DB-9 COM Connector (at rear, COM1) + (1) Header (COM2) |
|
VGA |
(1) D-Sub 15-pin VGA port (at rear) |
|
RJ-45 |
(1) GbE port dedicated for IPMI |
|
Audio |
Line-in, Line-out, Mic-in, Surround, Side surround, CEN/LFE at rear |
|
Front Panel |
(1) 2x12-pin SSI front panel header |
|
SATA |
(2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors |
|
Power |
ATX 24-pin + 8-pin power connectors |
| TPM (Optional) |
|
TPM Support |
Please refer to our TPM supported list. |
| System Monitoring |
|
Chipset |
Aspeed AST2500 |
|
Fan |
Total (6) 4-pin headers |
|
Temperature |
Monitors temperature for CPU & memory & system environment |
|
Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
|
LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
|
Others |
Watchdog timer support |
| Server Management |
|
Onboard Chipset |
Onboard Aspeed AST2500 |
|
AST2500 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
|
AST2500 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
|
Brand / ROM size |
AMI / 32MB |
|
Feature |
Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 |
| Physical Dimension |
|
Form Factor |
SSI CEB |
|
Board Dimension |
12"x10.9" (305x276.86mm) |
| Regulation |
|
FCC (DoC) |
Class A |
|
CE (DoC) |
Class A |
| Operating Environment |
|
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
|
Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
|
In/Non-operating Humidity |
90%, non-condensing at 35° C |
| RoHS |
|
RoHS 6/6 Compliant |
Yes |
| Operating System |
|
OS supported list |
Please refer to our AVL support lists. |
| Package Contains |
|
Motherboard |

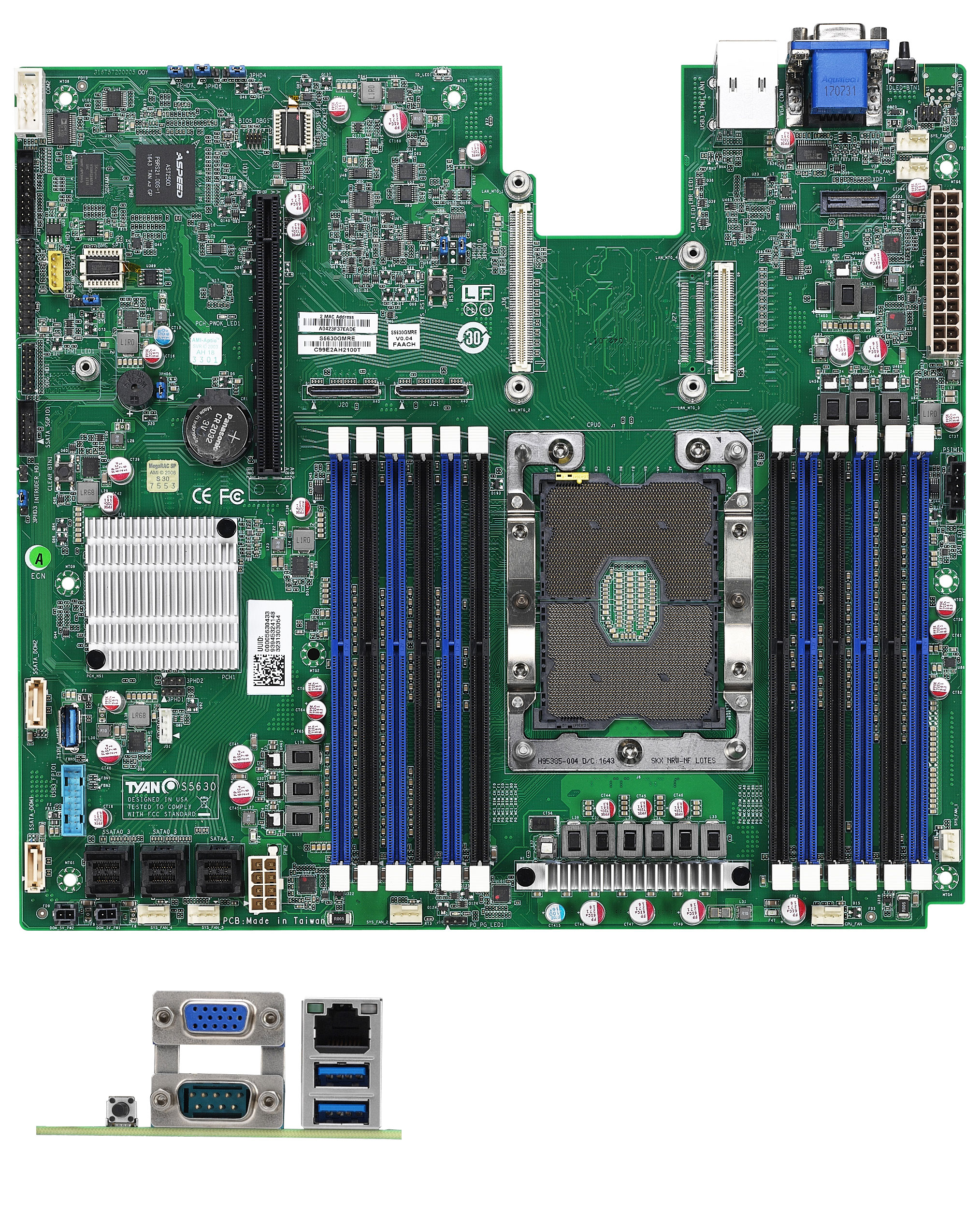

(1) S5630 Motherboard |
|
Manual |
(1) Quick Installation Guide |
|
Installation CD |
(1) TYAN Device Driver CD |
