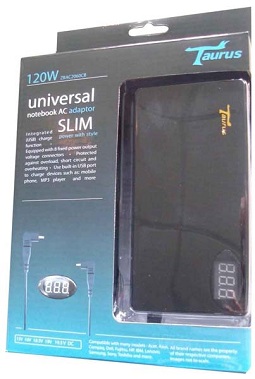

Model: ZBAC2060CB

1. General Description:
This model is an AVI switching-mode power supply for Laptop .This model operation at AC to DC input 110-240V 50-60Hz, Output DC Seven voltages: 12V TO 20V 6Amp max 22V TO 24V output current 5Amp max, output power 120 Watt max, with protection functions: Overload protection, Short Circuit Protection, power supply by mains supply. With 8 selectable tip connector support majority of the laptop available in the market. Explain: 18V display for 18v & 18.5V, 19V display for 19v & 19.5V.

2. Electric Characteristics:

AC: Rated Input Voltage (47-63Hz) AC110V OR AC230V
AC: Vibration Input Voltage Range (50-60Hz) AC100V-240V

AC: Input Rated Current 2.1Amp
AC: Input Power 150VA

Output power (max) 120 W
AC: Efficiency >80%(TYP)

Output Station & voltage±2%: DC12V-24V
15V HG1(6.3×3.0)
16V HG2(6.0×4.3) & HG3(5.5×2.5)
18.5V HG4(4.8×1.7)
19V HG5(5.5×2.5) HG6(5.5×2.1) & HG7(5.0×3.3)
USB port：5V（±5%） USB port:5V

Output Current:
6 Amp MAX (12V TO 20V) rating load±5%@ typical+0.8V DC12V-20V@6Amp
5 Amp MAX (22V TO 24V) rating load±5%@ typical+0.8V 22V-24V@5AMP
(no USB port output）
USB port: 5V@2Amp MAX

AC: Overload protection YES
AC: Short Circuit Protection YES
AC: Over voltage protection YES
Line Regulation ±2%
Load Regulation ±5%

3. Weight：340g Case Size: 144×70×19.5 (L×W×H)mm
4. Normal Operating Temperature and Humidity:
4.1 Operating Temperature: 0℃ to 40℃
4.2 Humidity: 20% to 80%
5. Storage Temperature and Humidity:
5.1 Storage Temperature: -10℃ to 70℃
5.2 Humidity: 10% to 90%
