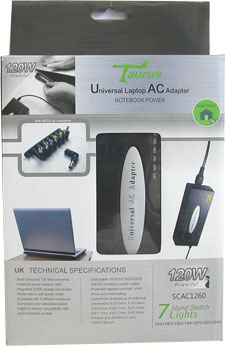

Model: SCAC1260
120W Universal AC Power Adapter

Overview

This Model is a switching-mode power supply, operation at input DC voltage 12V to 15V and output DC voltage of 15V/16V/18V/19V/20V/22V/24V DC, output current 5Amp max , output power 120watt max. With 8PCS tip connector to suit to almost Laptops, select output voltage to suit to Laptop and make sure to select a correct connector before use. With many protection functions use for the notebook computer, power supply by 12V car battery.

No.	Item	Specification
1.	Rated Input Voltage	DC12V
1.	Vibration Input Voltage Range	DC12V-15V
2.	Input Rated Current	14Amp max
2.	Input Min. Current	100mA
3.	Input Power	140W
	output Power	120W
	Efficiency	>88%(TYP)
4.	Output voltage:15V/16V/18V/19V/20V/22V/24V (0-0.8V no load) USB port: 5V (0~+0.8V NO LOAD)	DC15V-24V
5.	Output voltage: 15V/16V/18V/19V/20V/22V/24V (rating load±5%typical±0.8V) Output current: 15V/16V/18V/19V/20V@6Amp max 22V/24V@5Amp max USB port: 5V (rating load 5V-5.5V) 2A Max	DC15V-24V@5Amp max USB OUTPUT: 5V 2A
6.	Short Circuit Protection	yes
7.	Output low voltage protection:10V	yes
8.	Line Regulation	±5%
9.	Load Regulation	±5%

Pin Head Tips:
6.0 × 1.0mm Black (Fujitsu siemens, Sony)
5.5 × 2.5mm White (Compaq, Acer, Dell)
6.3 × 3.0mm Green (Fujitsu siemens, Toshiba)
5.5 × 2.1mm Blue (Acer)
5.5 × 1.7mm Yellow (Acer, Compaq)
4.8 × 1.7mm Yellow (HP, Asus, NEC)
4.0 × 1.7mm Yellow (LCD Display)
5.0 × 1.0mm Yellow (Samsung)
