Model: SC9048 90W

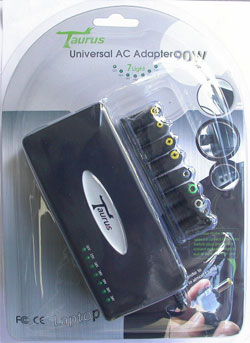

90W AC ADAPTER
Overview
This model is an universal switching-mode power supply for Laptop, operation at input AC 100V to 240V47-63Hz, Output: USB port: 5V@1A max. DC 7 voltages: 12V/15V/16V/18V/19V/20V/24V@4.5Amp max, output power 90 Watt max, with protection functions: Overload protection, Short Circuit Protection, power supply by mains supply. With 8PCS tip connector to suit to almost Laptops, Select output voltage to suit to Laptop and make sure to select a corrector before use.

No.

Item

Specification

1.

Rated Input Voltage(50-60Hz)

AC120V OR AC230V

Vibration Input Voltage Range(47-63Hz)

AC100V-240V

2.

Input Rated Current

1.8AMP

Input Power

150VA

3.

Output power(max)

90W

Efficiency

>80%(TYP)

4.

Output voltage: 12V/15V/16V/18V/19V/20V/24V (0/+0.8V NO LOAD)
USB port: 5V (0~+0.8V NO LOAD)

DC12V-24V
USB port: 5V

5

Output voltage:
12V/15V/16V/18V/19V/20V/24V(-0.6/+0.6V@rating load)
Output current: 12V/15V/16V/18V/19V/20V@4.5A MAX
24V@90W MAX (no USB port output)
2 USB ports: 1A MAX@5V

DC12V-24V
4.5AMP(max)
USB port: 5V 1A

6.

Overload protection

Yes

7.

Short Circuit Protection

Yes

8.

Line Regulation

+/-5%

9.

Load Regulation

+/-5%

Pin Head Tips:
6.0x1.0mm Black (Fujitsu siemens, Sony)
5.5x2.5mm White (Compaq, Acer, Dell)
6.3x3.0mm Green (Fujitsu siemens, Toshiba)
5.5x2.1mm Blue (Acer)
5.5x1.7mm Yellow (Acer, Compaq)
4.8x1.7mm Yellow (HP, Asus, NEC)
4.0x1.7mm Yellow (LCD Display)
5.0x1.0mm Yellow (Samsung)
