Model: 90W DC/DC board

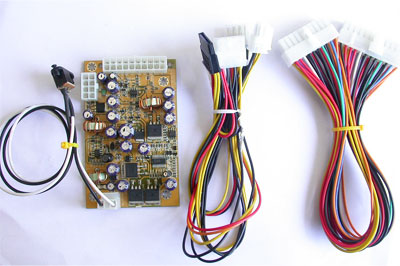

90W DC/DC KIT |
| |
Overview
|
* Input voltage: 11.4 ~ 12.6V DC
* +3.3V DC output: 0.1A min, 7.0A max.
* +5V DC output: 1.0A min, 7.0A max.
*+12V DC output: 0.5A min, 2.0A max.
* -12V DC output: 0.1A max.
* +5Vsb DC output: 1.0A max.
* +5V / +3.3V combined output power: 50W max.
* Over-voltage protection on +3.3V, +5V, +12V
* Short circuit protection
* Over-power protection
* MTBF: 150k hours @ full load @ 25°C
* Dimensions (WxHxD): 104 x 64 x 15mm
* Cable included with 20-pin ATX, 4-pin ATX12V, 4-pin device x2 and FDD power
|
|
|
