Products
|
Model: PDB142R

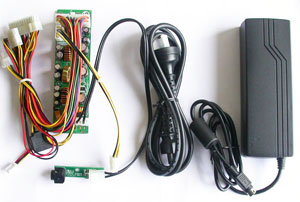

142W POWER KIT |
Overview
|
| Model No.: |
PDB142R |
| Maximum Output: |
142.5W |
| Current: |
50A @110V; 100A @220V |
| Input Voltage: |
100V ~ 240V |
| Safety: |
UL, CUL, TUV, PSE, CE |
| Over Voltage Protection |
120~140% of rated output voltage.
The output voltage shall be shutdown and latched when OVP occurred. |
| Over Current Protection |
140% Max of rated output current.
The adapter can withstand continuous short at DC output and no damage.
It will enter into normal condition if the fault condition is removed. |
| Operating Temperature: |
0 ~ 40 C |
Maximum Output ( W ):
| Output Voltage ( V ) |
5VSB |
+3.3V |
+5V |
+12V |
-12V |
| Output Current ( A ) |
3.00 |
5.00 |
8.00 |
8.00 |
0.20 |
| Power Output ( W ) |
15.00 |
16.50 |
40.00 |
96.00 |
2.40 |
|
|
|
