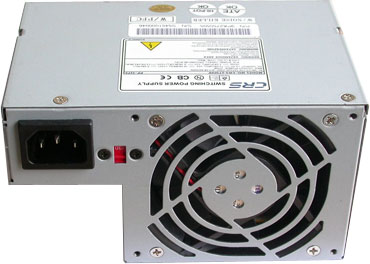

Model: BTX-275
275W BTX Power Supply
Dimensions (L × W × H): 95 × 150 × 86mm
Overview
Power Supply Unit
Model No.: CRS 1275
Features: PFC (Power Factor Correction)
Over-voltage protection
Over-current protection
Short-circuit protection
Auto fan control
Techinal specifications Operating temperature range: 10° ~ 50° Celsius
operating humidity : up to 90%
Storage temperature range: -20° ~ +65° Celsius
Storage humidity: up to 95%
MTBF: > 100k hours @ 25° Celsius @ full load
Efficiency: min. 70% @ full load (H)
Intput : Input voltage: 95 ~ 132V AC / 190~264V AC
Frequency: 47 ~ 63Hz
Input current: 6A RMS max @ 115V AC @ 60Hz / 3A RMS max @ 230V AC @ 50Hz
Standby input power: max. 1W @ 115V AC, 60Hz / 230V AC, 50Hz @ a load of 0.5W on +5Vsb
+3.3V min. 0.5A, max. 13A
+5V min. 0.3A, max. 14.5A
+12V1 min. 1A, max. 5A
+12V2 min. 1A, max. 13.5A
-12V max. 0.3A
+5Vstandby max. 2A
+5V & +3,3V max. 110W combined
Safety and quality approvals: UL, CSA, TUV, CE
Total : 275W
Connector Configuration
Connector
20 + 4 pin ATX main power cable

4 pin ATX plus 12 volt power cable

SATA power cable
Quantity 1 1 1
Connector
4 pin peripheral power cable

Floppy drive power cable

Quantity 4 1
