| Model: |

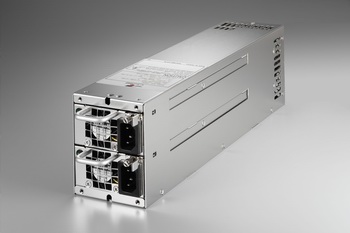

R2G-5600V |
| Output Wattage: |
600W × 2 units |
| Dimension: |
(D × W × H) 276x101x82mm |
|
|
| AC Input Spec. |
VOLTAGE： 90～264VAC FULL RANGE
FREQUENCY： 47～63HZ
INPUT CURRENT：9A/4A (115 / 230 VAC) POWER MODULE
INRUSH CURRENT：35/70A MAX. FOR 115/230 VAC POWER MODULE |
| DC Output Spec. |
| Output VoltageTD |
Output Current Min. |
Output Current Max. |
Regulation Load |
Regulation Line |
Output Ripple & Noise Max.[P-P] |
| +5V |
0.5 |
25 |
±5% |
±1% |
50mV |
| +12V |
2 |
47 |
±5% |
±1% |
120mV |
| -12V |
0.2 |
0.8 |
±10% |
±1% |
150mV |
| +3.3V |
0.5 |
25 |
±5% |
±1% |
50mV |
| +5VSB |
0.1 |
3.5 |
±5% |
±1% |
50mV |
|
|
| Features |
- TEMPERATURE RANGE：OPERATING 0℃～40℃, OPERATING TEMPERATURE: -20℃~80℃
- HOLD UP TIME：16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE
- DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 60 SECOND INPUT TO FRAME GROUND 1500 VAC FOR 60 SECOND
- EFFICIENCY：TYPICAL >80% AT 115VAC, 20%~100% MAX LOAD
- POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS
- OVER POWER PROTECTION：110% ~ 180%
- OVER VOLTAGE PROTECTION：+5V→5.9V～6.7V、+12V→13.0V～15.0V、+3.3V→3.9V～4.3V SHORT
- SHORT CIRCUIT PROTECTION：+5V, +3.3V, +12V, -12V, AUTO-RECOVERED: +5VSB
- OVER CURRENT PROTECTION: +3.3V: 27.5~37.5A, +5V: 27.5~37.5A, +12V: 51.7~70.5A
- EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
- SAFETY: TO MEET UL, CUL, TUV, CCC
- REMOTE ON/OFF CONTROL
- THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STANDBY).
AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE， AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE.
- N+1 REDUNDANCY FUNCTION
- HOT-SWAPPABLE FUNCTION
- CURRENT/BALANCE LOAD SHARING DESIGN
- +3.3V REMOTE SENSING
- ISOLATION: BUILT-IN IN POWER MODULE
- POWER FACTOR CORRENTION: ACTIVE (MEET IEC-1000-3-2)
- COOLING: 40mm DC FANS (one module)
|
|
