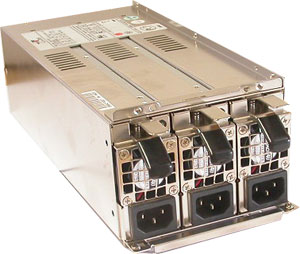

Image for display purposes only
Model: I-STAR 700W redundant
Dimensions: (D × W × H) 280 × 150 × 84mm
AC input: 100~240VAC 47Hz ~ 63Hz
Output wattage: 700w+400W (400w+400w+400w)
  • 700W EPS12V power supply

  • Cooling: by forced air 3 × 40mm DC Ball Bearing Fan

  • On/Off rocker switch, a warning buzzer

  • Temperature Range: Operation 0C~50C

  • HOLD UP TIME: 16ms at maximum load & normal input voltage


  • POWER GOOD SIGNAL: Should be asserted high to indicate that +5VDC and +3.3 VDC output are above the lower voltage thresholds. Compatible signal out with 100ms to 500ms.

  • OVER POWER PROTECTION: The power supply shall shut down when output power exceeds 130 to 160 of full load.

  • OVER VOLTAGE POROTECTION: Standard on +5.0V, set at 6.25VDC +-0.75VDC

  • SHORT CIRCUIT PROTECTION: A short circuit placed between the DC return and the output shall cause no damage and the power supply shall shutdown.

  • EMI: FCC part 15, subpart B, Class B, EN55022 CISPR22.2

  • AGENCY APPROVALS: UL 6950 , CSA C22.2 No. 60950, TUV (IEC60950)

  • REMOTE ON/OFF CONTROL: When PS-ON is pulled to TLL Low, the DC output is to be enabled. When PS-OFF is pulled to TTL high, the DC output is to be disabled.

  • AGENCY APPROVALS: UL6950 , CSA C22.2 No.60950, TUV (IEC60950)

  • MEET IEC-1000-3-2 Class D (active PFC)

Manufacturer ISTAR
Product Power Supply
Model ISTAR 700W
Description EPS 12V
VOLTAGE +5V +12V +3.3V -12V -5V +5Vsb
MAX. LOAD 55A 48A 30A 0.8A 0.3A 2A
REGULATION +-5% +-5% +-0% +-0% +-5% +-5%
RIPPLE(mV) 50 120 50 120 50 50
Package box
