Model: VP7910

Overview

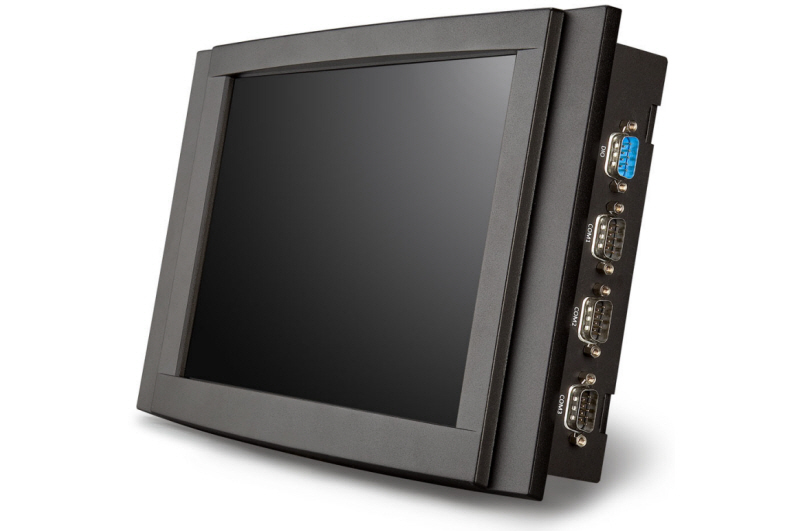

The second generation VIPRO VP7910 is an embedded panel computer with a 10.4" TFT LCD resistive touch screen. Powered by a 1.0 GHz VIA Eden X2 dual core E-Series processor, the VIPRO VP7910 is the ideal solution for applications that require low power consumption, fanless and noise-free operation with multiple IO ports.

The next generation VIPRO VP7910 Fanless Panel PC includes USB 3. 0 connectivity, dual GLAN support as well as two MiniPCIe slots which offer dual SIM card support ideal for reducing roaming charges for transportation applications which travel across regions/borders.

The VIPRO VP7910 features external HDMI and VGA ports that enables dual independent displays and high definition audio ports that makes it ideal for embedded multimedia applications. Storage can be integrated through its internal mSATA socket and 2.5" internal HDD drive bay. It also includes a variety of mounting options for flexible installation.

These features make the VIPRO VP7910 Fanless Panel PC suitable for a wide variety of embedded, multimedia, and industrial HMI (Human Machine Interface) applications including factory automation systems, precision machinery, production process control, terminal information systems, entertainment management systems, and car park automation systems. The VIPRO VP7910 is a reliable, cost-effective solution which greatly reduces application development time.

Specifications
Processor 1.0GHz VIA Eden™ X2.
Memory 1 × DDR3 1066, 204-pin SDRAM SODIMM socket. Supports up to 8GB memory size
Default built-in 2GB DDR3 SODIMM SDRAM, support system operation.
Graphic Integrated Chrome™ 640 graphics processor with 2D/3D/video acceleration, support MPEG-2 and H.264 video decoder.
LCD Display 10.4" Color TFT LCD panel.
Touch Screen 5-wire analog resistive, continuous resolution.
Ethernet Onboard 2 × PCIe Gigabit Ethernet controllers.
HD Audio VIA VT2021 High Definition Audio Codec.
USB 3.0 Integrated universal serial bus controller built-in in VX11 Media System Processor. Supports 2 × USB 3.0 ports
USB 2.0 Integrated universal serial bus controller built-in in VX11 Media System Processor. Supports 2 USB 2.0 host ports. Reserved Onboard 1x5-pin headers, support VIA VNT9271 802.11n WLAN USB Module
Serial Onboard Fintek Super I/O F81865 controller.
GPIO Support 1 × 8-bit GPIO + 5V power source (4GPI+4GPO) via D-Sub 9pin connector.
Mini PCIe slot PCIex1 controller built-in VX11 IGP chipset. Integrated USB 2.0 host controller built-in VX11 Media System Processor.
SIM Slot Support 2 SIM slots.
mSATA Integrated serial ATA 2.0 controller built-in VX11 Media System Processor. Supports 1 × mSATA interface.
Storage 1 × mSATA slot, 1 × SATA port onboard.

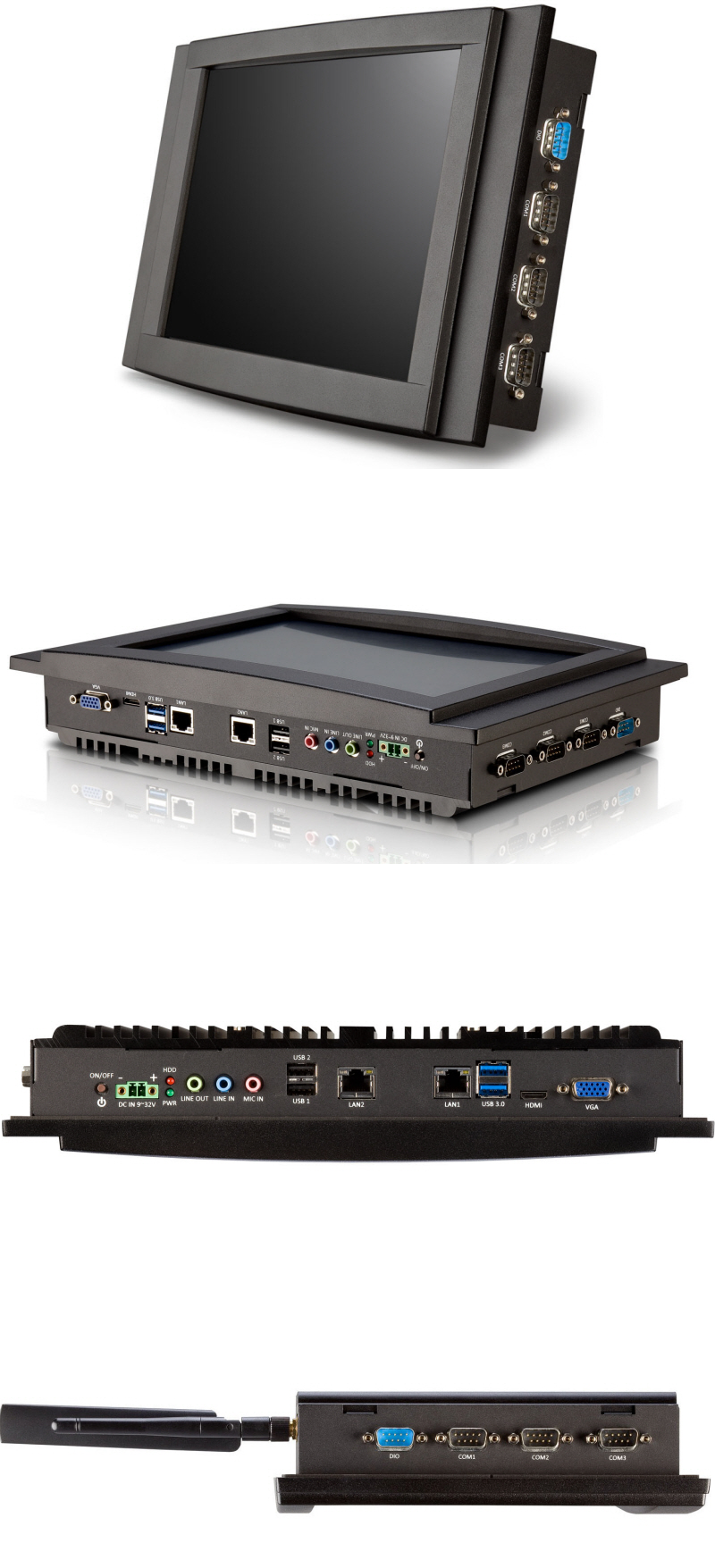

Onboard I/O Coastline Connectors 1 × HDMI Type-C connector
1 × VGA port connector
2 × Gigabit Ethernet connectors
2 × USB 3.0 connectors
2 × USB 2.0 connectors
3 × 3.5Ø Phone Jack connectors as Line-in, Speaker-out, Mic-In
1 × AT/ATX Power On/Off button switch
1 × HDD & PWR LED
1 × DC Power input connector by 2-pole Phoenix connector
Power Supply Typical 29W.
Software Compatibility Windows7, Windows XP Embedded Standard, Windows Embedded Standard 7, Linux Supports VIA Smart EDK.
