Model: HPC150BRH-2930-4G

Overview

1. Intel^® BayTrail-M N2930 SOC
2. Onboard Intel^® BayTrail-M N2930 1.83GHz Quad Cores CPU
3. Onboard SAMSUNG 4G/1333MHz DDR3L Memory
4. Support DirectX 11 3D Graphics Acceleration
5. Support 1 × Serial ATAII (3Gb/s) Devices
6. Support Dual Intel^® Gigabit LAN
7. Support CRT Output
8. Equipped with 802.11 b/g/n WIFI card & External Antenna
9. Support 6 × COM ports (COM2/COM3 Support RS422/485)
10. Support 2.5” SATA HDD
11. Support 1 × M-SATA Socket
12. Support 1 × Mini PCI‐E Socket
13. Support 3 × USB2.0 Ports
14. Support 1 × USB3.0 Port
15. Support 3G SIM Card
16. 54mm thin,slice design
17. VESA mount (100mm × 100mm & 75mm × 75mm)

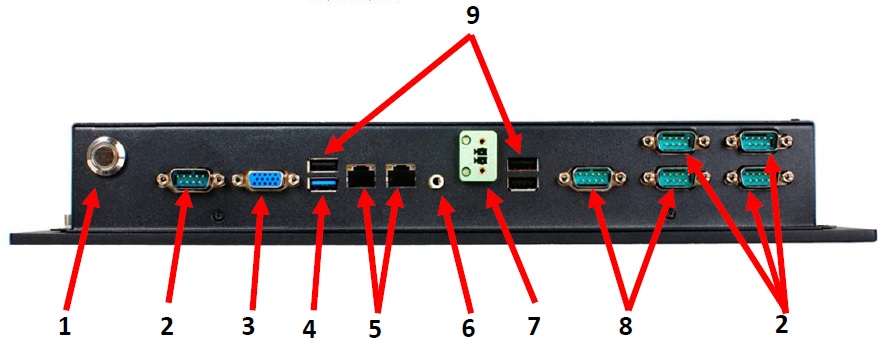

Indicator

1. Power Button
2. COM for RS232
3. CRT
4. USB3.0
5. LAN
6. Line-out
7. DC-Jack(Euro terminal block)
8. COM RS232/422/485
9. USB2.0

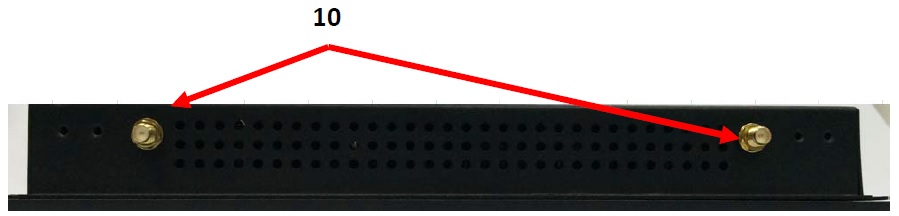

10. WI-FI antenna

Specifications
Panel	Panel	AUO G150XTN06.0
	Viewable Size Image	15 inch With LED Backlight
	Active Area	304.1 (H) × 228.1 (V)
	Resolution	1024 × 768 @60Hz
	Display Color	262K
	Pixel Pitch	0.297 × 0.297 mm
	Aspect Ratio	4:3
	Contrast Ratio	800:1
	Max Brightness	450 cd/m²
	Viewing Angle(H/V)	H160/V150
	Response Time	5.7ms
	Temperature Range	‐30 ~ +85℃ (Operating)
Touch	Touch panel type	5 wires analog resistive
	Active Range	304.1 × 228.1mm ±0.2mm
	Temperature Range	‐10 ~ +60℃ (Operating)
	Transparency	80 ± 3%
	Surface Hardness	≧ 3H (ASTM D3363, pressure 750g/45°)
	Operating Force	≦ 80g
	Knock test	10,000,000 times keystrokes
Case	Panel Material	Aluminum
	Case Material	Iron
	Color	Black
	Coating Requirement	Spray Paint
	Protection grade (IP)	IP65
	Speaker	2-CH(3W)
	Bracket	6 (Top:2pcs, Side:4pcs, Optional)

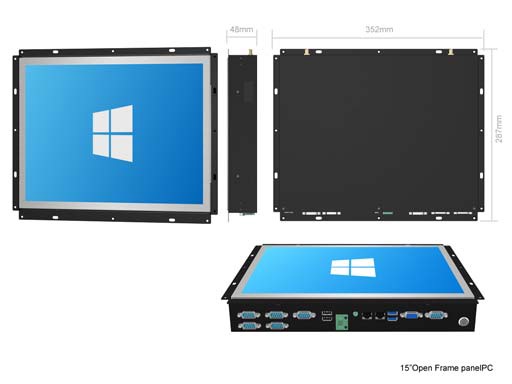

	Installation Type	Open Frame / Wall Hanging (Optional)
	Cooling Mode	Fan less Fully sealed design
System Specification	Form Factor	4"
	Processor	Intel^® BayTrail-M N2930 1.83GHz/QC
	System Chipset	Intel^® BayTrail-M N2930 (SOC)
	System Memory	4G/1333MHz DDR3L SAMSUNG DRAM
	BIOS	64MB SPI Flash ROM
	Ethernet	2 × Intel^® I211AT Gigabit LAN
	Audio	Realtek^® ALC887 HD Audio
	Storage	1 × Serial ATA2 3Gb/s connector 1 × M‐SATA connector
	WIFI Module	N/A (Optional)
	Expansion	PCI‐E mini card for WLAN
	Display Output	CRT
	I.O Port	1 × USB3.0, 3 × USB2.0, 1 × RS232, 2 × RS232/422/485, 1 × Line‐out
	Power Adapter	DC‐IN (9~24V, Euro terminal block)
	OS Support	Windows 7 / 8 / 8.1
	Temperature	Operating: ‐10 ~ +60℃
	Humidity	20% ~ 90% (non condensing)
	Shock	Operating: 15G, 11ms duration
	Vibration	Operating: 5 ~ 500Hz/1 Grms

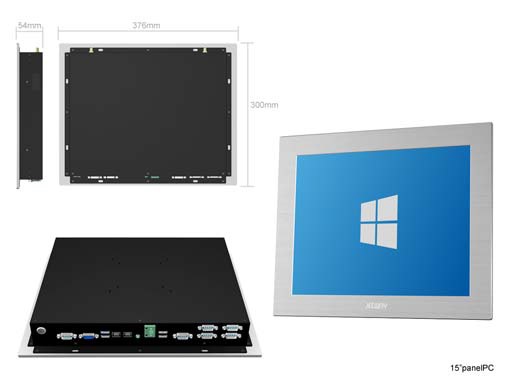

	Dimension	376mm × 300mm × 54mm
	Certification	FCC CE IP65
	Other	Support Non wire I.O interface output
Other Information	Application	Commercial, Banking, Digital Signage, POS/KIOSK, Industrial Automation
	Special Features	Metal design, compact, slick
	Other	Optional wall hanging telescopic bracket, etc., can also be used as the embedded security
