Model: HPC104BR-2930-4G

Overview
1. Intel® BayTrail-M N2930 SOC
2. Onboard Intel® BayTrail-M N2930 1.83GHz Quad Cores CPU
3. Onboard SAMSUNG 4G/1333MHz DDR3L Memory
4. Support DirectX 11 3D Graphics Acceleration
5. Support 1 × Serial ATAII (3Gb/s) Devices
6. Support Dual Intel® Gigabit LAN
7. Support CRT Output
8. Equipped with 802.11 b/g/n WIFI card & External Antenna
9. Support 3 × COM ports (COM2/COM3 Support RS422/485)
10. Support 2.5” SATA HDD
11. Support 1 × M-SATA Socket
12. Support 1 × Mini PCI‐E Socket
13. Support 3 × USB2.0 Ports
14. Support 1 × USB3.0 Port
15. Support 3G SIM Card
16. 37mm thin,slice design
17. VESA mount (100mm × 100mm & 75mm × 75mm)

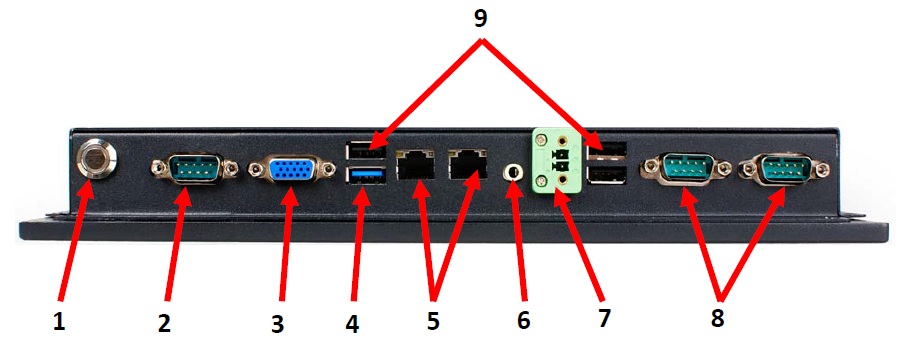

Indicator


1. Power Button
2. COM for RS232
3. CRT
4. USB3.0
5. LAN 1 0
6. Line-out
7. DC-Jack(Euro terminal block)
8. COM RS232/422/485
9. USB2.0

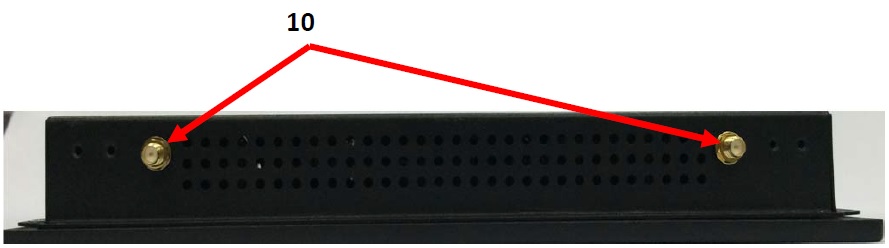

10. WI-FI antenna

Specifications
Panel Panel Spec AUO G104STN01.0
Viewable Size Image 10.4 inch With LED Backlight
Active Area 211.2 (H) × 158.4 (V)
Resolution 800 × 600 @60Hz
Display Color 262K
Pixel Pitch 0.264 × 0.264 mm
Aspect Ratio 4:3
Contrast Ratio 700:1
Max Brightness 400 cd/m²
Viewing Angle(H/V) H160/V130
Response Time 10ms
Temperature Range ‐30 ~ +80℃ (Operating)
Touch Touch panel type 5 wires analog resistive
Active Range 211.58 × 158.75mm ±0.2mm
Temperature Range ‐10 ~ +60℃ (Operating)
Transparency 80 ± 3%
Surface Hardness ≧ 3H (ASTM D3363, pressure 750g/45°)
Operating Force ≦ 80g
Knock test 10,000,000 times keystrokes
Case Panel Material Aluminum
Case Material Iron
Color Black
Coating Requirement Spray Paint
Protection grade (IP) IP65
Speaker N/A
Bracket 6 (Top:2pcs, Side:4pcs, Optional)

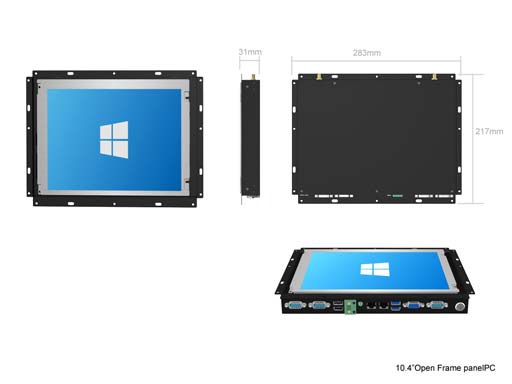

Installation Type Open Frame / Wall Hanging (Optional)
Cooling Mode Fan less Fully sealed design
System Specification Form Factor 4"
Processor Intel® BayTrail-M N2930 1.83GHz/QC
System Chipset Intel® BayTrail-M N2930 (SOC)
System Memory 4G/1333MHz DDR3L SAMSUNG DRAM
BIOS 64MB SPI Flash ROM
Ethernet 2 × Intel® I211AT Gigabit LAN
Audio Realtek® ALC887 HD Audio
Storage 1 × Serial ATA2 3Gb/s connector
1 × M‐SATA connector
WIFI Module N/A (Optional)
Expansion PCI‐E mini card for WLAN
Display Output CRT
I.O Port 1 × USB3.0, 3 × USB2.0, 1 × RS232,
2 × RS232/422/485, 1 × Line‐out
Power Adapter DC‐IN (9~24V, Euro terminal block)
OS Support Windows 7 / 8 / 8.1
Temperature Operating: ‐10 ~ +60℃
Humidity 20% ~ 90% (non condensing)
Shock Operating: 15G, 11ms duration
Vibration Operating: 5 ~ 500Hz/1 Grms

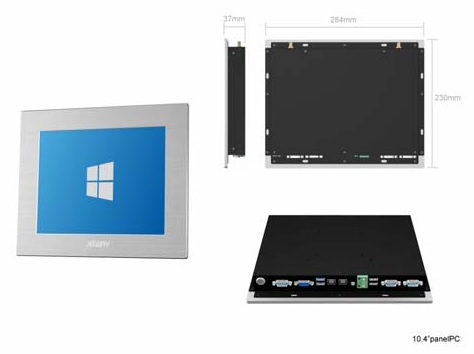

Dimension 284.0mm × 230.0mm × 37.0mm
Certification FCC CE IP65
Other Support Non wire I.O interface output
Other Information Application Commercial, Banking, Digital Signage, POS/KIOSK, Industrial Automation
Special Features Metal design, compact, slick
Other Optional wall hanging telescopic bracket, etc., can also be used as the embedded security
