Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® Q170, 2 HDMI, 1 DisplayPort, 4 GbE LANs, 6 USB 3.0, Dual PCI Express Mini Card Slots and Wide Range DC-in

Overview

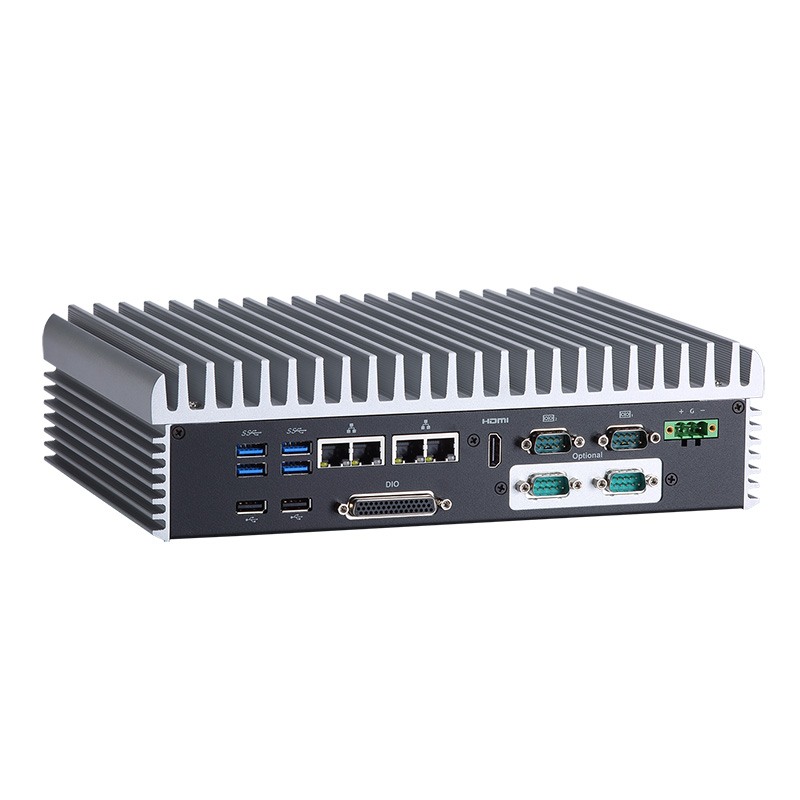

The eBOX670-891-FL supports the 7th/6th generation Intel® Core™ i7/i5/i3 and Celeron® processors with flexible I/O configurations. This outstanding embedded box PC is equipped with dual DDR4-2133 SO-DIMM slots with system memory up to 32 GB. The eBOX670-891-FL provides high flexibility with reserved I/O module space on the rear side. The embedded system integrator can expand the system quickly and easily by installing suitable I/O modules. The fanless embedded box computer features wireless communication capabilities with two internal PCI Express Mini Card slots and one SIM card slot. Four Gigabit Ethernet ports are for customers who need mass data transmission or LAN port teaming functions for each virtual machine. For storage needs, it is equipped with one easy-access CFast™ socket, one mSATA interface, and dual 2.5” SATA hard drive bays with RAID 0&1 support.



CPU
  • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35 W)
Chipset
  • Intel® Q170
System Memory
  • 2 x 260-pin SO-DIMM DDR4-2133, up to 32 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (onboard)
  • 2 x RS-232/422/485 (via cable on flexible IO window)
USB
  • 6 x USB 3.0
  • 2 x USB 2.0
Ethernet/PoE
  • 4 x 10/100/1000 Mbps (Intel® i210IT, i219LM)
Display
  • 2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b)
  • 1 x DisplayPort
Digital I/O
  • 32-channel programmable DI/DO
Audio
  • Mic-in/Line-out
Storage
  • 2 x 2.5" SATA HDD with RAID 0&1 (Max. up to 15 mm height)
  • 1 x CFast™
  • 1 x mSATA
Expansion
  • 2 x Full-size PCI Express Mini Card (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x flexible IO window (default : 2 x COM)
  • 4 x SMA type connector opening for antenna
  • 1 x phoenix type VDC power input connector
  • 1 x ATX power switch
  • 1 x Remote power switch
  • 1 x AT/ATX quick switch
  • 1 x Reset button
Power Supply
  • 9 - 36VDC
Watchdog Timer
  • 255 levels, 1 ~255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C ~ +60°C (-40°F ~ +140°F) (with W.T. DRAM/SSD for Skylake)
  • -40°C ~ +55°C (-40°F ~ +131°F) (with W.T. DRAM/SSD for Kaby Lake)
Relative Humidity
  • 10% ~ 95% , non-condensing
Vibration
  • 3 Grms with CFast™ (5 - 500 Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 280 x 190 x 76 mm (11.02” x 7.48” x 2.99”)
Weight (net/gross)
  • 3.8 kg (8.37 lb)/ 4.6 kg (10.14 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • WE8S, Win 10 IoT, Linux
Mounting
  • Wall mount
  • DIN-rail
