Fanless Edge System with NVIDIA® JETSON™ TX2, 1 HDMI 2.0, 2 GbE LANs and 1 USB 2.0

Overview

The eBOX560-900-FL employs a NVIDIA Jetson™ TX2 module which has a powerful 64-bit ARM A57 processor; a 256 CUDA cores with NVIDIA® Pascal™ GPU Architecture; 8GB of LPDDR4 memory; and 802.11ac Wi-Fi with Bluetooth. It also supports NVIDIA JetPack 3.2 SDK including TensorRT, cuDNN, CUDA Toolkit, VisionWorks, GStreamer, and OpenCV, all built on top of L4T with LTS Linux kernel. The extremely compact system is your superb choices for AI, deep learning, and edge computing. Its tough construction is IP40-rated, and it has an extended operating temperature range of -10°C to 50°C (14°F to 122°F) and up to 3G vibration endurance.



CPU
  • CPU Board: NVIDIA® JETSON™ TX2
  • CPU: HMP Dual Denver 2/2 MB L2 + Quad ARM® A57/2 MB L2
  • GPU: NVIDIA® Pascal™, 256 CUDA cores
Chipset
  • SoC integrated
System Memory
  • 8GB 128-bit LPDDR4 @ 1866 MHz
BIOS
  • N/A
COM
  • N/A
USB
  • 1 x USB 2.0
Ethernet/PoE
  • 2 x 10/100/1000 Mbps Ethernet (NVIDIA® + Intel® I210-IT)
Display
  • 1 x HDMI 2.0 w/ 4K2K supported
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • Onboard 32GB eMMC (via JETSON™ TX2)
  • 1 x M.2 2280 M-Key with PCIe 2.0 x4 for NVMe SSD (optional)
Expansion
  • 1 x full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
  • *Either mini PCIe connector or LAN Intel® I210-IT (Jumper Select)
Others

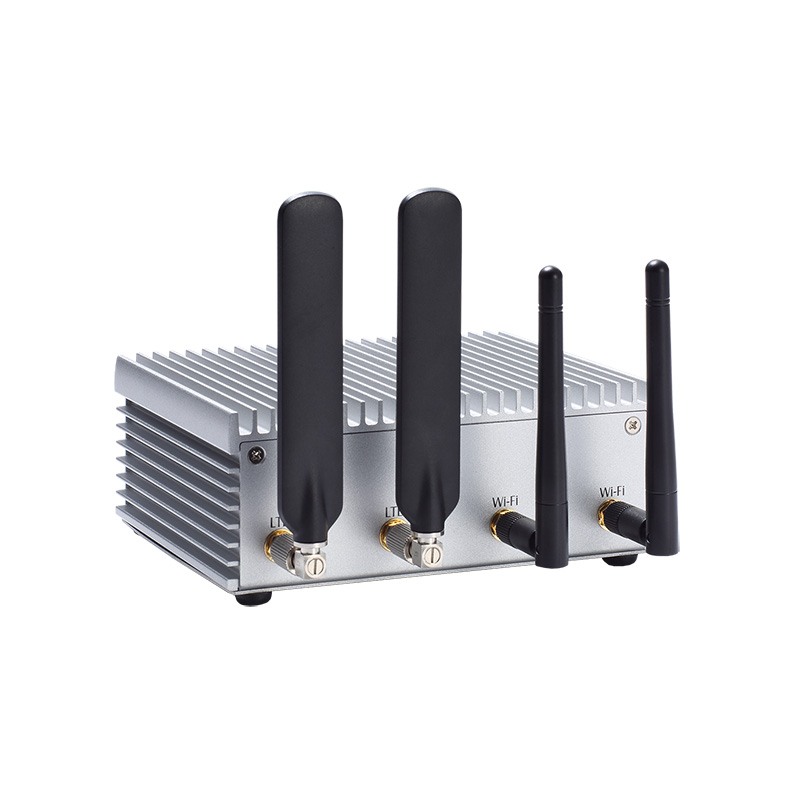

  • 802.11ac WLAN, Bluetooth w/ Antennas

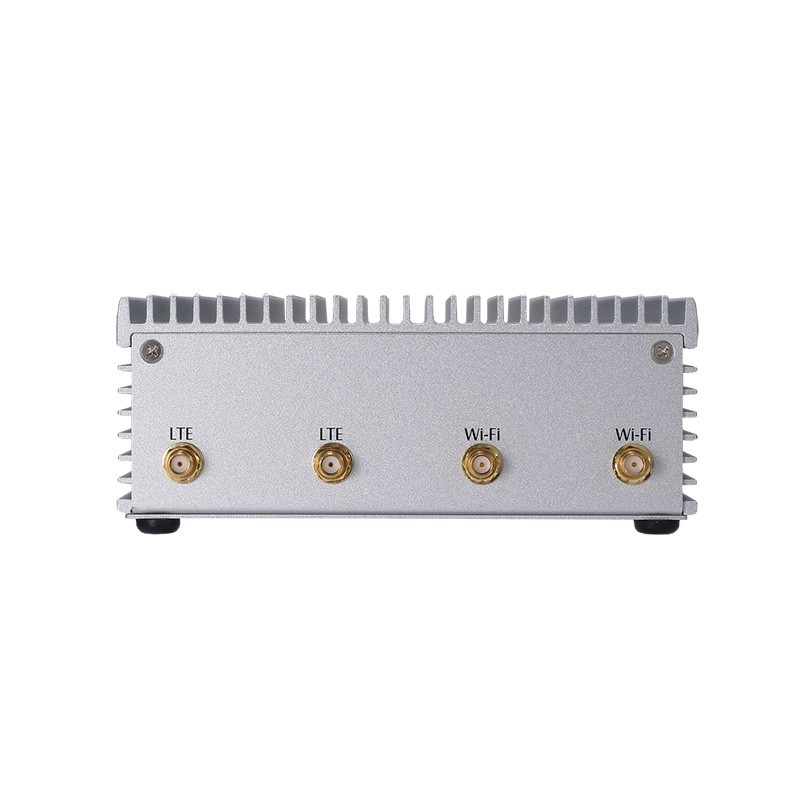

  • 4 x SMA type connector opening for antenna
Power Supply
  • 12 VDC screw type
Watchdog Timer
  • Support the watchdog timer embedded in NVIDIA® Jetson™ TX2
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -30°C ~ +60°C (-22°F ~ +140°F)
Relative Humidity
  • 10% ~ 95%, non-condensing
Vibration
  • 3 Grms w/ M.2 (5 ~ 500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 141.6 x 106 x 55 mm (5.57" x 4.17" x 2.17")
Weight (net/gross)
  • 0.8 kg (1.76 lb)/1.5 kg (3.31 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Linux Ubuntu 16.04
Mounting
  • Wall mount kit
  • VESA arm kit
  • DIN-rail kit
