Fanless Embedded System with Intel® Core™ i5-7300U & Celeron® 3965U, 2 HDMI, 2 GbE LANs, 4 USB 3.0 and PCI Express Mini Card Slot

Overview

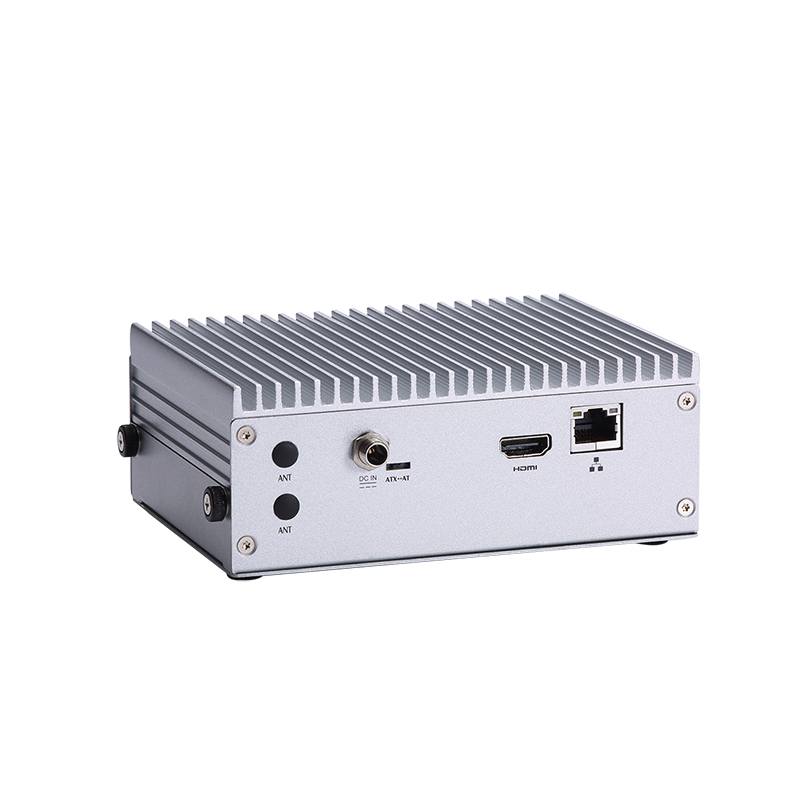

The eBOX560-512-FL is powered by the Intel® Core™ i5-7300U or Celeron® 3965U processor. To enhance system efficiency, the embedded box PC supports one 260-pin DDR4-2133 SO-DIMM socket with up to 16 GB system memory. Two HDMI ports with up to 4K resolution are supported for dual independent display applications. The palm-sized fanless embedded system is dedicated to smart factory automation, thin clients, industrial controller system, digital signage and retail equipment. Axiomtek's eBOX560-512-FL was designed to operate reliably in industrial and embedded application environments. It is enclosed in an IP40-rated heavy-duty aluminum extrusion and steel enclosure and offers a wide operating temperature range from -10°C ~ +50°C (+14°F ~ +122°F) and up to 3G vibration endurance.



CPU
  • Intel® Core™ i5-7300U 3.5 GHz/Celeron® 3965U 2.2 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin SO-DIMM DDR4-2133, up to 16GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 4 x USB 3.0
Ethernet/PoE
  • 2 x 10/100/1000 Mbps (Intel® i210AT, i219LM)
Display
  • 2 x HDMI
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5” SATA HDD drive bay (max. up 9.5 mm height)
  • 1 x mSATA (enabled in BIOS setting)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
Others
  • 2 x SMA type connector opening for antenna
  • 1 x AT/ATX quick switch
  • 1 x ATX power switch
  • 1 x Reset button
Power Supply
  • 12 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F) (with W.T. DRAM/SSD)
Relative Humidity
  • 10% to 90%, non-condensing
Vibration
  • 3 Grms with SSD (5 ~ 500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 141.6 x 106 x 54.85 mm (5.57" x 4.17" x 2.15")
Weight (net/gross)
  • 0.8 kg (1.76 lb)/1.67 kg (3.68 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Win 10 IoT, Linux
Mounting
  • Wall mount
  • Din-rail
  • VESA mount
